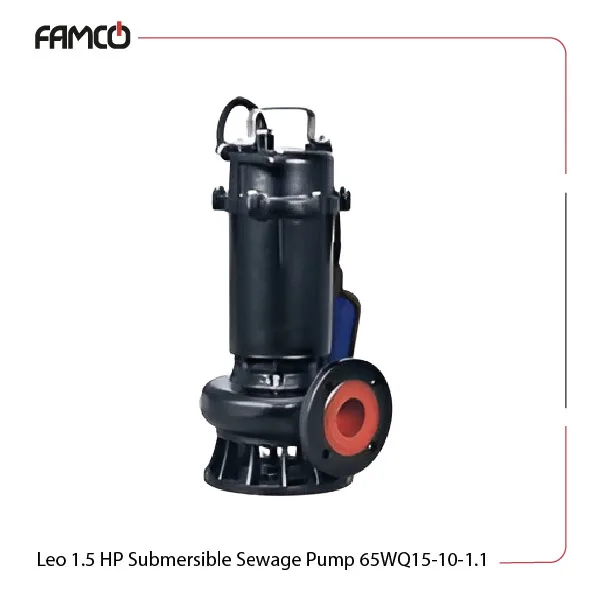

Leo 1.5 HP Submersible Sewage Pump 65WQ15-10-1.1

1.1 kW (1.5 HP)

Single- or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Leo 1.5 HP Submersible Sewage Pump 65WQ15-10-1.1

The 65WQ15-10-1.1 high-performance pump has impressive specifications for various industrial and agricultural uses. The pump’s ability to handle significant immersion depths reaching 25 meters and up to 28 m3/h flow rates makes it suitable for draining, irrigation, and other fluid transfer tasks. This pumping solution can withstand harsh conditions thanks to its build, while the copper winding and advanced sealing technology contribute to its longevity and effectiveness. Whether you need to move water on a construction site or manage irrigation in agriculture, this pump is designed to meet your needs. This model is provided in both single- or three-phase versions.

Leo 1.5 HP Submersible Sewage Pump 65WQ15-10-1.1 (single-phase)

Leo 1.5 HP Submersible Sewage Pump 65WQ15-10-1.1 (three-phase)

Related Products

Leo 1.5 HP Submersible Sewage Pump 65WQ15-10-1.1 Specifications

This product is designed to perform in various applications. This Leo pump can handle a maximum immersion depth of 25 meters and operates efficiently at a liquid temperature of up to +40°C. This series of Leo submersible pumps is suitable for liquids with a pH value ranging from 5 to 9 at different environments. With a power output of 1.1 kW (1.5 HP), this sewage pump delivers a maximum head of 15 meters and a flow rate of 28 m³/h. The motor runs at a speed of 3000 rpm. The winding is made of copper, which enhances durability and efficiency. Additionally, this pump features an insulation class of B and a protection degree of IP68 to increase safety and reliability in wet conditions. The mechanical seal is constructed from Sic-Sic/Carbon-Ceramic, which induces excellent sealing performance and longevity.

Leo 1.5 HP Submersible Sewage Pump 65WQ15-10-1.1

Specification Value
Max. immersion depth (m) 25
Liquid temperature (℃) +40
Frequency 50Hz
Liquid PH value 5-9
Insulation class B
Protection degree IP68
Power (kW) 1.1
Power (HP) 1.5
Max. head (m) 15
Max. flow rate (m3/h) 28
Speed (rpm) 3000
Three-phase voltage (V) 380
Single-phase voltage (V) 220

Leo 1.5 HP Submersible Sewage Pump 65WQ15-10-1.1 Materials

  • Winding: copper
  • Mechanical seal: Sic-Sic/Carbon-Ceramic



Leo 1.5 HP Submersible Sewage Pump 65WQ15-10-1.1 Applications

  • Irrigation systems
  • Construction site dewatering
  • Industrial fluid transfer
  • Aquaculture water management



Leo 1.5 HP Submersible Sewage Pump 65WQ15-10-1.1 Benefits

  • High efficiency with a flow rate of 28 m³/h
  • Durable copper winding for long-lasting performance
  • IP68 protection for reliable operation in wet environments
  • Versatile use across various applications and industries



Leo 1.5 HP Submersible Sewage Pump 65WQ15-10-1.1 Price List

No. Name Price
1 Leo 1.5 HP Submersible Sewage Pump 65WQ15-10-1.1 Price Contact us
