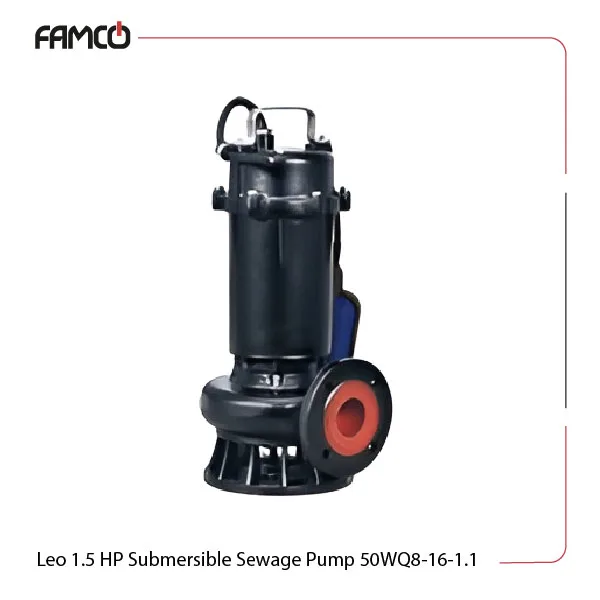

Leo 1.5 HP Submersible Sewage Pump 50WQ8-16-1.1 Specifications
This product is designed for high-performance applications, featuring a maximum immersion depth of 25 meters. This pump, much like other Leo pumps, has a high liquid temperature tolerance of up to 40 degrees Celsius. This sewage pump operates at a frequency of 50Hz and is suitable for liquids with a pH value ranging from 5 to 9. The winding is made of durable copper with efficient energy transfer. With an insulation class of B, this Leo submersible pump provides reliable protection against electrical hazards. The product has an IP68 protection degree, making it resistant to dust and water ingress. It delivers a power output of 1.1 kW (1.5 HP) and can achieve a maximum head of 19 meters, with a flow rate of 25 m³/h. The motor speed is rated at 3000 rpm, and it can operate on both three-phase (380V) and single-phase (220V) voltage systems. The mechanical seal is constructed from Sic-Sic/Carbon-Ceramic materials, so it stays durable in various operating conditions.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | 40 |
| Frequency (Hz) | 50 |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Max. head (m) | 19 |
| Max. flow rate (m3/h) | 25 |
| Speed (rpm) | 3000 |
| Three-phase voltage (V) | 380 |
| Single-phase voltage (V) | 220 |
Leo 1.5 HP Submersible Sewage Pump 50WQ8-16-1.1 Materials
- Mechanical seal: Sic-Sic/Carbon-Ceramic
- Winding: copper
Leo 1.5 HP Submersible Sewage Pump 50WQ8-16-1.1 Applications
- Irrigation systems
- Industrial water transfer
- Drainage solutions
- Aquaculture management
Leo 1.5 HP Submersible Sewage Pump 50WQ8-16-1.1 Benefits
- High efficiency with a maximum flow rate of 25 m³/h
- Durable copper winding for long-lasting performance
- IP68 rating ensures protection against water and dust
- Versatile voltage options for easy integration into existing systems
Leo 1.5 HP Submersible Sewage Pump 50WQ8-16-1.1 Price List
| No. | Name | Price |
| 1 | Leo 1.5 HP Submersible Sewage Pump 50WQ8-16-1.1 Price | Contact us |
