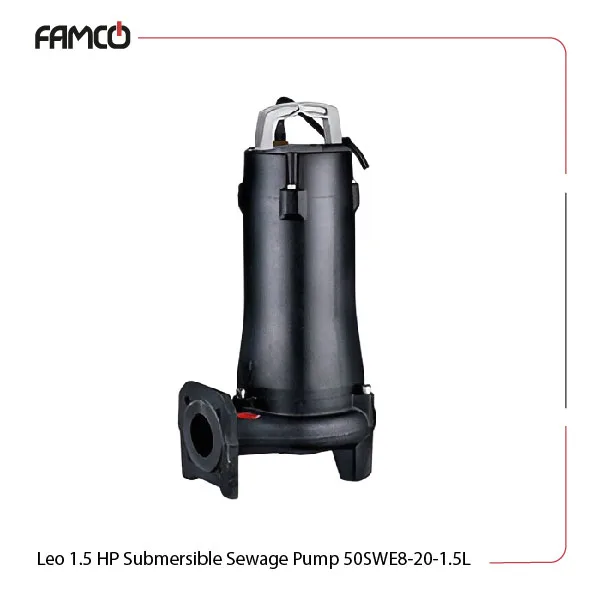

Leo 1.5 HP Submersible Sewage Pump 50SWE8-20-1.5L Specifications
This product is designed to handle liquids with a temperature range of 0 to 40 degrees Celsius and a pH value between 4 and 10. This Leo sewage pump can be immersed up to 5 meters deep. Operating at a frequency of 50Hz, this Leo pump features a two-pole motor with an insulation class of F. The protection class is IPX8, so it remains durable in wet conditions. A power output of 2 HP (1.5 kW) enables this pump to boast a flow rate of 25 m3/h and a maximum head of 22 meters. This series of submersible pumps can handle solids up to 15 mm in diameter. As for the materials, both the motor body and impeller are made from HT200, while the upper mechanical seal is constructed from Sic/Carbon and the lower seal from Sic.
| Specification | Value |
| Liquid temperature | 0-40℃ |
| Liquid PH value | 4 – 10 |
| Max. Immersion depth | 5 m |
| Frequency | 50Hz |
| Pole number | 2 |
| Insulation class | F |
| Protection Class | IPX8 |
| Power (HP) | 2 |
| Power (kW) | 1.5 |
| Flow rate (m3/h) | 25 |
| Max. head (m) | 22 |
| Max. solids diameter (mm) | 15 |
Leo 1.5 HP Submersible Sewage Pump 50SWE8-20-1.5L Materials
- Motor body: HT200
- Impeller: HT200
- Upper mechanical seal: Sic/Carbon
- Lower mechanical seal: Sic

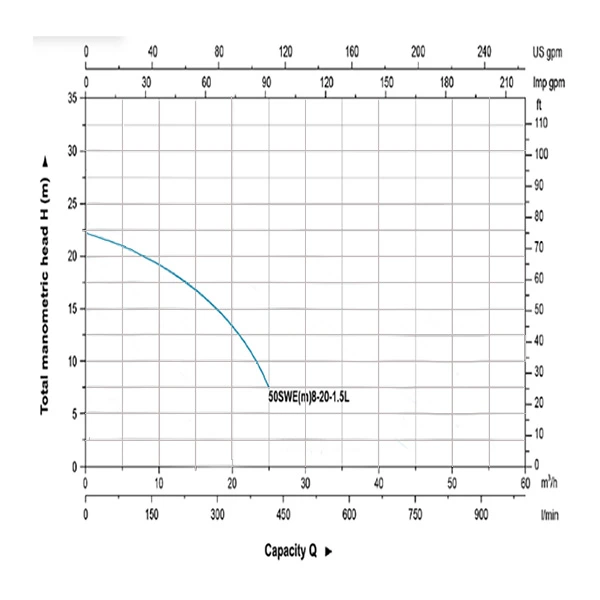

Leo 1.5 HP Submersible Sewage Pump 50SWE8-20-1.5L Performance Curve
Leo 1.5 HP Submersible Sewage Pump 50SWE8-20-1.5L Applications
- Irrigation systems for agriculture
- Industrial liquid transfer
- Drainage in construction sites
- Water features and fountains
Leo 1.5 HP Submersible Sewage Pump 50SWE8-20-1.5L Benefits
- High flow rate for efficient operation
- Durable construction for long-lasting use
- Versatile for various liquid types
- Safe operation in submerged conditions
Leo 1.5 HP Submersible Sewage Pump 50SWE8-20-1.5L Price List
| No. | Name | Price |
| 1 | Leo 1.5 HP Submersible Sewage Pump 50SWE8-20-1.5L Price | Contact us |
