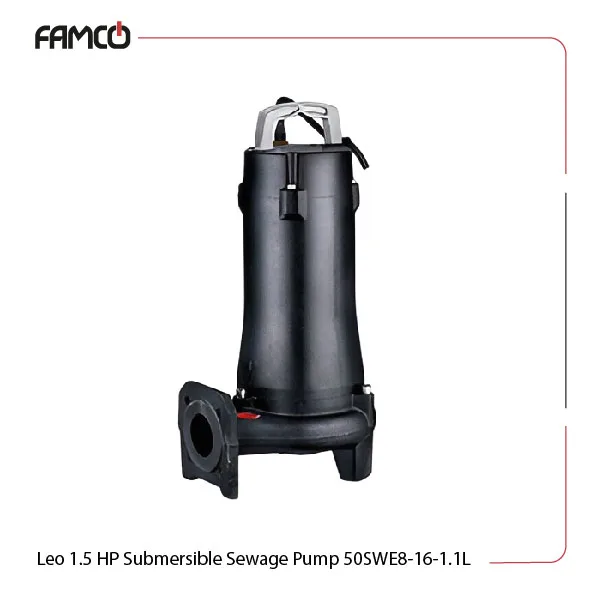

Leo 1.5 HP Submersible Sewage Pump 50SWE8-16-1.1L

1.1 kW (1.5 HP)

Single- or three-phase

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Leo 1.5 HP Submersible Sewage Pump 50SWE8-16-1.1L

This powerful 1.5 HP pump is built to transfer liquids in various environments. Its maximum immersion depth of 5 meters helps it excel in applications requiring reliable performance. Its powerful construction and high flow rate make it ideal for both residential and industrial use. The pump’s ability to handle solids up to 15 mm adds to its versatility, so it is suitable for a range of tasks. Whether you need to drain water, manage wastewater, or facilitate irrigation, this pump is a dependable choice. This model is provided in both single- or three-phase versions.

Leo 1.5 HP Submersible Sewage Pump 50SWE8-16-1.1L (single-phase)

Leo 1.5 HP Submersible Sewage Pump 50SWE8-16-1.1L (three-phase)

Related Products

Leo 1.5 HP Submersible Sewage Pump 50SWE8-16-1.1L Specifications

This product is designed to handle liquids with a temperature range of 0 to 40 degrees Celsius and a pH value between 4 and 10. This Leo pump can be immersed up to a depth of 5 meters, making it suitable for various applications. The product’s motor operates at a frequency of 50Hz and has two poles. An insulation class of F ensures durability and safety. The protection class is IPX8, which means it is fully protected against water ingress. The power output is 1.5 HP or 1.1 kW, so it provides a flow rate of 26 m3/h. This series of Leo submersible pumps achieve noticeable heights and this one has a maximum head of 19 meters. It also handles solids up to 15 mm in diameter. The motor and impeller are made from HT200, which gives these sewage pumps the required strength and reliability. The upper mechanical seal is constructed from Sic/Carbon, while the lower seal is made from Sic, enhancing the product’s longevity.

Leo 1.5 HP Submersible Sewage Pump 50SWE8-16-1.1L

Specification Value
Liquid temperature 0-40℃
Liquid PH value 4 – 10
Max. Immersion depth 5 m
Frequency 50Hz
Pole number 2
Insulation class F
Protection Class IPX8
Power (HP) 1.5
Power (kW) 1.1
Flow rate (m3/h) 26
Max. head (m) 19
Max. solids diameter (mm) 15

Leo 1.5 HP Submersible Sewage Pump 50SWE8-16-1.1L Materials

  • Motor body: HT200
  • Impeller: HT200
  • Upper mechanical seal: Sic/Carbon
  • Lower mechanical seal: Sic

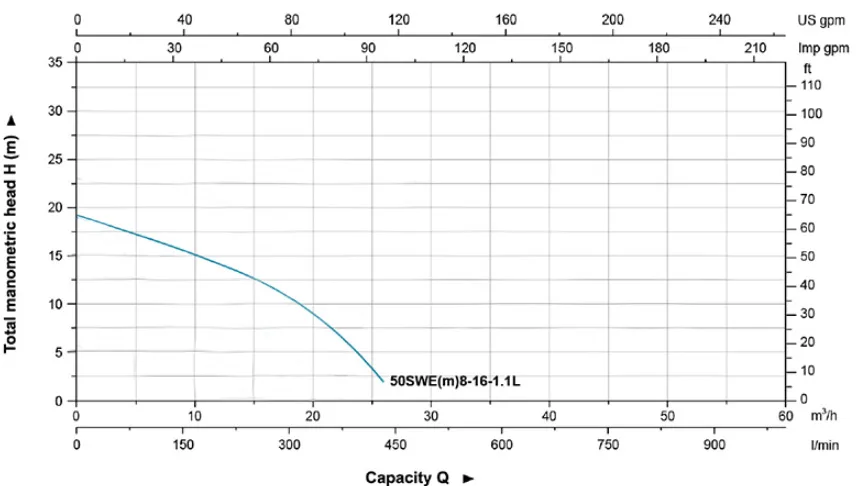

Leo 1.5 HP Submersible Sewage Pump 50SWE8-16-1.1L Performance Curve

Leo 1.5 HP Submersible Sewage Pump 50SWE8-16-1.1L Performance Curve

Leo 1.5 HP Submersible Sewage Pump 50SWE8-16-1.1L Applications

  • Water drainage in residential areas
  • Irrigation systems for agriculture
  • Wastewater management in industrial settings
  • Pumping liquids in construction sites



Leo 1.5 HP Submersible Sewage Pump 50SWE8-16-1.1L Benefits

  • High flow rate for efficient liquid transfer
  • Durable construction with HT200 materials
  • IPX8 protection for reliable water resistance
  • Versatile applications across various industries



Leo 1.5 HP Submersible Sewage Pump 50SWE8-16-1.1L Price List

No. Name Price
1 Leo 1.5 HP Submersible Sewage Pump 50SWE8-16-1.1L Price Contact us
Brand

Maximum Liquid Temperature (°C)

Maximum immersion depth (m)

Frequency (Hz)

Number of Poles

Insulation Class

Degree of Protection

Power (HP)

Power (kW)

Maximum Flow Rate (m3/h)

Maximum Delivery Head (m)

Impeller Material

Mechanical Seal

,

Applications

, , ,
