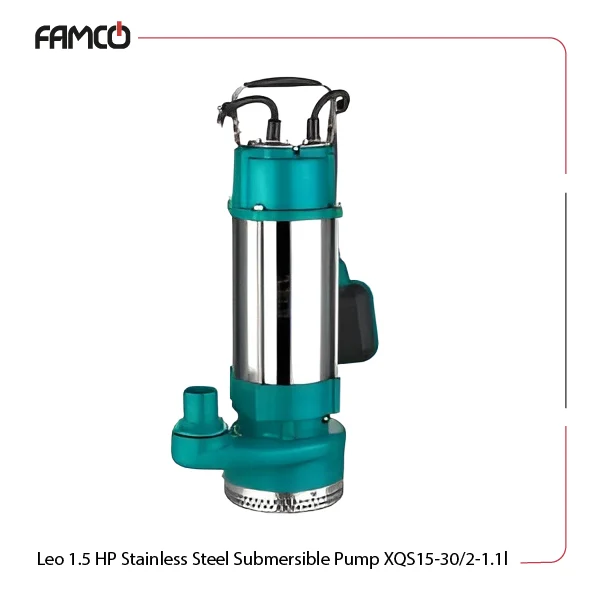

Leo 1.5 HP Stainless Steel Submersible Pump XQS15-30/2-1.1l

1.1 kW (1.5 HP)

Single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Leo Pumps, Leo Submersible Pump

Overview of Leo 1.5 HP Stainless Steel Submersible Pump XQS15-30/2-1.1l

This 1.5 HP pump serves well when put at various applications, including drainage, irrigation, and industrial use. The XQS15-30/2-1.1l pump’s ability to operate at significant 5-meter depths and above 40℃ temperatures has made it suitable for both residential and commercial settings. Its solid construction and reliable components can efficiently handle different types of liquids. Its stainless steel parts ensure longevity, while the IP68 rating guarantees protection against water ingress. This pump is a dependable solution for fluid movement.

Leo 1.5 HP Stainless Steel Submersible Pump XQS15-30/2-1.1l Specifications

This pump features a copper winding and insulation class B, ensuring durability and efficiency. It has an IP68 protection class, making this Leo stainless steel submersible pump suitable for underwater use. The shaft is made of welded stainless steel, while the pump body is made from HT200 to provide strength and resistance to corrosion. It can be immersed up to 5 meters and handle liquid temperatures up to +40℃. The liquid pH range is between 6.5 and 8, making it versatile for various applications. The handle is also made of stainless steel for added durability. The mechanical seal consists of carbon and ceramic materials to enhance its reliability. The impeller and motor cover are both made from HT200. It operates on a voltage of 220V/50Hz, with a maximum flow rate of 250 liters per minute and a maximum head of 30 meters. The XQS15-30/2-1.1l Leo pump weighs 23.3 kg and has a power output of 1.5 HP (1.1 kW).

Specification	Value
Insulation class	B
Protection class	IP68
Max. immersion depth	5m
Max. liquid temperature	+40℃
Liquid pH value	6.5-8
Voltage (V/Hz)	220/50
Max. flow (l/min)	250
Max. head (m)	30
Power (HP)	1.5
Power (kW)	1.1

Leo 1.5 HP Stainless Steel Submersible Pump XQS15-30/2-1.1l Materials

Pump body: Cast iron, HT200
Handle: Stainless Steel
Mechanical Seal: Carbon/Ceramic
Impeller: HT200
Motor Cover: HT200
Winding: Copper
Shaft: welded stainless steel
Pump body: Cast iron, HT200

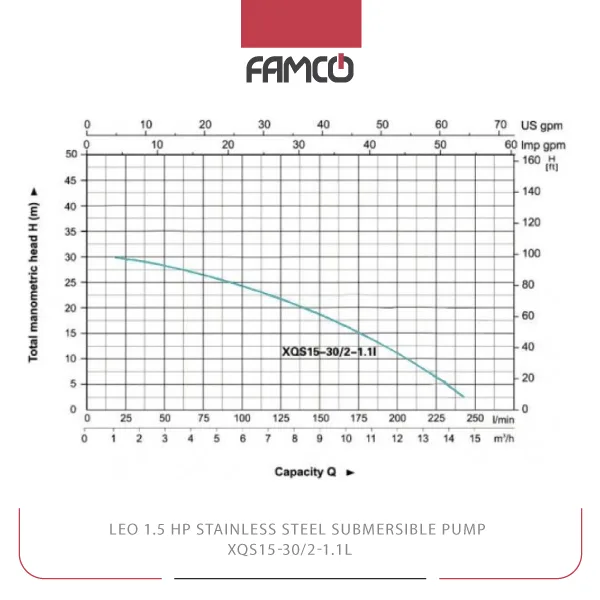

Leo 1.5 HP Stainless Steel Submersible Pump XQS15-30/2-1.1l Performance Curve

Leo 1.5 HP Stainless Steel Submersible Pump XQS15-30/2-1.1l Applications

Irrigation systems for agriculture
Drainage in construction sites
Water transfer in industrial processes
Sump pumping in residential areas

Leo 1.5 HP Stainless Steel Submersible Pump XQS15-30/2-1.1l Benefits

Durable construction with stainless steel components
High efficiency with a maximum flow rate of 250 l/min
Versatile for various liquid types and pH levels
Reliable performance with a strong mechanical seal

Leo 1.5 HP Stainless Steel Submersible Pump XQS15-30/2-1.1l Price List

No.	Name	Price
1	Leo 1.5 HP Stainless Steel Submersible Pump XQS15-30/2-1.1l Price	Contact us

Brand	Leo
Insulation Class	B
Degree of Protection	IP68
Pump Body	HT200
Maximum immersion depth (m)	5
Maximum Liquid Temperature (°C)	40
Voltage (V)	220
Maximum Flow Rate (L/min)	250
Maximum Delivery Head (m)	30
Power (HP)	1.5
Frequency (Hz)	50
Power (kW)	1.1
