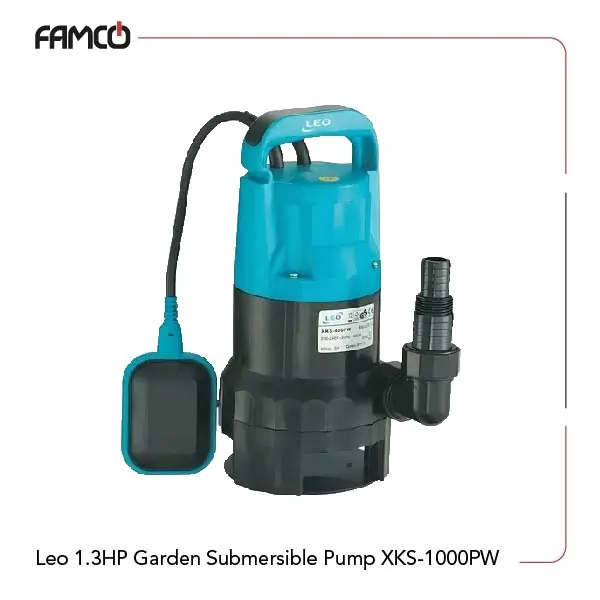

Leo 1.3HP Garden Submersible Pump XKS-1000PW Specifications
Leo 1.3HP garden submersible pump XKS-1000PW features a sturdy engineering plastic body, ensuring durability and resistance to various conditions. This Leo submersible pump can handle liquid temperatures up to +35℃ and has a maximum immersion depth of 7 meters. This pump is designed to manage particles with a diameter of up to 5 mm, which is suitable for various applications. An aluminum winding and an insulation class of F enable it to provide reliable performance. The base plate, body and pump base are made from PP, while the impeller is crafted from PA6, all adding to the product’s lasting performance. This Leo submersible pump operates efficiently at a power of 750 watts, equivalent to 1.3 horsepower, and can achieve a height range of 3 to 10.5 meters.
| Specification | Value |
| Max. Liquid Temperature | +35℃ |
| Max. Immersion Depth | 7 m |
| Max. Diameter of Particle | 5 mm |
| Insulation Class | F |
| Protection Class | IPX8 |
| H (m) | 3-10.5 |
| Power (kW) | 0.75 |
| Power (HP) | 1.3 |
| Voltage (V) | 220 |
| Frequency (Hz) | 50 |
Leo 1.3HP Garden Submersible Pump XKS-1000PW Materials
- Pump Body: Engineering Plastic
- Winding: Aluminum
- Base Plate: PP
- Pump Base: PP
- Pump Body: PP
- Impeller: PA6

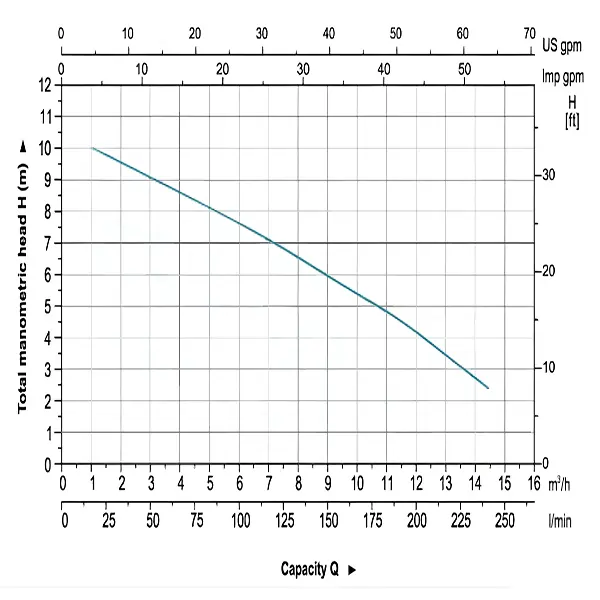

Leo 1.3HP Garden Submersible Pump XKS-1000PW Performance Curve
| Q (m3/h) | 0 | 1.5 | 3 | 4.5 | 6 | 7.5 | 9 | 10.5 | 12 | 13.5 |
| Q (l/min) | 0 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 225 | 225 |
| H (m) | 10.5 | 9.7 | 9 | 8.3 | 7.5 | 6.7 | 5.8 | 5 | 4 | 3 |
Leo 1.3HP Garden Submersible Pump XKS-1000PW Applications
- Water drainage in basements and flooded areas
- Irrigation systems for gardens and farms
- Aquarium water circulation
- Industrial liquid transfer processes
Leo 1.3HP Garden Submersible Pump XKS-1000PW Benefits
- Durable construction with engineering plastic
- Efficient operation with 750 watts of power
- Handles particles up to 5 mm, enhancing versatility
- IPX8 protection ensures safety in wet environments
Leo 1.3HP Garden Submersible Pump XKS-1000PW Price List
| No. | Name | Price |
| 1 | Leo 1.3HP Garden Submersible Pump XKS-1000PW Price | Contact us |
