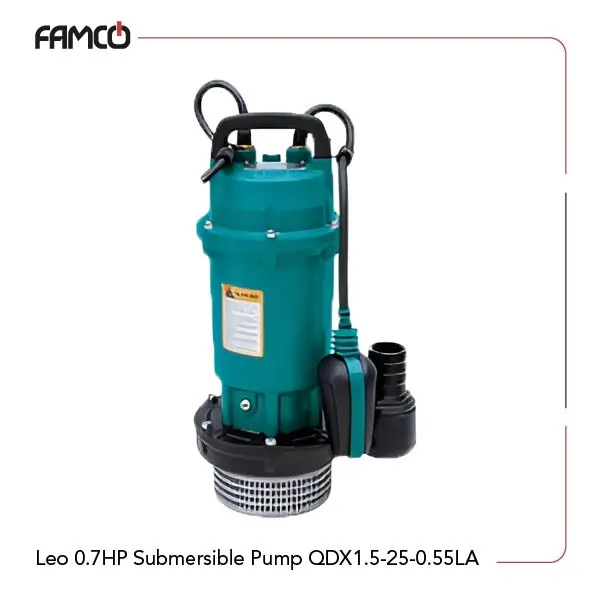

Leo 0.7HP Submersible Pump QDX1.5-25-0.55LA Specifications
Leo 0.7HP submersible pump QDX1.5-25-0.55LA features a sturdy cast iron body, ensuring durability and strength. The motor casing is made from lightweight aluminum to reduce overall weight. Inside, the motor’s winding is crafted from copper for efficient conductivity. The shaft is constructed from durable stainless steel, which is resistant to corrosion. A double-end mechanical seal enhances reliability, while its built-in stainless-steel filter ensures clean operation. The pump can be immersed up to 5 meters deep and handle liquids with a maximum temperature of +40℃. This Leo submersible pump has an insulation class of F, so it operates efficiently in diverse conditions. The pump’s height ranges from 5.5 to 13 meters, and its dimensions are 245 mm in length, with a width of 194 mm, and height of 345 mm. It has a power rating of 0.55 kW, making it a reliable choice for various pumping needs. The pump’s ability to manage different pH levels and suspended solids (around 0.2 mm) have contributed to making it adaptable to many environments. Whether you need to pump clean water or slightly contaminated liquids, this pump is a dependable choice.
| Specification | Value |
| Pump body | cast iron |
| Motor casing | aluminum |
| Winding | copper |
| Shaft | stainless steel |
| Mechanical seal | double-end |
| Filter | stainless steel |
| Max. immersion depth | 5 m |
| Max. liquid temperature | +40℃ |
| Liquid PH level | from 6.5 – 8 |
| Maximum sand content | 0.1% |
| Passage of suspended solids | up to 0.2 mm |
| Insulation class | F |
| H (m) | 5.5-13 |
| Dimensions (mm) | varies |
| L (mm) | 245 |
| W (mm) | 194 |
| H (mm) | 345 |
| Power (kW) | 0.55 |
Leo 0.7HP Submersible Pump QDX1.5-25-0.55LA Performance Data
| Q (m3/h) | 0 | 1.5 | 3 | 4.5 | 6 |
| Q (l/min) | 0 | 25 | 50 | 75 | 100 |
| H (m) | 26.5 | 25 | 22.5 | 18 | 14 |
Leo 0.7HP Submersible Pump QDX1.5-25-0.55LA Applications
- Residential water drainage
- Agricultural irrigation systems
- Industrial liquid transfer
- Construction site dewatering
Leo 0.7HP Submersible Pump QDX1.5-25-0.55LA Benefits
- Durable cast iron body for long-lasting use
- Lightweight aluminum motor casing for easy handling
- Efficient copper winding for better performance
- Stainless steel components for corrosion resistance
Leo 0.7HP Submersible Pump QDX1.5-25-0.55LA Price List
| No. | Name | Price |
| 1 | Leo 0.7HP Submersible Pump QDX1.5-25-0.55LA Price | Contact us |
