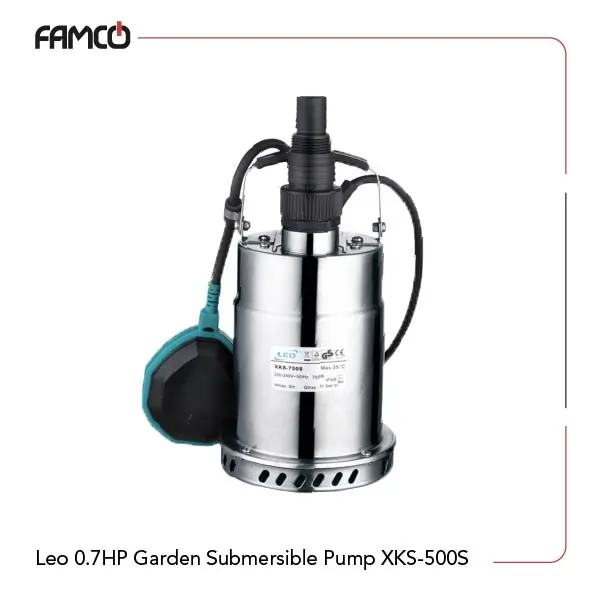

Leo 0.7HP Garden Submersible Pump XKS-500S Specifications
Leo 0.7HP garden submersible pump XKS-500S features a robust engineering plastic body, ensuring durability and resistance to various conditions. It can handle liquids up to +35℃ and has a maximum immersion depth of 7 meters. This Leo submersible pump is designed to manage particles with a diameter of up to 5 mm. Its winding is made of aluminum, providing efficient performance. The insulation class is rated at F, ensuring safety during operation. This pump has a rated protection class of IPX8, which is suitable for continuous immersion in water. The mechanical seal is crafted from carbon and ceramic, enhancing reliability. This Leo submersible pump‘s bodyis made from AISI 304, while the impeller is constructed from PPO. It operates effectively at a height range of 2.5 to 7.5 meters and has a power output of 500 watts (0.7 HP).
| Specification | Value |
| Max. Liquid Temperature | +35℃ |
| Max. Immersion Depth | 7 m |
| Max. Diameter of Particle | 5 mm |
| Insulation Class | F |
| Protection Class | IPX8 |
| H (m) | 2.5-7.5 |
| Power (kW) | 0.5 |
| Power (HP) | 0.7 |
| Voltage (V) | 220 |
| Frequency (Hz) | 50 |
Leo 0.7HP Garden Submersible Pump XKS-500S Materials
- Winding: Aluminum
- Mechanical Seal: Carbon/Ceramic
- Pump Base: AISI 304
- Impeller: PPO
- Pump Body: Engineering Plastic
Leo 0.7HP Garden Submersible Pump XKS-500S Technical Data
| Q (m3/h) | 0 | 2 | 4 | 6 | 8 |
| Q (l/min) | 0 | 33 | 67 | 100 | 133 |
| H (m) | 7.5 | 6.5 | 5.3 | 4 | 2.5 |

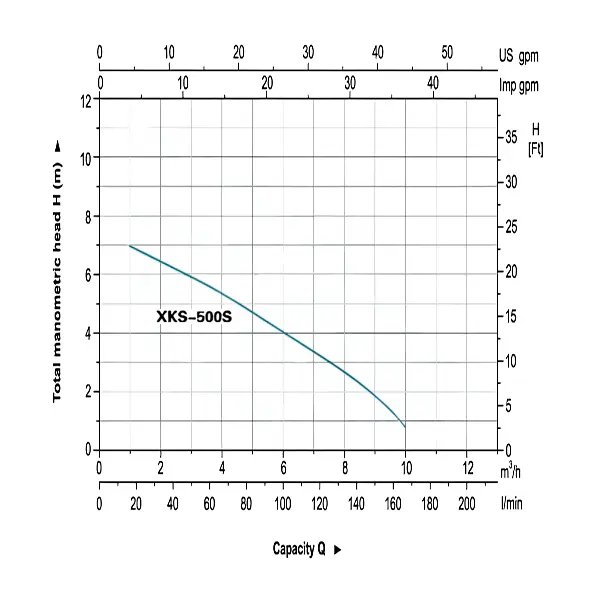

Leo 0.7HP Garden Submersible Pump XKS-500S Performance Curve
Leo 0.7HP Garden Submersible Pump XKS-500S Applications
- Water transfer in residential settings
- Irrigation systems for agriculture
- Aquarium and pond maintenance
- Industrial liquid handling processes
Leo 0.7HP Garden Submersible Pump XKS-500S Benefits
- Durable engineering plastic construction
- Efficient performance with aluminum winding
- Safe operation with IPX8 protection
- Versatile for various liquid transfer needs
Leo 0.7HP Garden Submersible Pump XKS-500S Price List
| No. | Name | Price |
| 1 | Leo 0.7HP Garden Submersible Pump XKS-500S Price | Contact us |
