Leo 0.7HP Garden Submersible Pump XKS-500PW

0.5 kW (0.7HP)

Single-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Category: Submersible Pump Tags: Leo Pumps, Leo Submersible Pump

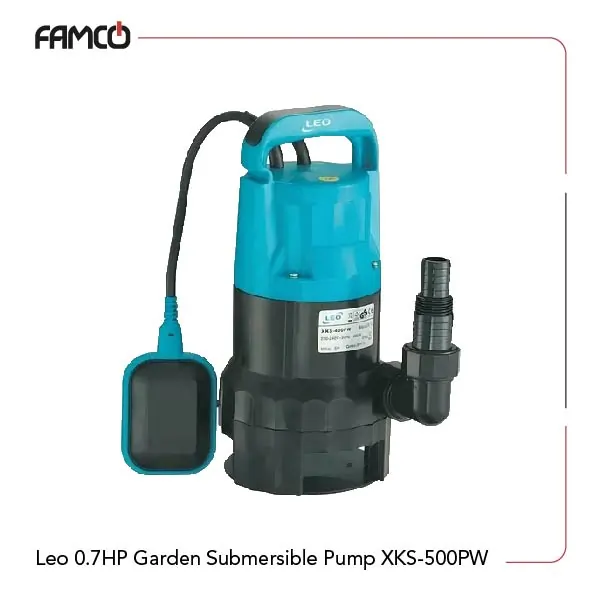

Overview of Leo 0.7HP Garden Submersible Pump XKS-500PW

This versatile pump efficiently transfers liquids in various environments. It handles maximum liquid temperature of +35℃ and functions at a depth immersion reaching 7 meters, so it is suitable for both residential and industrial applications. The pump’s ability to handle particles up to 5 mm ensures that it can manage a range of liquids without clogging. Its powerful construction, featuring an engineering plastic body and aluminum winding, guarantees durability and reliability. Whether you need to drain water from a flooded area or transfer liquids in a garden, this pump is a dependable choice.

Leo 0.7HP Garden Submersible Pump XKS-500PW Specifications

This pump features a powerful engineering plastic body, designed to withstand a maximum liquid temperature of +35℃. It can be immersed up to 7 meters deep, making it suitable for various applications. This Leo submersible pump handles particles up to 5 mm in diameter to enhance efficiency in operation. It is equipped with aluminum winding and has an insulation class of F, providing excellent thermal protection. The protection class is IPX8, which means it is fully protected against water immersion. The base plate and pump base are made from durable PP, while the impeller is crafted from PA6. With a power output of 500 watts (0.7 HP), this pump operates effectively within a head range of 1.5 to 7 meters, making it ideal for various pumping tasks.

Specification	Value
Max. Liquid Temperature	+35℃
Max. Immersion Depth	7 m
Max. Diameter of Particle	5 mm
Insulation Class	F
Protection Class	IPX8
H (m)	1.5-7
Power (kW)	0.5
Power (HP)	0.7
Voltage (V)	220
Frequency (Hz)	50

Leo 0.7HP Garden Submersible Pump XKS-500PW Materials

Pump Body: Engineering Plastic
Winding: Aluminum
Base Plate: PP
Pump Base: PP
Impeller: PA6

Leo 0.7HP Garden Submersible Pump XKS-500PW Technical Data

Q (m3/h)	0	1.5	3	4.5	6	7.5	9	10.5
Q (l/min)	0	25	50	75	100	125	150	175
H (m)	7	6.4	5.7	5.2	4.5	3.5	2.5	1.5

Leo 0.7HP Garden Submersible Pump XKS-500PW Performance Curve

Leo 0.7HP Garden Submersible Pump XKS-500PW Applications

Water drainage in flooded areas
Liquid transfer in industrial settings
Irrigation systems for agriculture
Aquarium water circulation

Leo 0.7HP Garden Submersible Pump XKS-500PW Benefits

Durable construction with engineering plastic
Handles particles up to 5 mm without clogging
Efficient operation with 500 watts of power
Suitable for various applications with a maximum immersion depth of 7 m

Leo 0.7HP Garden Submersible Pump XKS-500PW Price List

No.	Name	Price
1	Leo 0.7HP Garden Submersible Pump XKS-500PW Price	Contact us

Maximum Liquid Temperature (°C)	35
Maximum immersion depth (m)	7
Insulation Class	F
Degree of Protection	IPX8
Power (kW)	0.5
Power (HP)	0.7
Voltage (V)	220
Frequency (Hz)	50
Brand	Leo
