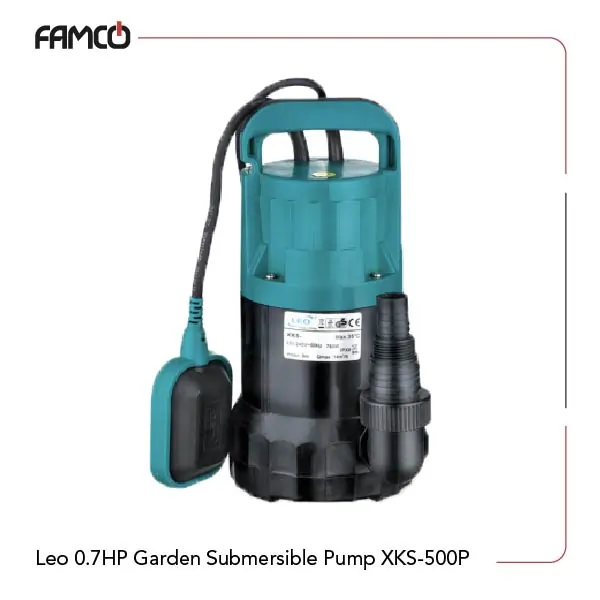

Leo 0.7HP Garden Submersible Pump XKS-500P Specifications
Leo 0.7HP garden submersible pump XKS-500P features a powerful engineering plastic body, ensuring durability and resistance to various liquids. It can handle a maximum liquid temperature of +35℃ and has an impressive immersion depth of up to 7 meters. Designed to manage particles with a diameter of 5 mm, this Leo submersible pump utilizes aluminum winding for efficient performance. The insulation class is rated F, providing reliable protection against overheating. With a protection class of IPX8, this product is suitable for continuous immersion in water. The pump base is made from PP, while the impeller is crafted from PA6, ensuring optimal functionality. It operates effectively within a height range of 2.3 to 7.6 meters and delivers a power output of 0.7 HP or 500 W, making it a powerful choice for various applications.
| Specification | Value |
| Max. liquid temperature | +35℃ |
| Max. immersion depth | 7m |
| Max. diameter of particle | 5 mm |
| Insulation class | F |
| Protection class | IPX8 |
| H (m) | 2.3-7.6 |
| Power (HP) | 0.7 |
| Power (kW) | 0.5 |
| Voltage (V) | 220 |
| Frequency (Hz) | 50 |
Leo 0.7HP Garden Submersible Pump XKS-500P Materials
- pump body: Engineering plastic
- Winding: aluminum
- Pump Base: PP
- Impeller: PA6
Leo 0.7HP Garden Submersible Pump XKS-500P Technical Data
| Q(m³/h) | 0 | 1.5 | 3 | 4.5 | 6 | 7.5 | 9 |
| Q(l/min) | 0 | 25 | 50 | 75 | 100 | 125 | 150 |
| H (m) | 7.6 | 7.6 | 6.8 | 5.7 | 4.7 | 3.6 | 2.3 |

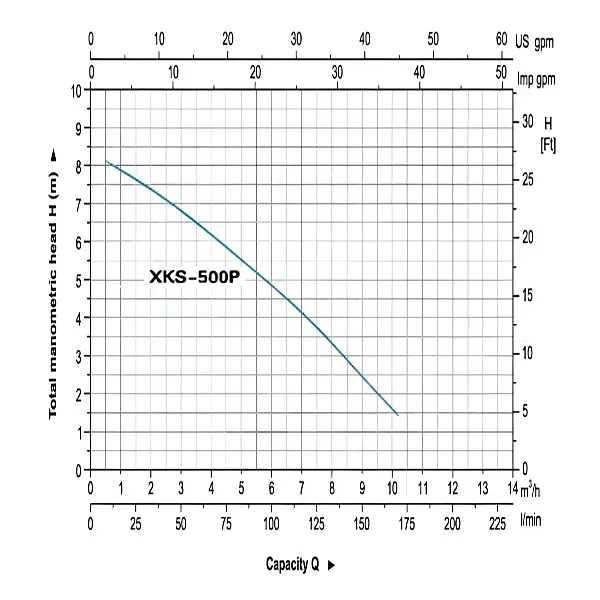

Leo 0.7HP Garden Submersible Pump XKS-500P Performance Curve
Leo 0.7HP Garden Submersible Pump XKS-500P Applications
- Water transfer in residential settings
- Irrigation systems for agriculture
- Aquarium and pond maintenance
- Industrial liquid handling and drainage
Leo 0.7HP Garden Submersible Pump XKS-500P Benefits
- Durable engineering plastic construction
- Efficient performance with aluminum winding
- Safe operation with IPX8 protection
- Versatile for various liquid types and applications
Leo 0.7HP Garden Submersible Pump XKS-500P Price List
| No. | Name | Price |
| 1 | Leo 0.7HP Garden Submersible Pump XKS-500P Price | Contact us |
