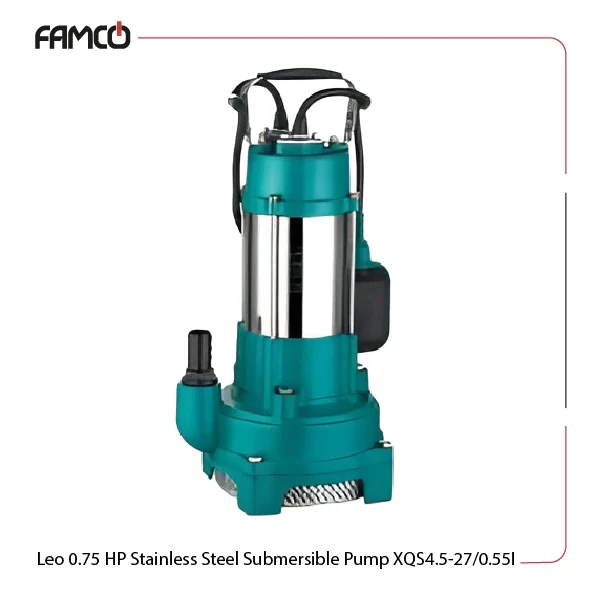

Leo 0.75 HP Stainless Steel Submersible Pump XQS4.5-27/0.55I Specifications
This pump features a sturdy copper winding and a welded stainless steel shaft, ensuring durability and efficiency. Its maximum flow rate of 75 liters per minute efficiently handles significant volumes of liquid, while its sturdy materials ensure longevity and resistance to wear. It has an insulation class of B to provide reliable performance under various conditions. The protection class is IP68, allowing for complete immersion in water up to 5 meters deep. This Leo stainless steel submersible pump can handle liquid temperatures up to 40°C and is suitable for liquids with a pH value between 6.5 and 8. The pump operates on a voltage of 220V at 50Hz, with a maximum flow rate of 75 liters per minute and a maximum head of 27 meters. Weighing 21.8 kg, the pump body is made from HT200 cast iron, and it features a mechanical seal composed of carbon and ceramic. With a power output of 0.75 HP (0.55 kW), this Leo pump is designed for efficient operation.
| Specification | Value |
| Insulation class | B |
| Protection class | IP68 |
| Max. immersion depth | 5m |
| Max. liquid temperature | +40℃ |
| Liquid pH value | 6.5-8 |
| Voltage (V/Hz) | 220/50 |
| Max. flow (l/min) | 75 |
| Max. head (m) | 27 |
| Power (HP) | 0.75 |
| Power (kW) | 0.55 |
Leo 0.75 HP Stainless Steel Submersible Pump XQS4.5-27/0.55I Materials
- Winding: Copper
- Shaft: Welded stainless steel
- Pump Body: Cast iron, HT200
- Mechanical Seal: Carbon/Ceramic

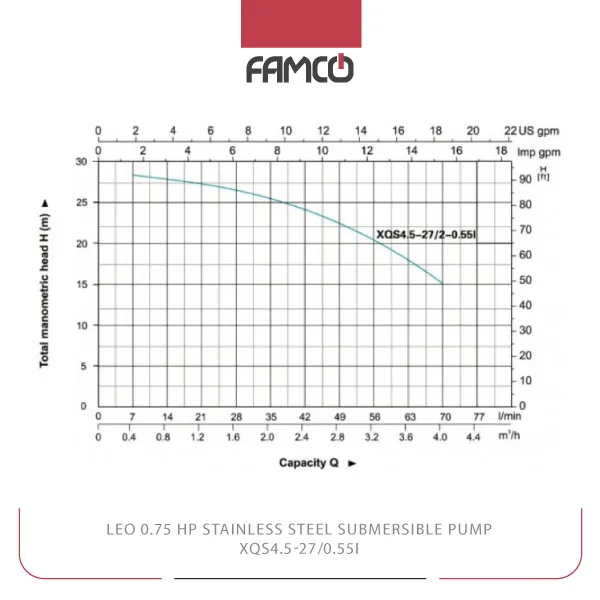

Leo 0.75 HP Stainless Steel Submersible Pump XQS4.5-27/0.55I Performance Curve
Leo 0.75 HP Stainless Steel Submersible Pump XQS4.5-27/0.55I Applications
- Water supply for residential buildings
- Irrigation systems for agriculture
- Drainage in construction sites
- Aquarium and pond water circulation
Leo 0.75 HP Stainless Steel Submersible Pump XQS4.5-27/0.55I Benefits
- Durable construction with stainless steel and copper materials
- High efficiency with a maximum flow rate of 75 l/min
- Suitable for various liquid types with a pH range of 6.5-8
- IP68 protection allows for safe underwater operation
Leo 0.75 HP Stainless Steel Submersible Pump XQS4.5-27/0.55I Price List
| No. | Name | Price |
| 1 | Leo 0.75 HP Stainless Steel Submersible Pump XQS4.5-27/0.55I Price | Contact us |
