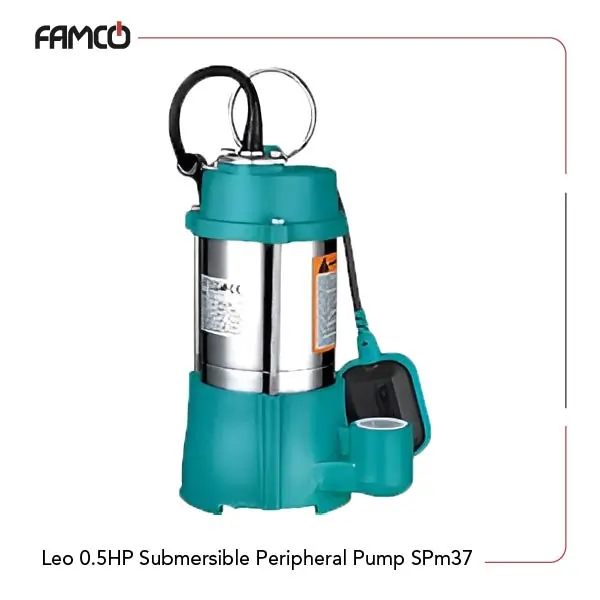

Leo 0.5HP Submersible Peripheral Pump SPm37 Specifications
Leo 0.5HP submersible peripheral pump SPm37 features a power rating of 0.37 KW (0.5 HP). The casing cover is made from durable HT200 material, while the impeller is crafted from brass for enhanced performance. The mechanical seal combines carbon and ceramic materials for reliability. This Leo submersible pump can manage liquids with a maximum temperature of +35 ℃ and is submerged up to 5 meters deep with ease. This pump has substantial potential in handling small solids and sand particles to make it suitable for draining tasks and irrigation systems. It handles a maximum sand content of 0.1% and solid particles up to 0.2mm in diameter. Additionally, the motor features copper winding, an insulation class of F, and a protection class of IPX8, ensuring durability and safety in various conditions.
| Specification | Value |
| Power (KW) | 0.37 |
| Power (HP) | 0.5 |
| Max. Flow Rate Q (m3/h) | 2.26 |
| Max. Flow Rate Q (L/min) | 25 |
| H (m) | 0.5-42 |
| Max. liquid temperature | +35 ℃ |
| Max. immersion depth | 5m |
| Maximum sand content | 0.1% |
| Maximum solid diameter | 0.2mm |
| insulation class | F |
| Protection class | IPX8 |
| Frequency (Hz) | 50 |
| Voltage (V) | 220 |
Leo SPm37 Submersible Peripheral Pump Materials
- Casing cover: HT200
- Impeller: Brass
- Mechanical seal: carbon/ceramic
- Winding: copper
Leo SPm37 Submersible Peripheral Pump Technical Data
| Q (m3/h) | 0 | 0.5 | 1 | 1.5 | 2 | 2.26 |
| Q (l/min) | 0 | 5 | 10 | 15 | 20 | 25 |
| H (m) | 42 | 35 | 24.5 | 14 | 4.5 | 0.5 |

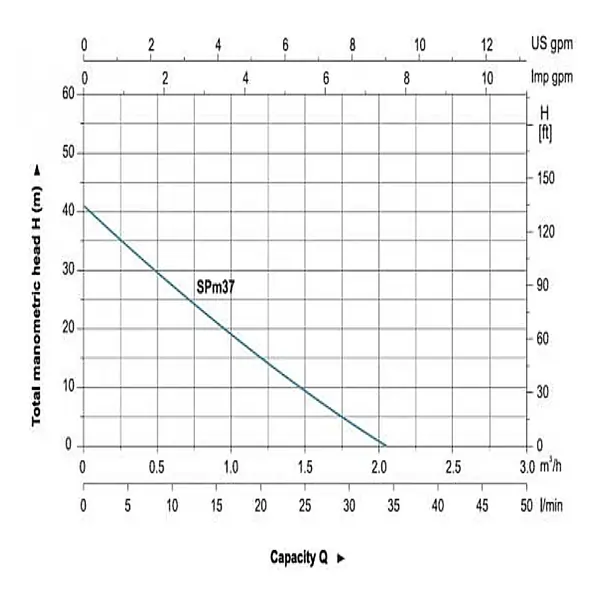

Leo SPm37 Submersible Peripheral Pump Performance Curve
Leo SPm37 Submersible Peripheral Pump Applications
- Residential water drainage
- Irrigation systems
- Light commercial water transfer
- Aquarium and pond maintenance
Leo SPm37 Submersible Peripheral Pump Benefits
- Durable construction with brass impeller
- Efficient performance with low power consumption
- Handles small solids and sand effectively
- Reliable operation with high protection class
Leo SPm37 Submersible Peripheral Pump Price List
| No. | Name | Price |
| 1 | Leo SPm37 Submersible Peripheral Pump Price | Contact us |
