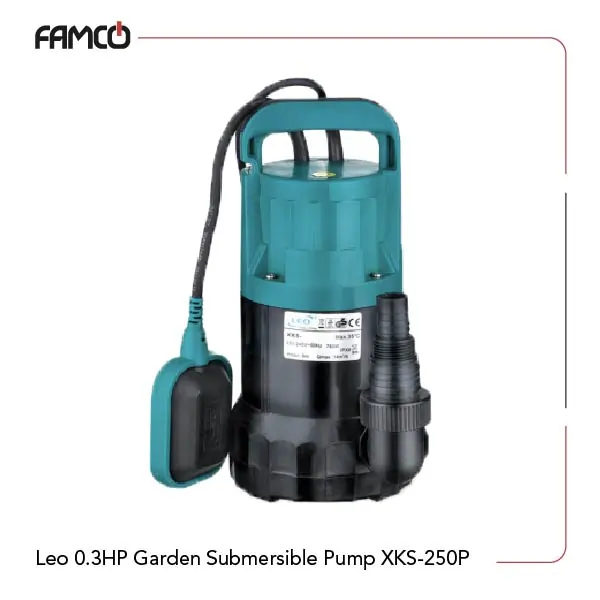

Leo 0.3HP Garden Submersible Pump XKS-250P Specifications
Leo 0.3HP garden submersible pump XKS-250P features a powerful engineering plastic body, ensuring durability and resistance to various conditions. It can handle liquids up to a maximum temperature of +35℃ and be immersed up to 7 meters deep. This Leo garden submersible pump is designed to manage particles with a maximum diameter of 5 mm, making it suitable for various applications. The winding is made of aluminum, providing efficient performance, while the insulation class is rated at F, ensuring safety during operation. A protection class of IPX8 makes this pump well-suited for wet environments. The base is constructed from PP, and the impeller is made from PA6, contributing to its overall reliability. This Leo submersible pump operates at a height range of 2.4 to 5.8 meters and has a power output of 0.3 HP or 250 W, making it a powerful choice for your pumping needs.
| Specification | Value |
| Max. Liquid Temperature (℃) | +35℃ |
| Max. Immersion Depth (m) | 7 |
| Max. Diameter of Particle (mm) | 5 |
| Insulation Class | F |
| Protection Class | IPX8 |
| Head (m) | 2.4-5.8 |
| Power (HP) | 0.3 |
| Power (kW) | 0.25 |
| Voltage (V) | 220 |
| Frequency (Hz) | 50 |
Leo 0.3HP Garden Submersible Pump XKS-250P Materials
- Winding: Aluminum
- Pump Body: Engineering plastic
- Pump Base: PP
- Impeller: PA6
Leo 0.3HP Garden Submersible Pump XKS-250P Technical Data
| Q(m³/h) | 0 | 1.5 | 3 | 4.5 |
| Q(l/min) | 0 | 25 | 50 | 75 |
| H (m) | 5.8 | 5 | 3.8 | 2.4 |

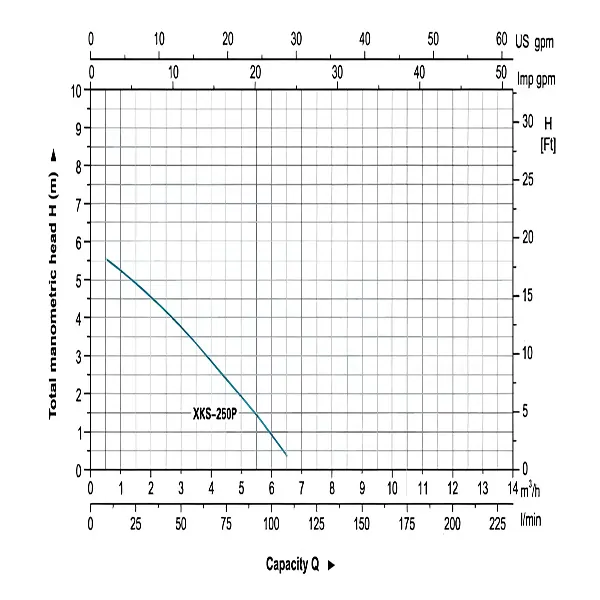

Leo 0.3HP Garden Submersible Pump XKS-250P Performance Curve
Leo 0.3HP Garden Submersible Pump XKS-250P Applications
- Water transfer in residential settings
- Irrigation systems for gardens and farms
- Aquarium and pond water circulation
- Industrial liquid handling processes
Leo 0.3HP Garden Submersible Pump XKS-250P Benefits
- Durable construction with engineering plastic
- Efficient performance with aluminum winding
- Safe operation with high insulation and protection class
- Versatile for various applications and environments
Leo 0.3HP Garden Submersible Pump XKS-250P Price List
| No. | Name | Price |
| 1 | Leo 0.3HP Garden Submersible Pump XKS-250P Price | Contact us |
