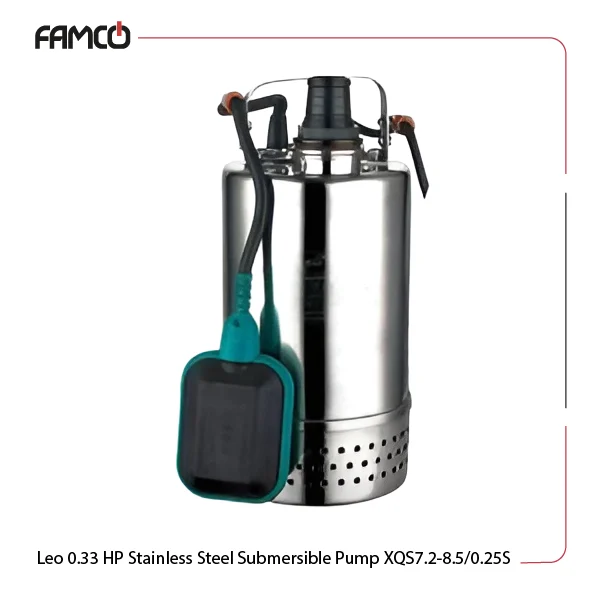

Leo 0.33 HP Stainless Steel Submersible Pump XQS7.2-8.5/0.25S Specifications
This high-performance pump features a copper winding and an insulation class of B, ensuring durability and efficiency. This product has an IP68 protection class, and designed to withstand harsh conditions. The welded stainless steel shaft and pump body provide excellent strength and corrosion resistance. It can be immersed up to 5 meters and handle liquid temperatures up to +40℃. This Leo stainless steel submersible pump operates effectively within a pH range of 4 to 10 and can manage a maximum liquid density of 1.03×103 kg/m3. The stainless steel handle adds convenience, while the Sic/Sic mechanical seal ensures reliable operation without leaks. Its maximum flow rate of 120 liters per minute and a head of 8.5 meters are powered by a 0.33 HP (0.25 kW) motor. All in all, this Leo pump is a sure-choice for various applications.
| Specification | Value |
| Insulation class | B |
| Protection class | IP68 |
| Max. immersion depth | 5m |
| Max. liquid temperature | +40℃ |
| Liquid pH value | 4-10 |
| Max. liquid density | 1.03×103 kg/m3 |
| Voltage (V/Hz) | 220/50 |
| Max. flow (l/min) | 120 |
| Max. head (m) | 8.5 |
| Power (HP) | 0.33 |
| Power (kW) | 0.25 |
| Frequency (Hz) | 50 |
| Voltage (V) | 220 |
Leo 0.33 HP Stainless Steel Submersible Pump XQS7.2-8.5/0.25S Materials
- Shaft: Welded Stainless steel
- Pump body: Stainless steel
- Handle: Stainless Steel
- Mechanical Seal: Sic/Sic
- Impeller: Stainless Steel
- Winding: Copper

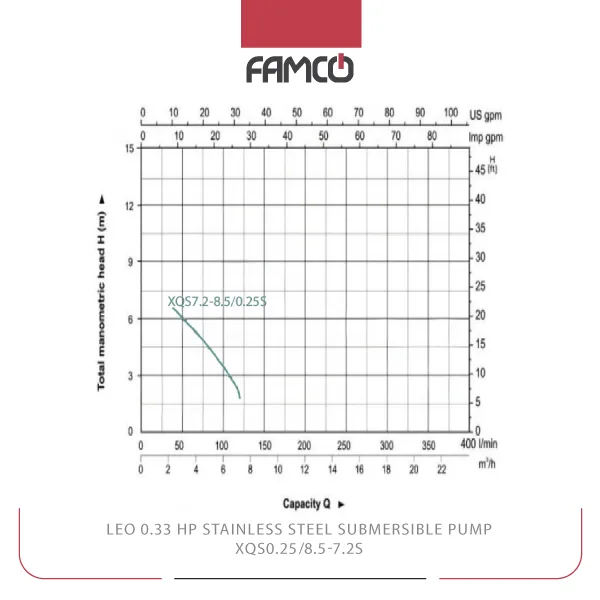

Leo 0.33 HP Stainless Steel Submersible Pump XQS7.2-8.5/0.25S Performance Curve
Leo 0.33 HP Stainless Steel Submersible Pump XQS7.2-8.5/0.25S Applications
- Water transfer in residential settings
- Irrigation for agricultural purposes
- Drainage in construction sites
- Pumping liquids in industrial applications
Leo 0.33 HP Stainless Steel Submersible Pump XQS7.2-8.5/0.25S Benefits
- Durable stainless steel construction
- High flow rate for efficient operation
- IP68 rating for protection against water ingress
- Versatile for various liquid types and applications
Leo 0.33 HP Stainless Steel Submersible Pump XQS7.2-8.5/0.25S Price List
| No. | Name | Price |
| 1 | Leo 0.33 HP Stainless Steel Submersible Pump XQS7.2-8.5/0.25S Price | Contact us |
