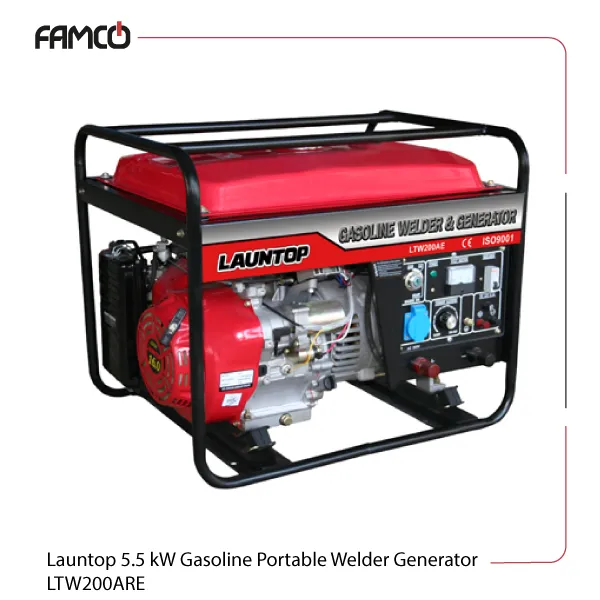

Launtop 5.5 kW Gasoline Portable Welder Generator LTW200ARE Specifications
This welding generator model LTW200ARE combines a powerful engine with versatile electrical output. It operates at a frequency of 50 or 60 Hz, providing a rated power output of 5.0 (in the 50 Hz version) to 5.5 KW and a maximum output of 5.5 (UAE compatible mode) to 6.0 KW. The voltage range is flexible, supporting 110-120V and 120-240V, with a power factor of 1.0 for efficient energy use. The device features a duty cycle of 60%, allowing this Launtop generator’s continuous operation for a significant period before needing rest. It can handle an arcing current up to 200A, making it suitable for various welding tasks. The operating welding voltage varies between 28 and 35 volts, with an operating current range from 50 to 160A depending on the welding conditions. It supports electrodes with diameters from 2.0mm to 4.0mm, accommodating different welding needs. The engine inside this portable generator is the LT420 model, which can be started either manually via recoil or electrically, giving users the flexibility and ease of use they require. The entire unit weighs 106.8 kg and measures 685mm in length, 520mm in width, and 625mm in height. As a result, you can move it around hassle-free and place it closest to where it should operate easily.
| Specification | Value |
| Model | LTW200ARE |
| Frequency (HZ) | 50 (UAE compatible and first column below)/ 60 |
| Rated output (KW) | 5.0/5.5 |
| Max. output (KW) | 5.5/6.0 |
| Voltage (V) | 110-120; 120-240 |
| Power factor | 1.0 |
| Duty cycle | 60% |
| Max. Arcing current (A) | 200 |
| Operating welding voltage (V) | 28~35 |
| Operating current (A) | 50~140/50~160 |
| Applicable electrode Φ (mm) | 2.0~4.0 |
| Engine Model | LT420 |
| Starting system | Recoil / Electric |
Launtop 5.5 kW Gasoline Portable Welder Generator LTW200ARE Dimensions and Weight
| Net weight (kg) | 106.8 |
| Dimensions (L*W*H) (mm) | 685*520*625 |
Launtop 5.5 kW Gasoline Portable Welder Generator LTW200ARE Applications
- Construction site welding
- Industrial fabrication
- Maintenance and repair work
- Workshop welding projects
Launtop 5.5 kW Gasoline Portable Welder Generator LTW200ARE Benefits
- High power output for demanding tasks
- Flexible voltage options for various applications
- Durable and portable design
- Easy starting with recoil and electric options
Launtop 5.5 kW Gasoline Portable Welder Generator LTW200ARE Price List
| No. | Name | Price |
| 1 | Launtop 5.5 kW Gasoline Portable Welder Generator LTW200ARE Price | Contact us |
