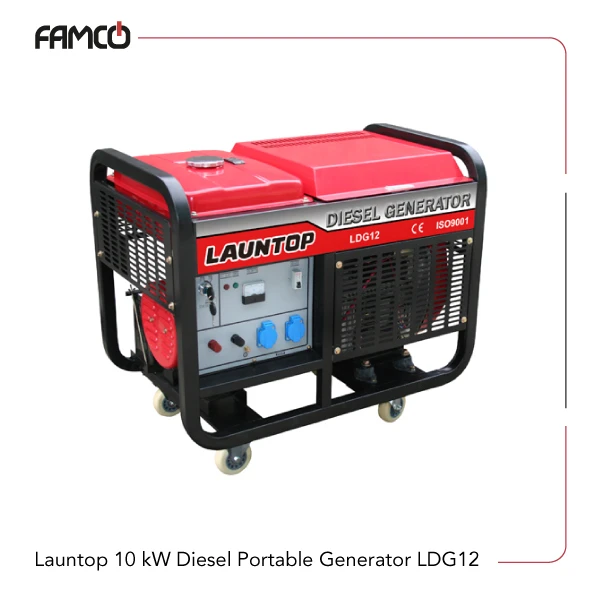

Launtop 10 kW Two-Cylinder Diesel Portable Generator LDG12 Specifications
Launtop 10 kW two-cylinder diesel portable generator LDG12 is powered by a 954cc LA290 engine with an electric start. It delivers a continuous AC output of 10 kW and can reach up to 11 kW at peak load, covering a wide range of power needs. Designed to handle voltages from 110V to 240V and frequencies of 50 or 60Hz, it works well with different electrical systems. The unit also provides a 12V DC output and comes with a 25-liter fuel tank. This diesel portable device offering extended operation with a fuel consumption rate of about 4.83 liters per hour. The engine speed is set at 3000 rpm for 50Hz and 3600 rpm for 60Hz. This Launtop diesel portable geneator requires 3 liters of oil, which matches its total oil capacity. Noise levels measure around 82 dB(A) from a distance of 7 meters, making it relatively quiet for a generator of this size. Measuring 910mm long, 578mm wide, and 800mm high, and weighing 174 kg, the LDG12S balances portability with solid build quality for a range of uses.
| Specification | Value |
| Model | LDG12S |
| Voltage (V) | 110-240 |
| Frequency (Hz) | 50/60 |
| Cont. AC output (kW) | 10 |
| Max. AC output (kW) | 11 |
| DC output (V/A) | 12 |
| Engine model | LA290 |
| Starting system | Electric |
| Displacement (cc) | 954 |
| Engine speed (rpm) | 3000 (50Hz)/3600 (60 Hz) |
| Oil capacity (L) | 3 |
| Lube oil capacity (L) | 3 |
| Fuel tank capacity (L) | 25 |
| Fuel consumption (L/Hr) | 4.83 |
| Noise level (7 meters away) dB(A) | 82 |
| Dimension (L×W×H)(mm) | 910x578x800 |
| Net weight (kg) | 174 |
Launtop 10 kW Two-Cylinder Diesel Portable Generator LDG12 Applications
- Backup power for homes and small businesses
- Construction sites and outdoor projects
- Event and outdoor activity power supply
- Emergency power during outages
Launtop 10 kW Two-Cylinder Diesel Portable Generator LDG12 Benefits
- Powerful 10 kW continuous output for various needs
- Electric start for easy operation
- Long fuel capacity supports extended use
- Relatively quiet operation for its class
Launtop 10 kW Two-Cylinder Diesel Portable Generator LDG12 Price List
| No. | Name | Price |
| 1 | Launtop 10 kW Two-Cylinder Diesel Portable Generator LDG12 Price | Contact us |
