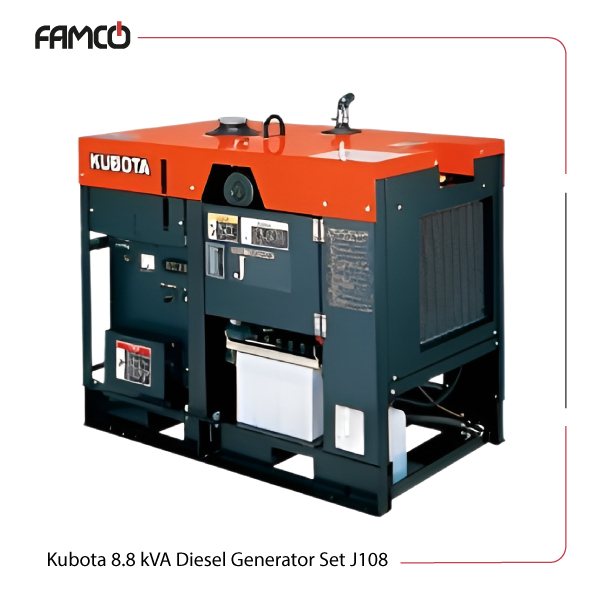

Overview of Kubota 8.8 kVA Diesel Generator Set J108

This 8.8 kVA operates for up to 23 hours at a time. It consumes a maximum of 3 liters of diesel per hour while its fuel tank holds 37 liters of fuel. It provides a steady 8 kVA prime power output, making it ideal for construction sites, events, or backup power. Its water-cooled, 4-cycle engine with three cylinders ensures efficient performance and durability. The generator operates smoothly at 50 Hz with a voltage of 220V, suitable for many electrical devices. Its compact size and relatively light weight make it portable yet powerful enough for demanding tasks. The fuel tank capacity of 37 liters offers long operation hours, reducing the need for frequent refueling. With a sound level of 75 dB(A), this Kobuta genset maintains a relatively quiet operation, suitable for different settings. Safety features include an emergency stop system that activates if oil pressure or water temperature exceeds safe limits. Overall, this generator combines power, efficiency, and safety.

Kubota 8.8 kVA Diesel Generator Set J108 Specifications

This generator features a prime power output of 8 kVA and 8 kW, suitable for continuous operation of up to 23 hours. It operates at a frequency of 50 Hz with a single-phase voltage of 220V and a power factor of 1. The engine is water-cooled, four-stroke, with three cylinders and a displacement of 0.719 liters, running at 3000 rpm. It includes an insulation class rotor coil (F) and stator coil (B). The generator’s oil capacity is 3.4 liters. This Kubota diesel generator’s coolant capacity is 3.0 liters. Fuel consumption varies depending on load, with 3.1 L/h at full load and a fuel tank capacity of 37 liters, allowing for extended operation hours. It can run approximately 11.8 hours at full load, with dimensions of 995 x 593 x 860 mm and a weight of 255 kg. The sound level at full load is 75 dB(A).

Specification	Value
Power Output	Prime (kVA)	8
	Prime (kW)	8
	Standby (kVA)	8
	Standby (kW)	8
Frequency (Hz)	50
Single-phase Voltage (V)	220
Power Factor	1
Number of Poles	2
Insulation Class	Rotor coil	class F
	Stator coil	class B
Engine Type	Water-cooled, 4-cycle
Number of Cylinders	3
Displacement (L)	0.719
Engine Speed (rpm)	3000
Continuous Rated Output (kW)	10.4
Oil Capacity (L)	3.4
Coolant Capacity (L)	3.0
Fuel Consumption (L/h)	at Full Load	3.1
	at 3/4 Load	2.5
	at 1/2 Load	2.1
	at 1/4 Load	1.6
Fuel Tank Capacity (L)	37.0
Operation Hours	at Full Load	11.8
	at 3/4 Load	14.7
	at 1/2 Load	18.0
	at 1/4 Load	23.1
Sound Level at Full Load (dB(A))	75

Kubota 8.8 kVA Diesel Generator Set J108 Dimensions and Weight

Dimensions (L x W x H) mm	995 x 593 x 860
Approx. Net Weight (kg)	255

Kubota 8.8 kVA Diesel Generator Set J108 Applications

Construction site power supply
Event and outdoor activities
Backup power for homes and businesses
Remote location power needs

Kubota 8.8 kVA Diesel Generator Set J108 Benefits

Reliable and continuous power output
Long operation hours with large fuel tank
Efficient fuel consumption
Safety features for secure operation

Kubota 8.8 kVA Diesel Generator Set J108 Price List

No.	Name	Price
1	Kubota 8.8 kVA Diesel Generator Set J108 Price	Contact us

Brand	Kubota
Country	Japan
Standby power (kVA)	8
Frequency (Hz)	50
Power Factor	1
Number of Poles	2
Engine Displacement (L)	0.719
Speed (RPM)	3000
Oil Capacity (L)	3.4
Fuel Consumption (L/h)	3.1
Fuel Tank Capacity (L)	37
Weight (kg)	255
