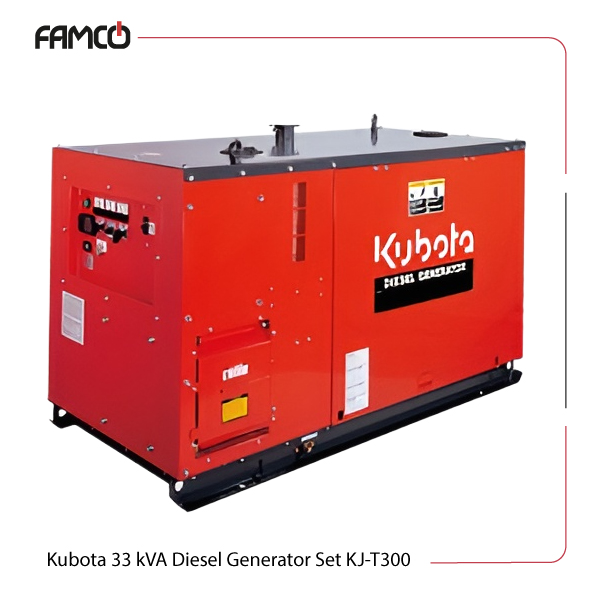

Kubota 33 kVA Diesel Generator Set KJ-T300 Specifications
This Kubota genset provides a prime power output of 30 kVA for construction sites, events, or backup power. It operates at 50 Hz frequency with a voltage of 380 and a power factor of 0.8. The engine in this Kubota power supply tool is a liquid-cooled, 4-cycle type with 4 cylinders and a displacement of 3318 cc, running at 1500 rpm. This Kubota diesel generator comes with safety features, including an emergency stop system. It only activates during abnormal conditions such as oil pressure issues, a surge in temperature, or fan belt failure.
It features an insulation class H for durability. The generator’s fuel tank capacity is 60 liters, providing up to 8.7 hours of continuous operation at full load. Fuel consumption is approximately 6.86 liters per hour at full load, decreasing at lower loads. The dimensions are 1730 mm in length, 805 mm in width, and 1046 mm in height, with a net weight of about 710 kg. It produces a sound level of 73 dB(A) at full load measured from 7 meters away.
| Specification | Value | |
| Power Output | Prime (kW) | 30 |
| Prime (kVA) | 24 | |
| Standby (kW) | 33 | |
| Standby (kVA) | 26.4 | |
| Frequency (Hz) | 50 | |
| Voltage (V) | 380 | |
| Power Factor | 0.8 | |
| Number of Poles | 4 | |
| Insulation Class | H | |
| Engine Type | liquid-cooled, 4-cycle | |
| Number of Cylinders | 4 | |
| Displacement (L) | 3318 | |
| Engine Speed (rpm) | 1500 | |
| Continuous Rated Output (kW) | 26.8 | |
| Oil Capacity (L) | 13.2 | |
| Coolant Capacity (L) | 9.5 | |
| Fuel Consumption (L/h) | at Full Load | 6.86 |
| at 3/4 Load | 5.12 | |
| at 1/2 Load | 3.61 | |
| at 1/4 Load | 2.57 | |
| Fuel Tank Capacity (L) | 60.0 | |
| Continuous Operation Hours | at Full Load | 8.7 |
| at 3/4 Load | 11.7 | |
| at 1/2 Load | 16.6 | |
| at 1/4 Load | 23.3 | |
| Sound Level at Full Load (dB(A)) | 73 | |
Kubota 33 kVA Diesel Generator Set KJ-T300 Dimensions and Weight
| Dimensions (L x W x H) mm | 1730 x 805 x 1046 |
| Dimensions (L x W x H) in | 68.1 x 32.7 x 41.2 |
| Approximate Net Weight (kg) | 710 |
| Approximate Net Weight (lbs) | 1565 |
Kubota 33 kVA Diesel Generator Set KJ-T300 Applications
- Construction site power supply
- Emergency backup for businesses
- Outdoor events and festivals
- Industrial machinery operation
Kubota 33 kVA Diesel Generator Set KJ-T300 Benefits
- High power output suitable for large-scale needs
- Durable liquid-cooled engine for long-lasting use
- Extended operation hours at lower loads
- Built-in safety features for reliable operation
Kubota 33 kVA Diesel Generator Set KJ-T300 Price List
| No. | Name | Price |
| 1 | Kubota 33 kVA Diesel Generator Set KJ-T300 Price | Contact us |
