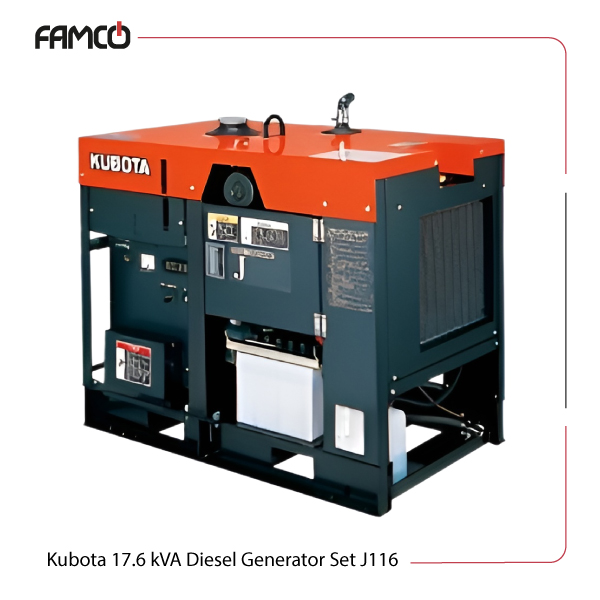

Kubota 17.6 kVA Diesel Generator Set J116 Specifications
This generator features a prime power output of 16 kVA and 16 kW, suitable for continuous use in various applications. It operates at a frequency of 50 Hz with a single-phase voltage of 220V and a power factor of 1. The engine is a water-cooled, 4-cycle type with 4 cylinders and a displacement of 1.335 liters, running at 3000 rpm. It has an insulation class of F for the rotor coil and B for the stator coil. The generator’s oil capacity is 5.7 liters, and it holds 3.5 liters of coolant. Fuel consumption of this Kubota diesel generator varies from 3.1 liters per hour at quarter load to 6.1 liters at full load, with a large fuel tank capacity of 79 liters allowing for extended operation. It can run up to 12.9 hours at full load, and longer at reduced loads. The dimensions are 1300 mm in length, 611 mm in width, and 922 mm in height, with a weight of approximately 380 kg. The sound level at full load is 77.5 dB(A) measured at 23 feet. The generator’s safety features are set with an emergency stop system that activates if oil pressure, water temperature, or fan belt conditions become abnormal.
| Specification | Value | |
| Prime Power Output | (kVA) | 16 |
| (kW) | 16 | |
| Standby Power Output | (kVA) | 17.6 |
| (kW) | 17.6 | |
| Frequency (Hz) | 50 | |
| Single-phase Voltage (V) | 220 | |
| Power Factor | 1 | |
| Number of Poles | 2 | |
| Insulation Class | Rotor Coil | Class F |
| Stator Coil | Class B | |
| Engine Type | Water-cooled, 4-cycle | |
| Number of Cylinders | 4 | |
| Displacement (L) | 1.335 | |
| Engine Speed (rpm) | 3000 | |
| Continuous Rated Output (kW) | 19.3 | |
| Oil Capacity (L) | 5.7 | |
| Coolant Capacity (L) | 3.5 | |
| Fuel Consumption (L/h) | at Full Load | 6.1 |
| at 3/4 Load | 4.9 | |
| at 1/2 Load | 4.0 | |
| at 1/4 Load | 3.1 | |
| Fuel Tank Capacity (L) | 79.0 | |
| Continuous Operation Hours | at Full Load | 12.9 |
| at 3/4 Load | 16.2 | |
| at 1/2 Load | 19.8 | |
| at 1/4 Load | 25.4 | |
| Sound Level (dB (A)) at Full Load at 23 ft. | 77.5 | |
Kubota 17.6 kVA Diesel Generator Set J116 Dimensions and Weight
| Dimensions (L x W x H) mm | 1300 x 611 x 922 |
| Approx. Net Weight (kg) | 380 |
Kubota 17.6 kVA Diesel Generator Set J116 Applications
- Construction site power supply
- Emergency backup for facilities
- Outdoor events and festivals
- Industrial machinery operation
Kubota 17.6 kVA Diesel Generator Set J116 Benefits
- High power output for continuous use
- Long runtime with large fuel tank
- Durable water-cooled engine for longevity
- Safety features for reliable operation
Kubota 17.6 kVA Diesel Generator Set J116 Price List
| No. | Name | Price |
| 1 | Kubota 17.6 kVA Diesel Generator Set J116 Price | Contact us |
