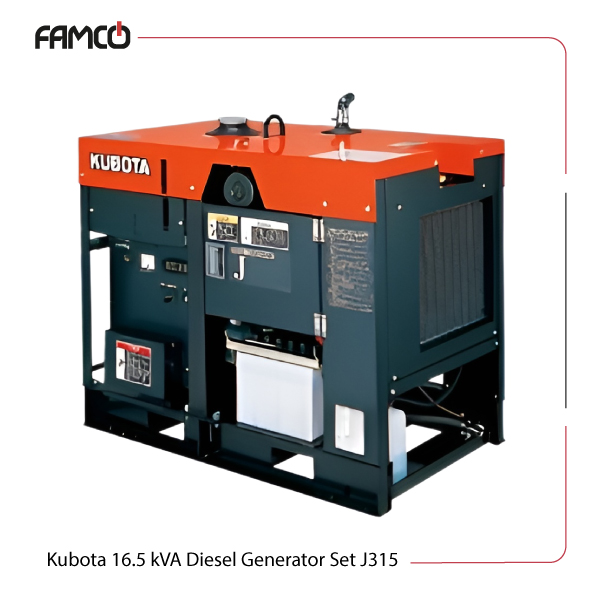

Kubota 16.5 kVA Diesel Generator Set J315 Specifications
This generator offers a prime power of 15 kVA (12 kW) and standby power of 16.5 kVA (13.2 kW). It operates at 50 Hz frequency with a single-phase voltage of 220V and a three-phase voltage of 380V. This Kubota diesel generator features a powerful, water-cooled, 4-cycle engine with three cylinders and a displacement of 1.001 liters, operating at 3000 rpm. It has an insulation class of F for the rotor coil and B for the stator coil, ensuring durability and safety. The generator’s power factor is 0.8, and it includes a 2-pole system. It consumes about 4.5 liters of fuel per hour at full load, with a tank capacity of 79 liters, allowing continuous operation for up to 17.6 hours at full load. Its dimensions are 1215 mm in length, 611 mm in width, and 922 mm in height, with a net weight of approximately 340 kg. The noise level at full load is 76.5 dB(A). An emergency stop system is integrated to handle abnormal conditions such as oil pressure issues, water temperature rise, or fan belt failure. The oil capacity is 5.6 liters, and the coolant capacity is 5.5 liters, supporting reliable and efficient operation.
| Specification | Value | |
| Power Output | Prime | 15 (kVA) |
| 12 (kW) | ||
| Standby | 16.5 (kVA) | |
| 13.2 (kW) | ||
| Frequency (Hz) | 50 | |
| Voltage (V) | Single-phase | 220 |
| Three-phase | 380 | |
| Power Factor | 0.8 | |
| Number of Poles | 2 | |
| Insulation Class | Rotor Coil | F |
| Stator Coil | B | |
| Engine Type | Water-cooled, 4-cycle | |
| Number of Cylinders | 3 | |
| Displacement (L) | 1.001 | |
| Engine Speed (rpm) | 3000 | |
| Continuous Rated Output (kW) | 14.4 | |
| Fuel Consumption at Full Load (L/h) | at Full Load | 4.5 |
| at 3/4 Load | 3.6 | |
| at 1/2 Load | 2.9 | |
| at 1/4 Load | 2.3 | |
| Fuel Tank Capacity (L) | 79.0 | |
| Continuous Operation Hours | at Full Load | 17.6 |
| at 3/4 Load | 22.0 | |
| at 1/2 Load | 27.0 | |
| at 1/4 Load | 34.6 | |
| Oil Capacity (L) | 5.6 | |
| Coolant Capacity (L) | 5.5 | |
Kubota 16.5 kVA Diesel Generator Set J315 Dimensions and Weight
| Dimensions (L x W x H) mm | 1215 x 611 x 922 |
| Approx. Net Weight (kg) | 340 |
| Sound Level at Full Load (dB(A)) | 76.5 |
Kubota 16.5 kVA Diesel Generator Set J315 Applications
- Construction sites for power supply
- Emergency backup for homes and businesses
- Remote industrial locations
- Event and outdoor activities
Kubota 16.5 kVA Diesel Generator Set J315 Benefits
- High power output suitable for various needs
- Long continuous operation hours
- Durable and reliable engine design
- Safety features for abnormal conditions
Kubota 16.5 kVA Diesel Generator Set J315 Price List
| No. | Name | Price |
| 1 | Kubota 16.5 kVA Diesel Generator Set J315 Price | Contact us |
