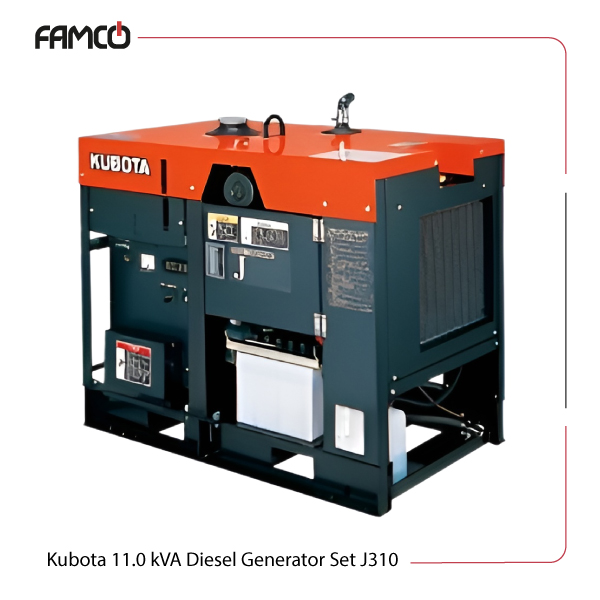

Kubota 11 kVA Diesel Generator Set J310 Specifications
This generator offers a prime power output of 8 kW and 8.8 kW of standby power, suitable for continuous use or emergencies. It operates at 50 Hz frequency with a single-phase voltage of 220V and a power factor of 0.8. The engine is a water-cooled, 4-cycle type with three cylinders and a displacement of 0.719 liters that operates at 3000 rpm.
It features insulation classes F for the rotor coil and B for the stator coil for safety reasons. This Kubota dg set’s oil capacity is 3.4 liters, and it has a coolant capacity of 3 liters. Fuel consumption in this line of Kubota diesel generators varies depending on load, with 3.1 L/h at full load and 1.6 L/h at quarter load. The fuel tank holds 37 liters, providing up to 12 hours of operation at full load. Its compact dimensions are 995 mm in length, 593 mm in width, and 860 mm in height, with a net weight of 255 kg. The noise level is 75 dB(A) at 23 feet, and it includes an emergency stop system activated by abnormal oil pressure or water temperature.
| Specification | Value | |
| Prime Power Output Prime Power Output | kVA | 10 |
| kW | 8 | |
| Standby Power Output Standby Power Output | kVA | 11 |
| kW | 8.8 | |
| Frequency (Hz) | 50 | |
| Single-phase Voltage (V) | 220 | |
| Power Factor | 0.8 | |
| Number of Poles | 2 | |
| Insulation Class | Rotor Coil | Class F |
| Stator Coil | Class B | |
| Engine Type | Water-cooled, 4-cycle | |
| Number of Cylinders | 3 | |
| Displacement (L) | 0.719 | |
| Engine Speed (rpm) | 3000 | |
| Continuous Rated Output (kW) | 10.4 | |
| Oil Capacity (L) | 3.4 | |
| Coolant Capacity (L) | 3 | |
| Fuel Consumption (L/h) | at Full Load | 3.1 |
| at 3/4 Load | 2.4 | |
| at 1/2 Load | 2.0 | |
| at 1/4 Load | 1.6 | |
| Fuel Tank Capacity (L) | 37.0 | |
| Operation Hours | at Full Load | 12.1 |
| at 3/4 Load | 15.2 | |
| at 1/2 Load | 18.6 | |
| at 1/4 Load | 23.9 | |
| Sound Level at Full Load (dB(A)) | 75 | |
Kubota 11 kVA Diesel Generator Set J310 Dimensions and Weight
| Dimensions (L x W x H) mm | 995 x 593 x 860 |
| Approx. Net Weight (kg) | 255 |
Kubota 11 kVA Diesel Generator Set J310 Applications
- Construction sites for portable power supply
- Backup power for residential homes
- Small business operations requiring reliable energy
- Event setups and outdoor activities
Kubota 11 kVA Diesel Generator Set J310 Benefits
- High power output suitable for various needs
- Long operation hours at lower loads
- Durable and safe with insulation and emergency stop system
- Compact design for easy transportation and installation
Kubota 11 kVA Diesel Generator Set J310 Price List
| No. | Name | Price |
| 1 | Kubota 11 kVA Diesel Generator Set J310 Price | Contact us |
