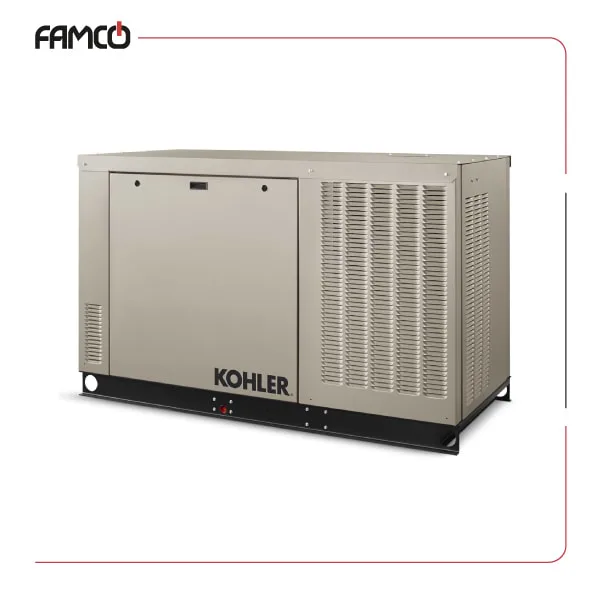

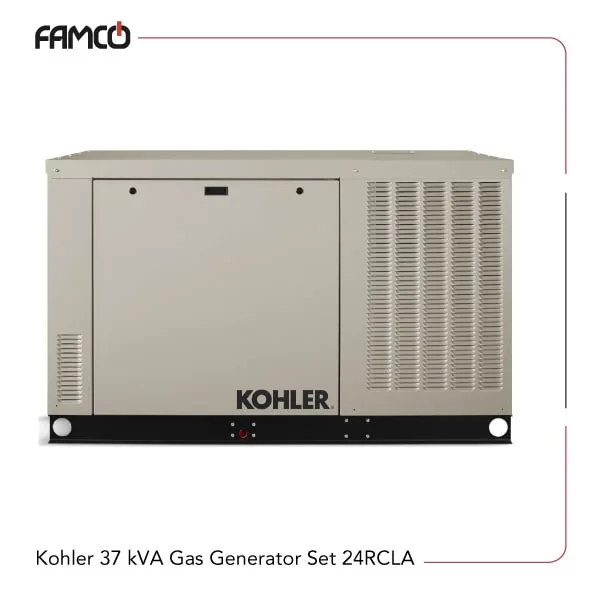

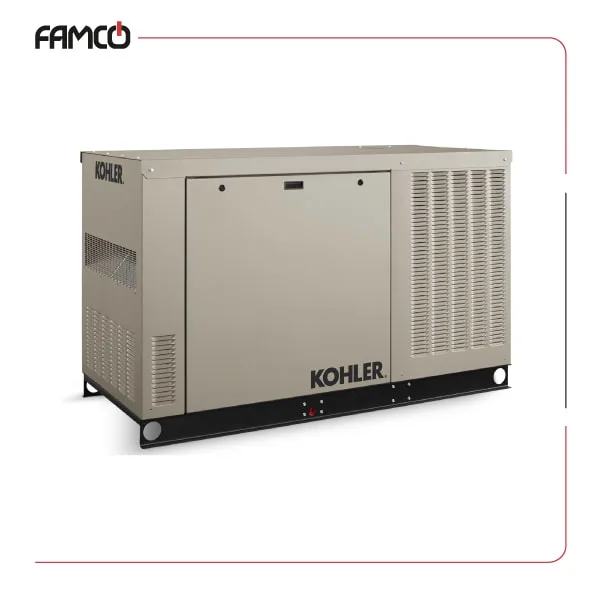

Kohler 37 kVA Gas Generator Set 24RCLA Specifications
This generator offers a reliable power output with a rated capacity of 21 kW for natural gas and 24 kW for LPG. It features a robust KG2204 engine with a 2.2-liter displacement, 4-cycle operation, and natural aspiration. The device is designed for both single and three-phase applications, making it versatile for various power needs. It includes an aluminum enclosure for durability and efficient cooling through liquid cooling technology. The generator operates at 1800 RPM and produces a noise level of 54 dB(A) at a distance, with full-speed noise reaching 61 dB(A). It has a peak starting KVA of 37, with a rated voltage of 120/240 volts and a frequency of 50 or 60 Hz. The alternator is a 4-pole rotating field type, ensuring stable power delivery. It weighs approximately 1260 kg, with a separate weight of 571.5 kg for the engine unit. This Kohler generator is equipped with an ATS (Automatic Transfer Switch) and a remote monitor for easy operation and monitoring. It supports a response time of just 10 seconds for switching or starting, and the fuel options include natural gas and LPG, with a maximum current of 87 amps for NG and 100 amps for LPG. The generator’s displacement is 2.2 liters, and it features a high-quality aluminum enclosure for durability and corrosion resistance.
| Specification | Value |
| Rated power (kW) NG | 21 |
| Rated power (kW) LP | 24 |
| ATS | Included |
| Phase | Single Phase/Three Phase |
| Engine Model | KG2204, 2.2L, 4-Cycle, Natural Aspiration |
| Remote Monitor | Included |
| Response Time | 10 seconds |
| Alternator Type | 4-Pole, Rotating Field |
| Enclosure Material | Aluminum |
| Voltage | 120/240 |
| Weight KG | 1260 |
| Peak Motor Starting KVA | 37 kVa |
| Amps LP | 100 amps |
| Engine Speed (rpm) | 1800 |
| Fuel Type | Natural Gas | LPG |
| Rating kW | 24 |
| Noise at Full Speed | 61 dB(A) |
| Frequency | 50 Hz | 60 Hz |
| Current (A) NG | 87 |
| kW Range | 21-30 |
| Cooling Type | Liquid-Cooled |
| Weight (kg) | 571.5 |
| Displacement | 2.2 L (134.25 cu. in.) |
Kohler 37 kVA Gas Generator Set 24RCLA Applications
- Backup power for residential homes
- Emergency power supply for commercial buildings
- Construction site power source
- Industrial equipment operation
Kohler 37 kVA Gas Generator Set 24RCLA Benefits
- Flexible fuel options: natural gas and LPG
- Durable aluminum enclosure for long-lasting use
- Quick response time of 10 seconds for switching
- Quiet operation with noise levels of 54 dB(A)
Kohler 37 kVA Gas Generator Set 24RCLA Price List
| No. | Name | Price |
| 1 | Kohler 37 kVA Gas Generator Set 24RCLA Price | Contact us |
