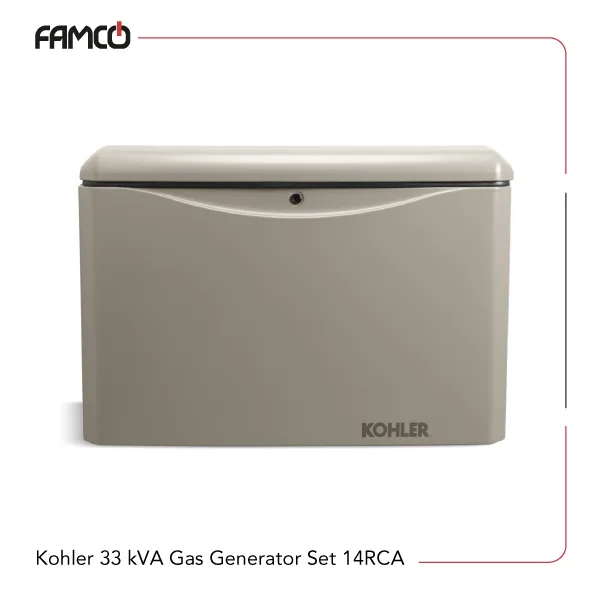

Kohler 33 kVA Gas Generator Set 14RCA Specifications
This generator features a powerful engine model CH740, capable of delivering 12 kW on natural gas and up to 23.6 HP on LPG. It has a peak motor starting capacity of 33 kVa and operates at 3600 RPM. The unit supports both single-phase and three-phase power outputs, with voltages of 120/240 and 277/480. Its aluminum enclosure ensures durability and lightweight handling, weighing approximately 200 kg or 440 lbs. This Kohler gas generator produces a noise level of 63 dB(A) during operation and 67 dB(A) at full speed, with a response time of just 10 seconds. It is air-cooled, with a V-2 cylinder arrangement and a displacement of 725 cm³. The alternator is a 2-pole, rotating field type, designed for reliable power generation. It supports a maximum of 58 amps on LPG and 50 amps on natural gas, making it suitable for various industrial and residential applications.
| Specification | Value |
| Rated Power (NG) | 20.5 HP |
| Rated Power (LPG) | 23.6 HP |
| Peak Motor Starting | 33 kVa |
| Phase | Single-Phase/Three Phase |
| Engine Model | CH740 |
| Noise level | 63 dB(A) |
| Response Time | 10 seconds |
| Alternator Type | 2-Pole, Rotating Field |
| Enclosure Material | Aluminum |
| Voltage | 120/240|277/480 |
| Weight | LBS 440 |
| Current | NG 50 amps |
| Engine Speed (rpm) | 3600 |
| Fuel Type | Natural Gas | LPG |
| Sound Full Speed | 67 dB(A) |
| Frequency | Hz 60 Hz |
| Cooling Type | Air-Cooled |
| Cylinder Arrangement | V-2 |
| Displacement | 725 cm³ (44 cu. in.) |
Kohler 33 kVA Gas Generator Set 14RCA Applications
- Backup power for homes and businesses
- Construction sites and remote locations
- Industrial equipment operation
- Emergency power supply
Kohler 33 kVA Gas Generator Set 14RCA Benefits
- Flexible fuel options with natural gas and LPG
- Fast response time for quick power restoration
- Durable aluminum enclosure for longevity
- Quiet operation at 63 dB(A)
Kohler 33 kVA Gas Generator Set 14RCA Price List
| No. | Name | Price |
| 1 | Kohler 33 kVA Gas Generator Set 14RCA Price | Contact us |
