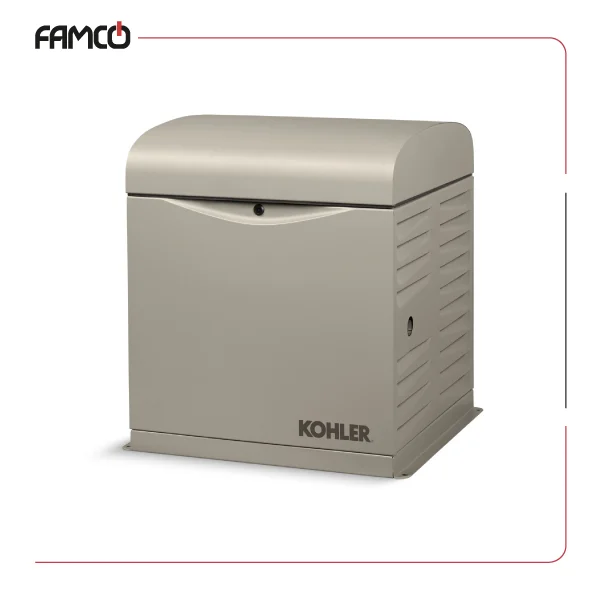

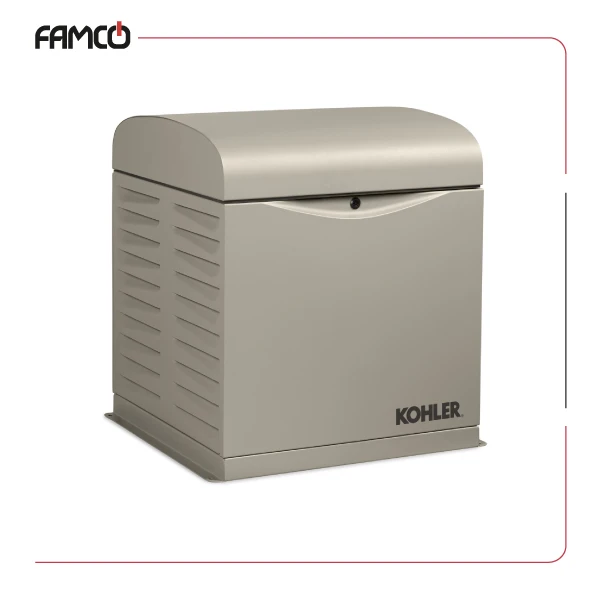

Kohler 20.3 kVA Gas Generator Set 12RESV Specifications
This generator features a powerful KT725 1.9L, 4-cycle engine capable of delivering 11 kW on natural gas and 12 kW on LPG. It operates at a single phase with a voltage of 120/240V and a frequency of 60 Hz. The engine runs at 3600 RPM and is air-cooled for efficient performance. It has a noise level of 67 dB(A) and a response time of just 10 seconds. The generator’s enclosure is made of durable steel, ensuring longevity and protection. This Kohler gas generator weighs 196 kilograms (433 pounds) and can handle peak motor starting at 20.3 kVa. The alternator is a 2-pole, rotating field type, providing reliable power output. It supplies 45.8 amps on natural gas and 50 amps on LPG, with voltage regulation of ±1.0%. The displacement of the engine is 725 cm³, making it suitable for various power needs, especially in emergency or backup situations.
| Rated Power (NG) | 11 kW |
| Rated Power (LPG) | 12 kW |
| Standby Power | 18 HP (NG), 21.4 HP (LPG) |
| Phase | Single Phase |
| Engine Model | KT725 1.9L, 4-Cycle |
| Noise Level | 67 dB(A) |
| Response Time | 10 seconds |
| Alternator Type | 2-Pole, Rotating Field |
| Enclosure Material | Steel |
| Voltage | 120/240 |
| Weight | 196 KG / 433 LBS |
| Peak Motor Starting | 20.3 kVa |
| Current (LPG) | 50.0 amps |
| Current (NG) | 45.8 amps |
| Engine Speed (rpm) | 3600 |
| Fuel Type | Natural Gas | LPG |
| Noise level | 71 dB(A) |
| Frequency | 60 Hz |
| Cooling Type | Air-Cooled |
| Displacement | 725 cm³ (44 cu. in.) |
| Voltage Regulation | Reg 0 Full ±1.0% |
Kohler 20.3 kVA Gas Generator Set 12RESV Applications
- Home backup power during outages
- Small commercial and industrial use
- Emergency power supply for critical systems
- Remote or outdoor events requiring reliable energy
Kohler 20.3 kVA Gas Generator Set 12RESV Benefits
- Reliable power with quick response time
- Durable steel enclosure for long-lasting use
- Flexible fuel options: natural gas or LPG
- Quiet operation at 67 dB(A)
Kohler 20.3 kVA Gas Generator Set 12RESV Price List
| No. | Name | Price |
| 1 | Kohler 20.3 kVA Gas Generator Set 12RESV Price | Contact us |
There are no reviews yet.
