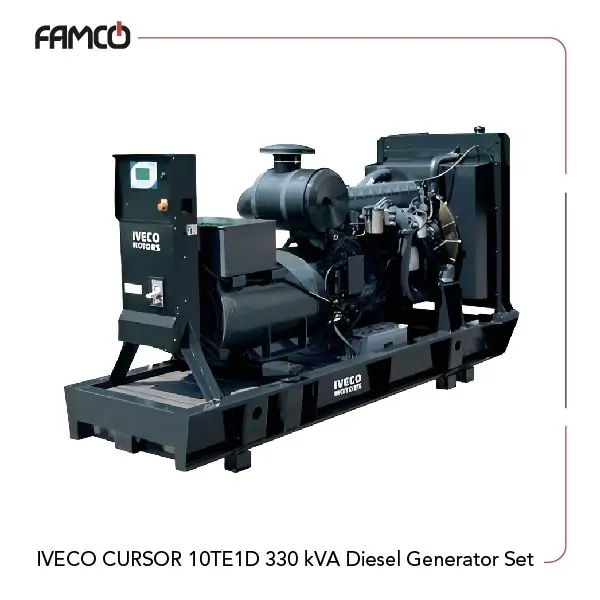

IVECO CURSOR 10TE1D 330 kVA Diesel Generator Set Specifications
This generator is designed for solid performance and features a standby power capacity of 330 kVA and a prime power output of 300 kVA. This IVECO diesel generator set operates with six cylinders and has a displacement of 10.6 liters. Its fuel tank can hold up to 585 liters to enable extended operation without frequent refueling. The oil tank implemented in this generator has a volume of 30 liters, while its cooling system can accommodate 15 liters. Functioning at a speed of 1500 rpm, it operates efficiently at a voltage of 380V in a three-phase setup. The frequency rate is set at 50 Hz, and it maintains a power factor of 0.8. Fuel consumption in this specific Iveco product at full load is 62.8 liters per hour. The generator weighs 2300 kg without a canopy and 2600 kg with it. Its dimensions are 3340 mm x 1900 mm x 1150 mm without the canopy and 3820 mm x 2460 mm x 1150 mm with the canopy which make it a substantial yet manageable unit for various applications.
| Specification | Value |
| Standby Power (kVA) | 330 |
| Prime Power (kVA) | 300 |
| Cylinder Numbers | 6 |
| Oil Tank Volume (L) | 30 |
| Fuel Tank Capacity (L) | 585 |
| Cooling System Capacity (L) | 15 |
| Displacement (L) | 10.6 |
| Speed (rpm) | 1500 |
| Voltage (V) | 380 – three phase |
| Frequency (Hz) | 50 |
| Power Factor | 0.8 |
| Fuel consumption (L/h) at 100% prime power | 62.8 |
| Dry Weight without Canopy (kg) | 2300 |
| Dry Weight with Canopy (kg) | 2600 |
| Size (mm) without Canopy | 3340*1900*1150 |
| Size (mm) with Canopy | 3820*2460*1150 |
IVECO CURSOR 10TE1D 330 kVA Diesel Generator Set Applications
- Construction sites requiring reliable power supply
- Emergency backup for businesses and facilities
- Outdoor events needing temporary power solutions
- Industrial applications with high energy demands
IVECO CURSOR 10TE1D 330 kVA Diesel Generator Set Benefits
- High standby and prime power capacity for versatile use
- Large fuel tank for extended operation without constant interruptions
- Efficient fuel consumption when working at full force
- A solid design to deliver reliable power supply in demanding conditions
IVECO CURSOR 10TE1D 330 kVA Diesel Generator Set Price List
| No. | Name | Price |
| 1 | IVECO CURSOR 10TE1D 330 kVA Diesel Generator Set Price | Contact us |
