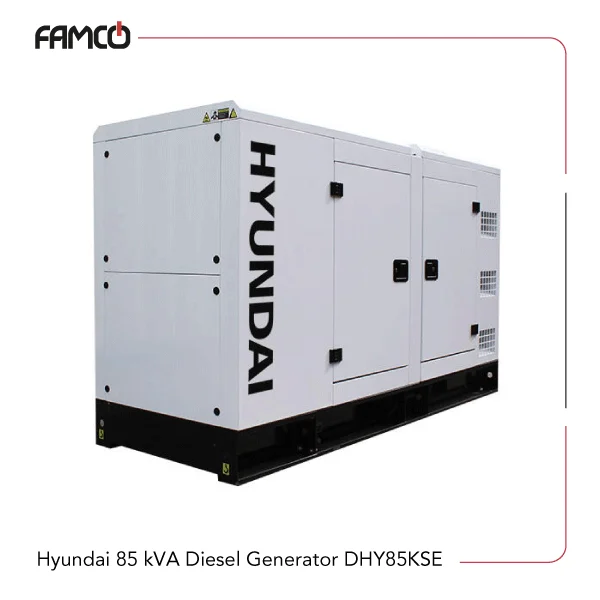

Hyundai 85 kVA Diesel Generator DHY85KSE Specifications
Hyundai 85 kVA diesel generator DHY85KSE offers reliable power with a rated output of 62 kW and a maximum of 68 kW. It operates on a Hyundai HY4A100Z D20 turbocharged engine, which features four cylinders and a displacement of 4.84 liters. The generator runs at 1500 RPM and supplies power at 50 Hz frequency with a voltage of 230/400V. It is designed for continuous operation with a runtime of approximately 10.17 hours at full load. The generator’s cooling system is water-cooled, ensuring efficient temperature management, while the electronic governor maintains stable power regulation. This Hyundai diesel generator has a noise level of 75 dB at 1 meter and 70 dB at 7 meters under 75% load. The alternator model 224G is brushless with AVR voltage regulation, providing consistent output. The generator is equipped with a 180-liter fuel tank, supporting extended operation, and features busbar connection for easy integration. It weighs 1450 kg and measures 2500 x 950 x 1500 mm, making it a robust and durable power solution for industrial, commercial, or emergency use. The unit includes a 2 x 12V-60Ah battery system for starting and is compatible with automatic transfer switches (ATS) and manual transfer switches (MTS). It also features breakers for safety and protection, ensuring reliable performance in demanding conditions.
| Specification | Value |
| Model | DHY85KSE |
| Rated/Prime power (kVA) | 78 |
| Rated/Prime power (kW) | 62 |
| Max/Standby power (kVA) | 85 |
| Max/Standby power (kW) | 68 |
| Phase | Three |
| Voltage | 230 / 400 |
| Connection Method(s) | Busbar connection only |
| Rated Speed (RPM) | 1500 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 123 / 111 |
| Power Factor (Cosφ) | 0.8 |
| Fuel/Power Source | Diesel |
| Fuel Tank (Litres) | 180 |
| Runtime (Hours) @ 100% Load | 10.17 |
| Noise Level @ 1m 75% load (dB) | 75 |
| Noise Level @ 7m 75% load (dB) | 70 |
| Hyundai Diesel Engine Model | HY4A100Z D20 |
| Power Output (kw) | 70 |
| Displacement (CC) | 4840 |
| No. of Cylinders | 4 |
| Displacement (Litres) | 4.84 |
| Recommended Oil Type | SAE 15W40 |
| Oil Capacity (Litres) | 13 |
| Aspiration | Turbocharged |
| Fuel Regulation/Governor System | Electronic |
| Cooling system | Water-cooled |
| Alternator Model | 224G |
| Breakers | CDM1L-225L-125A- 4310 |
| Alternator Type | Brushless |
| Voltage Regulation | AVR |
| Net Weight (kg) | 1450 |
| Gross Weight (kg) | 1450 |
| Dimensions L x W x H (mm) | 2500 x 950 x 1500 |
| Battery System / Starting (V – Ah) | 2 x 12V-60Ah |
| ATS / MTS Compatible | Yes |
| Product Type | Diesel Generator |
Hyundai 85 kVA Diesel Generator DHY85KSE Applications
- Backup power for commercial buildings
- Construction site power supply
- Industrial machinery operation
- Emergency power during outages
Hyundai 85 kVA Diesel Generator DHY85KSE Benefits
- High power output with reliable performance
- Long runtime with large fuel tank
- Stable voltage regulation for sensitive equipment
- Durable and easy to maintain design
Hyundai 85 kVA Diesel Generator DHY85KSE Price List
| No. | Name | Price |
| 1 | Hyundai 85 kVA Diesel Generator DHY85KSE Price | Contact us |
