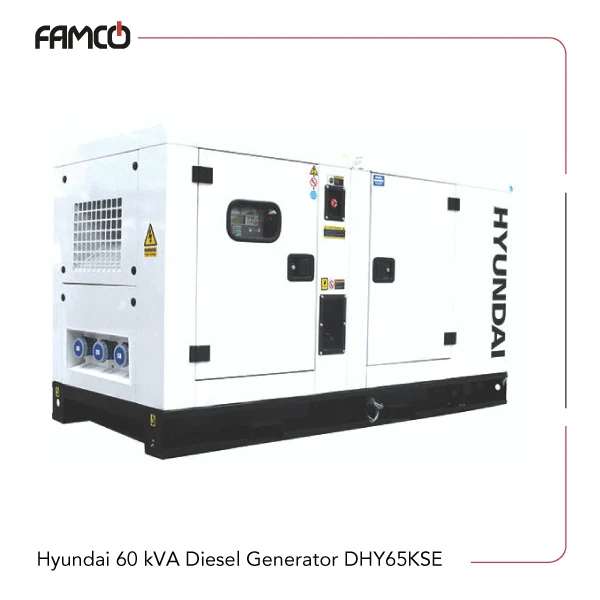

Hyundai 60 kVA Diesel Generator DHY65KSE Specifications
Hyundai 60 kVA diesel generator DHY65KSE provides steady power, with a rated output of 48 kW and a maximum of 52.8 kW. It uses a Hyundai HY4DX23-78D engine, which is turbocharged and cooled by water to work efficiently. The generator runs at 1500 RPM and delivers three-phase power at 230/400V with a power factor of 0.8. Its fuel tank holds 180 liters, which allows about 12.68 hours of operation at full load. This Hyundai diesel generator has an electronic governor system that controls fuel precisely and a brushless alternator model 224E with AVR voltage regulation to keep the output steady. Noise levels reach 73 dB at 1 meter and 68 dB at 7 meters under 75% load, so it suits different environments. The unit weighs 1290 kg and measures 2500 x 950 x 1500 mm. The control panel from ComAp AMF9 simplifies operation. It includes breakers rated 3P+N D80A 100mA and works with ATS/MTS systems for automatic transfer switching. At full load, the generator consumes 14.2 liters of fuel per hour. It uses SAE 15W40 oil, with an oil capacity of 11 liters. The starter system runs on a 2 x 12V/45Ah battery setup, ensuring consistent startup in various conditions.
| Specification | Value |
| Model | DHY65KSE |
| Rated/Prime Power (kVA) | 60 |
| Rated/Prime Power (kW) | 48 |
| Max/Standby Power (kVA) | 66 |
| Max/Standby Power (kW) | 52.8 |
| Phase | Three |
| Voltage | 230 / 400 |
| Connection Method(s) | 2 x 230V/32A 1 x 230V/63A Busbar |
| Rated Speed (RPM) | 1500 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 95 / 87 |
| Power Factor (Cosφ) | 0.8 |
| Fuel/Power Source | Diesel |
| Fuel Tank (Litres) | 180 |
| Runtime (Hours) @ 100% Load | 12.68 |
| Noise Level @ 1m 75% load (dB) | 73 |
| Noise Level @ 7m 75% load (dB) | 68 |
| Hyundai Diesel Engine Model | HY4DX23-78D |
| Power Output (kw) | 57 |
| Displacement (CC) | 3860 |
| No. of Cylinders | 4 |
| Displacement (Litres) | 3.86 |
| Recommended Oil Type | SAE 15W40 |
| Oil Capacity (Litres) | 11 |
| Aspiration | Turbocharged |
| Fuel Regulation/Governor System | Electronic |
| Fuel Consumption (100% Load) [Litres] | 14.2 |
| Cooling method | Water-cooled |
| Alternator Model | 224E |
| Breakers | 3P+N D80A 100mA |
| Alternator Type | Brushless |
| Voltage Regulation | AVR |
| Net Weight (kg) | 1290 |
| Gross Weight (kg) | 1290 |
| Dimensions L x W x H (mm) | 2500 x 950 x 1500 |
| Battery System / Starting (V – Ah) | 2 x 12/45 |
| ATS / MTS Compatible | Yes |

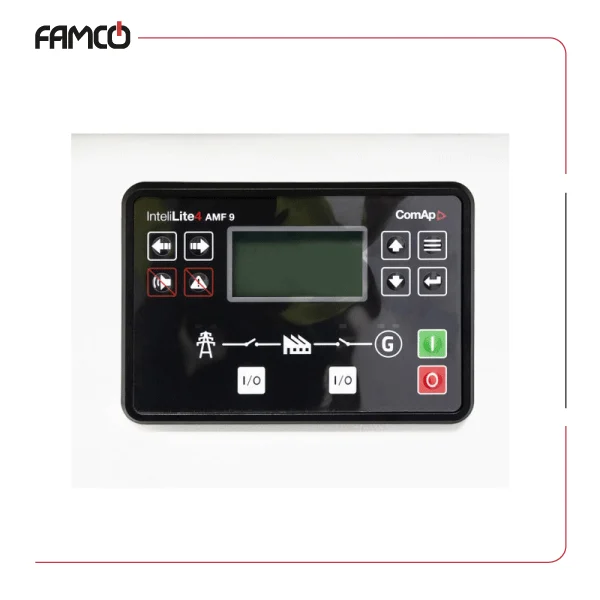

| Control Panel | ComAp AMF9 |
| Product Type | Diesel Generator |
Hyundai 60 kVA Diesel Generator DHY65KSE Applications
- Backup power for commercial buildings
- Construction site power supply
- Industrial machinery operation
- Event and outdoor power needs
Hyundai 60 kVA Diesel Generator DHY65KSE Benefits
- High power output with reliable performance
- Long runtime with large fuel tank capacity
- Stable voltage regulation for sensitive equipment
- Easy to operate with advanced control panel
Hyundai 60 kVA Diesel Generator DHY65KSEPrice List
| No. | Name | Price |
| 1 | Hyundai 60 kVA Diesel Generator DHY65KSE Price | Contact us |
