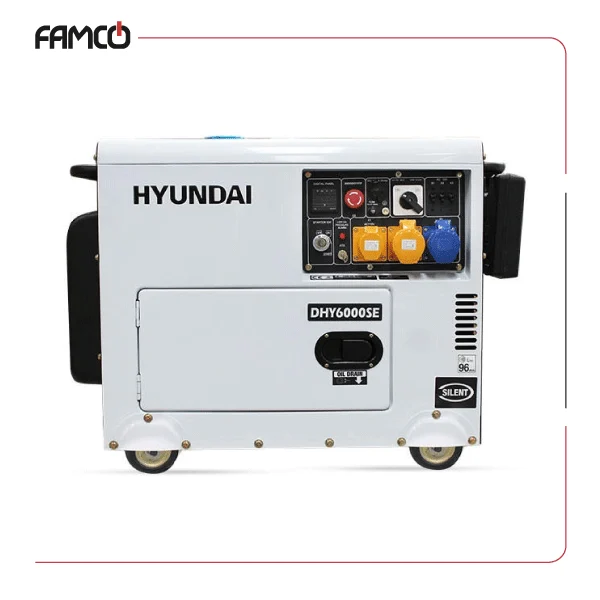

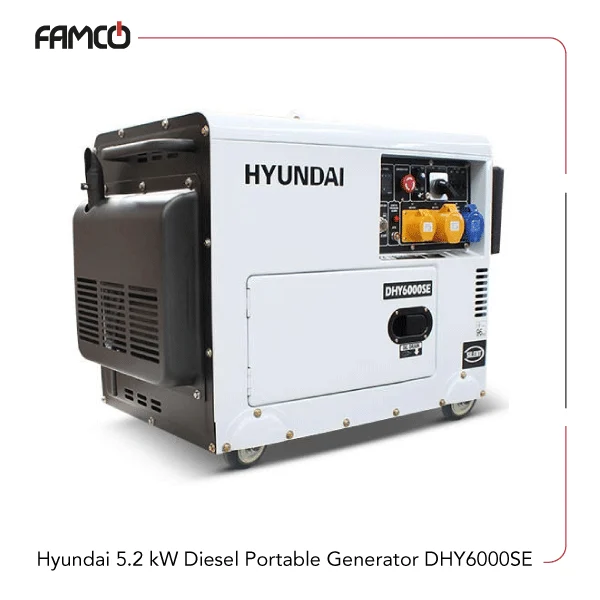

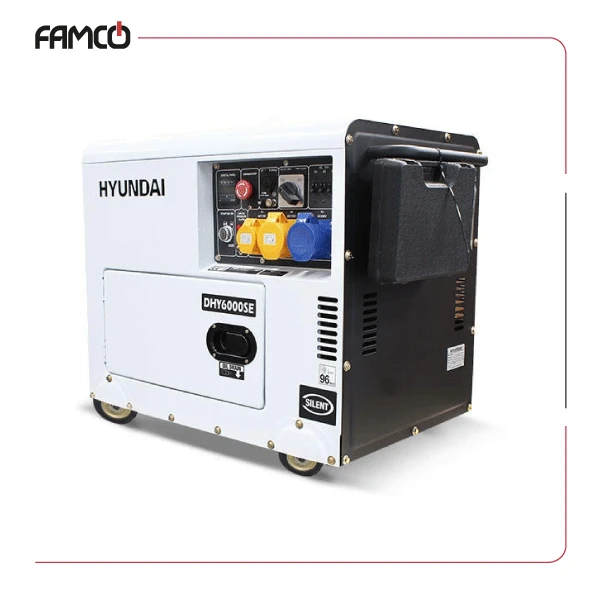

Hyundai 5.2 kW Diesel Portable Generator DHY6000SE Specifications
Hyundai 5.2 kW diesel portable generator DHY6000SE is built to meet a range of power needs. It runs on a single-phase system with a voltage of 115/230V. The rated power output is 5.6 kVA, with a maximum of 6.5 kVA. The unit runs at 3000 RPM and works on a 50Hz frequency. Power comes from the Hyundai D400E diesel engine, which delivers up to 10 horsepower and has a 418cc displacement. The engine uses natural aspiration and mechanical fuel control. At full load, it uses about 1.44 liters of fuel per hour. With a 13-liter fuel tank, the generator can operate for about 12.4 hours at full load. It provides several socket options: 115V/16A, 115V/32A, and 230V/32A, which allows use with different types of equipment. This Hyundai diesel portable generator includes a brushed alternator with voltage control that keeps power output steady. Cooling takes place through a forced air system. A built-in wheel kit allows easier movement. Noise levels reach 96 dB at 1 meter and about 70 dB at 7 meters under 75% load. The unit weighs 150 kg net and 158 kg gross, with dimensions of 920 x 520 x 740 mm. It comes with a 12V 36Ah battery and an LED control panel. It also works with ATS and MTS systems for automatic transfer control.
| Specification | Value |
| Model | DHY6000SE |
| Rated/Prime Power (kVA) | 5.6 |
| Rated/Prime Power (kW) | 4.5 |
| Max/Standby Power (kVA) | 6.5 |
| Max/Standby Power (kW) | 5.2 |
| Phase | Single |
| Voltage | 115/230 |

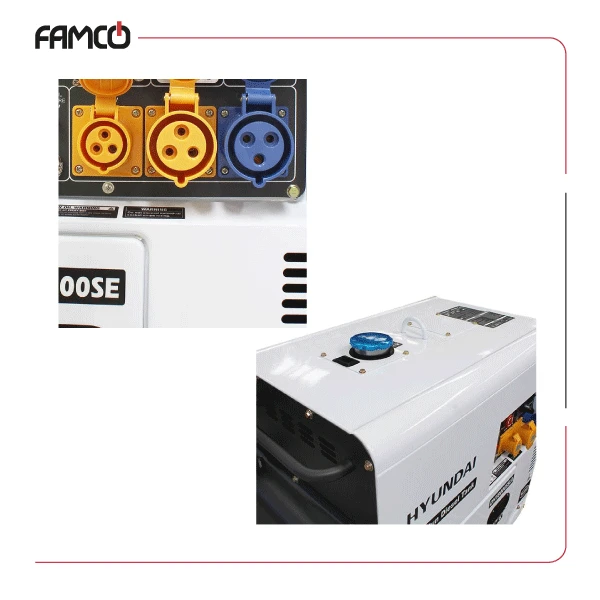

| Connection Method(s) | Sockets – 1 x 115V/16A, 1 x 115V/32A, 1 x 230V/32A |
| Rated Speed (RPM) | 3000 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 115v 46.1 / 39, 230v 23 / 19.5 |
| Power Factor (Cosφ) | 0.8 |
| Fuel/Power Source | Diesel |
| Fuel Tank (Litres) | 13 |
| Runtime (Hours) @ 100% Load | 12.4 |
| Noise Level @ 1m 75% load (dB) | 96 |
| Noise Level @ 7m 75% load (dB) | 70 |
| Hyundai Diesel Engine Model | D400E |
| Max Engine Power (hp) | 10 |
| Engine Displacement (CC) | 418 |
| No. of Cylinders | 1 |
| Displacement (Litres) | 418 |
| Recommended Oil Type | 15w40 / 10w40 |
| Oil Capacity (Litres) | 1.65 |
| Oil Filter Part No. | D400-B9+D400-B8 |
| Aspiration | Natural |
| Fuel Regulation/Governor System | Mechanical |
| Fuel Consumption (100% Load) [Litres] | 1.44 |
| Fuel Filter Part No. | D400-R05 |
| Cooling | Forced Air-Cooled |
| Alternator Model | D400-SO1-4 |
| Breakers | 1P 28A, 1P 19A, 1P 13A |
| Alternator Type | Brushed |
| Voltage Regulation | Alternator Voltage Regulation |
| Air Filter Part No. | D400-I4 |
| Net Weight (kg) | 150 |
| Gross Weight (kg) | 158 |
| Wheel Kit? | Yes |
| Product Dimensions L x W x H (mm) | 920 x 520 x 740 |
| Packaged Dimensions L x W x H (mm) | 960 x 560 x 810 |
| Battery (Ah) | 12v 36a/h |
| ATS / MTS Compatible | Yes |
| Control Panel | LED3 DISPLAY |
| Product Type | Diesel Generator |
Hyundai 5.2 kW Diesel Portable Generator DHY6000SE Applications
- Backup power for homes and offices
- Construction sites and outdoor events
- Emergency power supply during outages
- Powering tools and equipment in remote locations
Hyundai 5.2 kW Diesel Portable Generator DHY6000SE Benefits
- Reliable and consistent power output
- Easy to transport with wheel kit
- Long runtime of over 12 hours at full load
- Multiple socket options for versatility
Hyundai 5.2 kW Diesel Portable Generator DHY6000SE Price List
| No. | Name | Price |
| 1 | Hyundai 5.2 kW Diesel Portable Generator DHY6000SE Price | Contact us |
