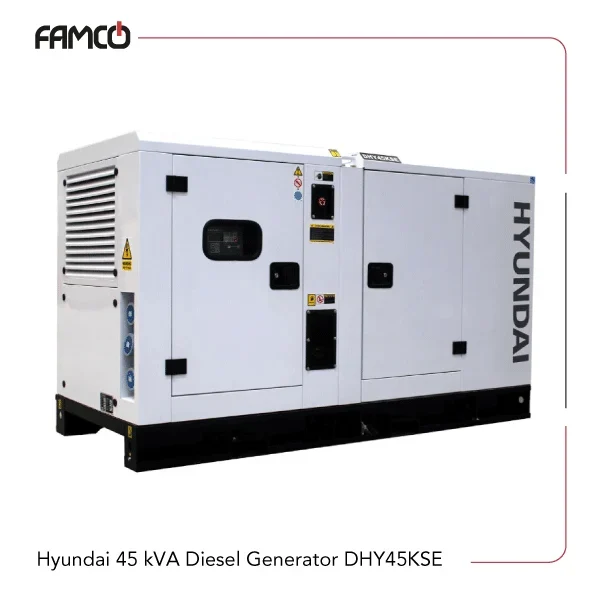

Hyundai 45 kVA Diesel Generator DHY45KSE Specifications
Hyundai 45 kVA diesel generator DHY45KSE provides dependable power with a rated output of 32 kW and a peak of 35 kW. It runs on a Hyundai HY4DX21-53D engine that has 4 cylinders and a displacement of 3.86 liters. This Hyundai diesel generator operates at 1500 RPM with a frequency of 50 Hz. It uses a water-cooled system and an electronic fuel control setup to maintain efficient operation. The fuel tank holds 93 liters, giving about 9.12 hours of use at full load. At 75% load, the noise level reaches 72 dB from one meter away. Power is supplied through a brushless alternator model 184J with AVR voltage control, which keeps the electricity steady. Connection options include 2 × 230 V / 32 A and 1 × 230 V / 63 A busbar outputs, suitable for different types of power setups. The generator weighs 1045 kg and measures 2200 × 950 × 1250 mm. It comes with two 2 V – 45 Ah batteries for starting and works with ATS / MTS systems for automatic power switching. Built for demanding conditions, this generator serves well as a backup power source or for use on construction sites and in industrial environments.
| Specification | Value |
| Model | DHY45KSE |
| Rated/Prime Power (kVA) | 40 |
| Rated/Prime Power (kW) | 32 |
| Max/Standby Power (kVA) | 45 |
| Max/Standby Power (kW) | 35 |
| Phase | Three |
| Voltage | 230 / 400 |
| Connection Method(s) | 2 x 230V/32A 1 x 230V/63A Busbar |
| Rated Speed (RPM) | 1500 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 64 / 57 |
| Power Factor (Cosφ) | 0.8 |
| Fuel/Power Source | Diesel |
| Fuel Tank (Litres) | 93 |
| Runtime (Hours) @ 100% Load | 9.12 |
| Noise Level @ 1m 75% load (dB) | 72 |
| Hyundai Diesel Engine Model | HY4DX21-53D |
| Power Output (kw) | 39 |
| Displacement (CC) | 3860 |
| No. of Cylinders | 4 |
| Displacement (Litres) | 3.86 |
| Recommended Oil Type | SAE 15W40 |
| Oil Capacity (Litres) | 11 |
| Aspiration | Natural |
| Fuel Regulation/Governor System | Electronic |
| Fuel Consumption (100% Load) [Litres] | 10.2 |
| Cooling system | Water-cooled |
| Alternator Model | 184J |
| Breakers | 3P+N C63A 100mA |
| Alternator Type | Brushless |
| Voltage Regulation | AVR |
| Net Weight (kg) | 1045 |
| Gross Weight (kg) | 1045 |
| Dimensions L x W x H (mm) | 2200 x 950 x 1250 |
| Battery System / Starting (V – Ah) | 2 x 1 2V-45Ah |
| ATS / MTS Compatible | Yes |
| Product Type | Diesel Generator |
Hyundai 45 kVA Diesel Generator DHY45KSE Applications
- Backup power for industrial facilities
- Construction site power supply
- Emergency power during outages
- Power for remote or off-grid locations
Hyundai 45 kVA Diesel Generator DHY45KSE Benefits
- High power output with reliable performance
- Long runtime thanks to large fuel tank
- Stable voltage with AVR regulation
- Versatile connection options for various setups
Hyundai 45 kVA Diesel Generator DHY45KSE Price List
| No. | Name | Price |
| 1 | Hyundai 45 kVA Diesel Generator DHY45KSE Price | Contact us |
