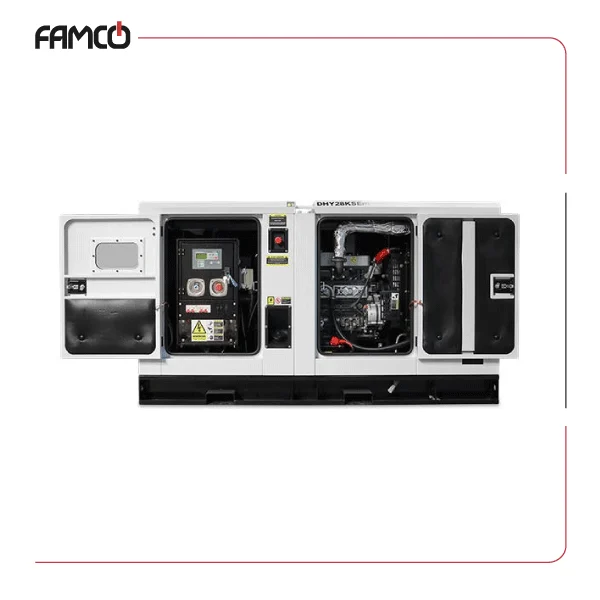

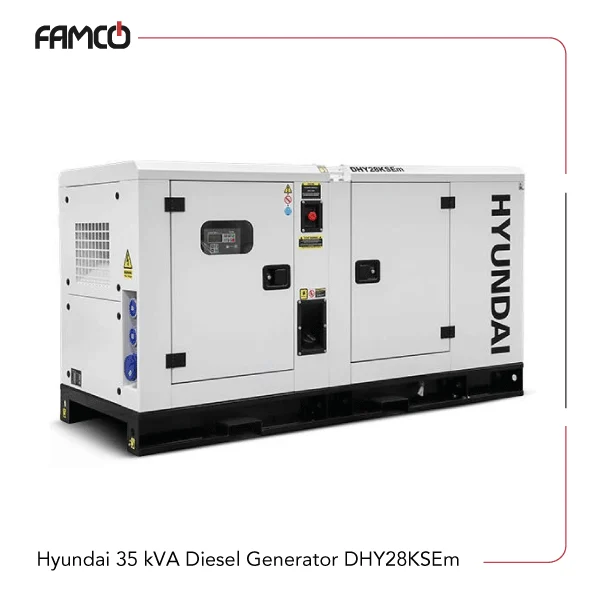

Hyundai 35 kVA Diesel Generator DHY28KSEm Specifications
Hyundai 35 kVA diesel generator DHY28KSEm delivers steady power with a rated output of 25 kW and a peak output of 28 kW. It uses a Hyundai HY4102 engine with four cylinders and a 3.8-liter capacity that runs at 1500 RPM. The unit operates on single-phase 230 V power and has a water-cooled system for better efficiency. Its 93-liter fuel tank allows up to 10 hours of use at full load. The noise level is 72 dB at 1 meter and 67 dB at 7 meters when under 75% load. This Hyundai diesel generator has a brushless alternator with AVR control for steady voltage output. It comes with a ComAp AMF9 control panel and supports both ATS and MTS setups. The total weight is 1020 kg, and its dimensions are 2200 × 950 × 1250 mm. The unit includes a mechanical fuel governor, holds 7.5 liters of oil, and uses SAE 15W40. The start system runs on a 12 V, 60 Ah battery, and two 100 A breakers provide safety protection.
| Specification | Value |
| Model | DHY28KSEm |
| Rated/Prime power (kVA) | 31.25 |
| Rated/Prime power (kW) | 25 |
| Max/Standby power (kVA) | 35 |
| Max/Standby power (kW) | 28 |
| Phase | Single |
| Voltage | 230 |
| Connection Method(s) | 2 x 230V/32A 1 x 230V/63A Busbar |
| Rated Speed (RPM) | 1500 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 121.7 / 108.7 |
| Power Factor (Cosφ) | 1 |
| Fuel/Power Source | Diesel |
| Fuel Tank (Litres) | 93 |
| Runtime (Hours) @ 100% Load | 10 |
| Noise Level @ 1m 75% load (dB) | 72 |
| Noise Level @ 7m 75% load (dB) | 67 |
| Hyundai Diesel Engine Model | HY4102 |
| Power Output (kW) | 33 |
| Displacement (CC) | 3800 |
| No. of Cylinders | 4 |
| Displacement (Litres) | 3.8 |
| Recommended Oil Type | SAE 15W40 |
| Oil Capacity (Litres) | 7.5 |
| Oil Filter Part No. | JX0814 |
| Aspiration | Natural |
| Fuel Regulation/Governor System | Mechanical |
| Fuel Consumption (100% Load) [Litres] | 9.3 |
| Cooling system | Water-cooled |
| Alternator Model | 184H |
| Breakers | 2P D100A 100mA |
| Alternator Type | Brushless |
| Voltage Regulation | AVR |
| Net Weight (kg) | 1020 |
| Gross Weight (kg) | 1020 |
| Dimensions L x W x H (mm) | 2200 x 950 x 1250 |
| Battery System / Starting (V – Ah) | 1x12V-60Ah |
| ATS / MTS Compatible | Yes |
| Control Panel | ComAp AMF9 |
Hyundai 35 kVA Diesel Generator DHY28KSEm Applications
- Backup power for industrial facilities
- Construction site power supply
- Remote location power generation
- Emergency power for hospitals and data centers
Hyundai 35 kVA Diesel Generator DHY28KSEm Benefits
- Reliable and consistent power output
- Long runtime with large fuel tank
- Easy to operate with advanced control panel
- Durable design suitable for harsh environments
Hyundai 35 kVA Diesel Generator DHY28KSEm Price List
| No. | Name | Price |
| 1 | Hyundai 35 kVA Diesel Generator DHY28KSEm Price | Contact us |
