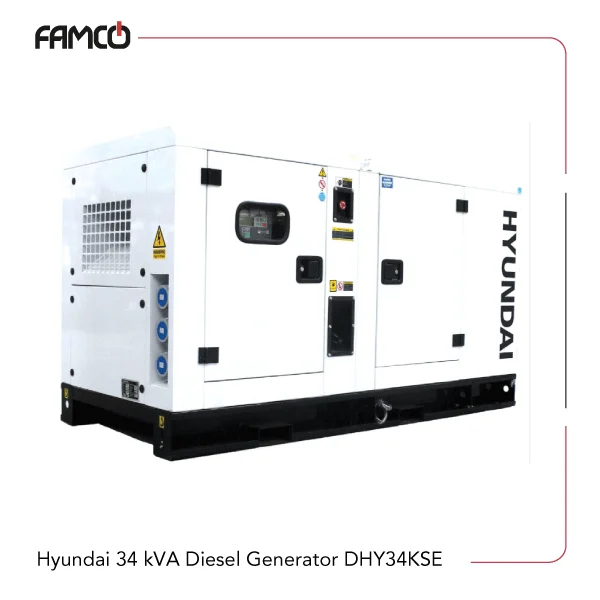

Hyundai 34 kVA Diesel Generator DHY34KSE Specifications
Hyundai 34 kVA diesel generator DHY34KSE supplies steady power with a rated output of 25 kW and a peak capacity of 34 kVA. It uses a Hyundai HY4102 engine with four cylinders that delivers 33 horsepower and a displacement of 3.8 liters. The unit runs at 1500 RPM with a 50 Hz frequency, suitable for many industrial uses and standby power needs. Its fuel tank holds 93 liters, enough for up to 10 hours of use at full load. The water-cooled system keeps the engine at an efficient temperature. This Hyundai diesel generator includes a brushless alternator model 184G with AVR voltage control and 63A circuit breakers. A mechanical governor manages fuel supply, and the fuel use rate is about 9.3 liters per hour at full load. Noise levels measure 72 dB at a distance of one meter and 67 dB at seven meters under a 75% load. The generator weighs 1000 kg, with dimensions of 2200 × 950 × 1250 mm, and it uses a 2V-60Ah battery for startup. It works with ATS or MTS systems for automatic power transfer, providing a dependable choice for standby or industrial applications.
| Specification | Value |
| Model | DHY34KSE |
| Rated/Prime Power (kVA) | 31 |
| Rated/Prime Power (kW) | 25 |
| Max Standby Power (kVA) | 34 |
| Max/Standby Power (kW) | 27 |
| Phase | Three |
| Voltage | 230 / 400 |
| Connection Method(s) | 2 x 230V/32A 1 x 230V/63A Busbar |
| Rated Speed (RPM) | 1500 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 49.1 / 45 |
| Power Factor (Cosφ) | 0.8 |
| Fuel/Power Source | Diesel |
| Fuel Tank (Litres) | 93 |
| Runtime (Hours) @ 100% Load | 10 |
| Noise Level @ 1m 75% load (dB) | 72 |
| Noise Level @ 7m 75% load (dB) | 67 |
| Hyundai Diesel Engine Model | HY4102 |
| Power Output (hp) | 33 |
| Displacement (CC) | 3857 |
| No. of Cylinders | 4 |
| Displacement (Litres) | 3.8 |
| Recommended Oil Type | SAE 15W40 |
| Oil Capacity (Litres) | 7.5 |
| Aspiration | Natural |
| Fuel Regulation/Governor System | Mechanical |
| Fuel Consumption (100% Load) [Litres] | 9.3 |
| Cooling system | Water-cooled |
| Alternator Model | 184G |
| Breakers | 3P+N C63A 100mA |
| Alternator Type | Brushless |
| Voltage Regulation | AVR |
| Net Weight (kg) | 1000 |
| Gross Weight (kg) | 1000 |
| Dimensions L x W x H (mm) | 2200 x 950 x 1250 |
| Battery System / Starting (V – Ah) | 1 x 2V-60Ah |
| ATS / MTS Compatible | Yes |
| Product Type | Diesel Generator |
Hyundai 34 kVA Diesel Generator DHY34KSE Applications
- Backup power for industrial facilities
- Construction site power supply
- Emergency power during outages
- Power for large commercial buildings
Hyundai 34 kVA Diesel Generator DHY34KSE Benefits
- Reliable and consistent power output
- Long runtime with a large fuel tank
- Durable Hyundai engine with water cooling
- Easy integration with automatic transfer systems
Hyundai 34 kVA Diesel Generator DHY34KSE Price List
| No. | Name | Price |
| 1 | Hyundai 34 kVA Diesel Generator DHY34KSE Price | Contact us |
There are no reviews yet.
