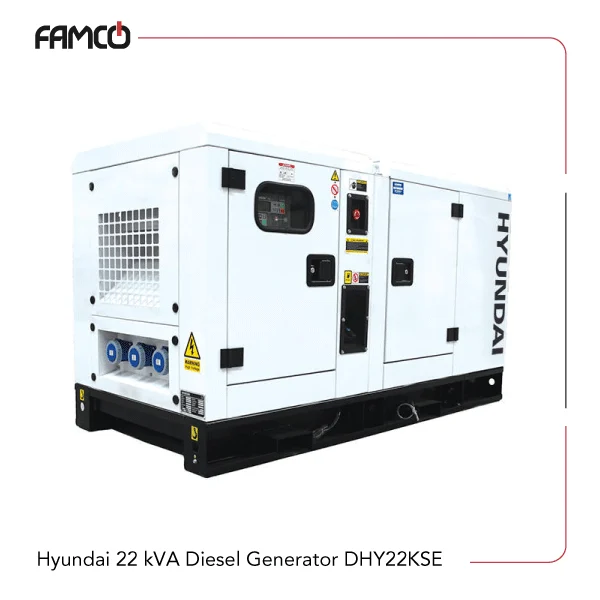

Hyundai 22 kVA Diesel Generator DHY22KSE Specifications

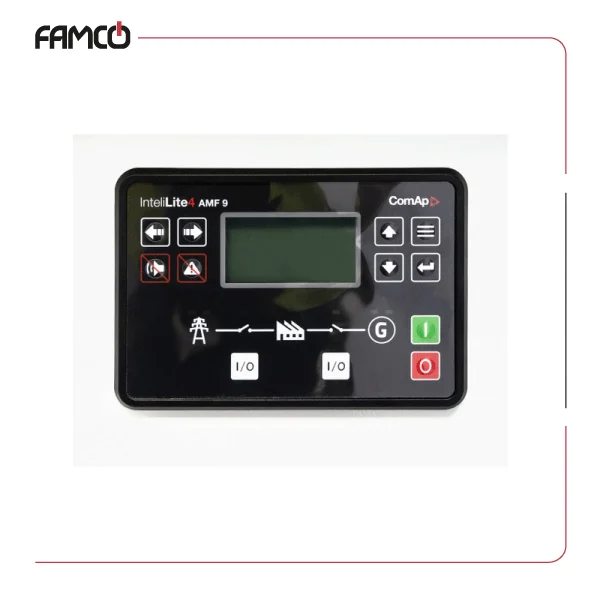

Hyundai 22 kVA diesel generator DHY22KSE delivers consistent power for industrial and commercial use. It provides 16 kW of rated power and 18 kW at maximum standby. This Hyundai diesel generator is powered by a Hyundai HY490 diesel engine with a 2.5-liter, four-cylinder design. It runs at 1500 RPM and produces electricity at 50 Hz. The unit comes with a brushless 184ES alternator with AVR voltage control for steady output. Its fuel tank holds 77.5 liters, which allows about 12.1 hours of operation at full load. Noise levels remain moderate, measured at 70 dB from 1 meter and 65 dB from 7 meters at 75% load. Fuel supply is controlled by a mechanical governor, and full-load consumption is around 6.2 liters per hour. Water cools the engine, and the generator includes a ComAp AMF9 control panel compatible with ATS/MTS systems. The generator measures 1900 mm long, 900 mm wide, and 1120 mm high, and it weighs 786 kg. Electrical connections include two 230V/32A outlets and a 230V/63A busbar. It uses a 12V battery for starting and features 63A circuit breakers to maintain safe operation.
| Specification | Value |
| Model | DHY22KSE |
| Rated/Prime power (kVA) | 20 |
| Rated/Prime Power (kW) | 16 |
| Max/Standby power (kVA) | 22 |
| Max/Standby Power (kW) | 18 |
| Phase | Three |
| Voltage | 230 / 400 |
| Connection Method(s) | 2 x 230V/32A 1 x 230V/63A Busbar |
| Rated Speed (RPM) | 1500 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 32 / 29 |
| Power Factor (Cosφ) | 0.8 |
| Fuel/Power Source | Diesel |
| Fuel Tank (Litres) | 77.5 |
| Runtime (Hours) @ 100% Load | 12.1 |
| Noise Level @ 1m 75% load (dB) | 70 |
| Noise Level @ 7m 75% load (dB) | 65 |
| Hyundai Diesel Engine Model | HY490 |
| Power Output (kw) | 21 |
| Displacement (CC) | 2500 |
| No. of Cylinders | 4 |
| Displacement (Litres) | 2.5 |
| Recommended Oil Type | SAE 15W40 |
| Oil Capacity (Litres) | 6.2 |
| Fuel Regulation/Governor System | Mechanical |
| Fuel Consumption (100% Load) [Litres] | 6.2 |
| Cooling | Water |
| Alternator Model | 184ES |
| Breakers | 3P+N C63A 100mA |
| Alternator Type | Brushless |
| Voltage Regulation | AVR |
| Net Weight (kg) | 786 |
| Gross Weight (kg) | 786 |
| Dimensions L x W x H (mm) | 1900 x 900 x 1120 |
| Battery System / Starting (V – Ah) | 1 x 12/60 |
| ATS / MTS Compatible | Yes |
| Control Panel | ComAp AMF9 |
| Product Type | Diesel Generator |
Hyundai 22 kVA Diesel Generator DHY22KSE Applications
- Backup power for commercial buildings
- Construction site power supply
- Industrial machinery operation
- Event and outdoor setups
Hyundai 22 kVA Diesel Generator DHY22KSE Benefits
- Reliable and consistent power output
- Long runtime with a large fuel tank
- Easy to operate with advanced control panel
- Durable Hyundai engine for longevity
Hyundai 22 kVA Diesel Generator DHY22KSE Price List
| No. | Name | Price |
| 1 | Hyundai 22 kVA Diesel Generator DHY22KSE Price | Contact us |
