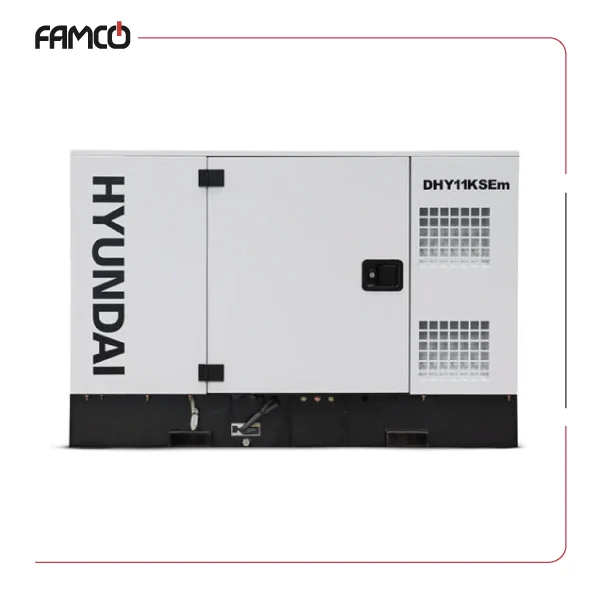

Hyundai 22 kVA Diesel Generator DHY11KSEm Specifications
Hyundai 22 kVA diesel generator DHY11KSEm offers reliable power with a rated output of 10 kW and a maximum of 11 kW. It features a Hyundai HY390 engine with 3 cylinders and a displacement of 1.815 liters, running at 1500 RPM. This Hyundai diesel generator operates on a 230V single-phase connection, with two connection options: 32A and 63A. It has a fuel tank capacity of 46 liters, providing approximately 12.11 hours of runtime at full load. Noise levels are maintained at 62 dB at 1 meter and 7 meters, making it suitable for various environments. The cooling system is water-cooled, ensuring efficient operation, and the alternator is a brushless model with AVR voltage regulation for stable power output. It includes a control panel (ComAp AMF9), and the unit is ATS/MTS compatible for automatic transfer switch integration. The generator weighs 655 kg and measures 1630 mm in length, 760 mm in width, and 1115 mm in height. It is equipped with a mechanical fuel regulation system, a battery system of 2x12V/30Ah, and breakers rated at 63A. This model is ideal for backup power, construction sites, and industrial applications, providing consistent and durable performance.
| Specification | Value |
| Model | DHY11KSEm |
| Rated/Prime Power (kVA) | 12.5 |
| Rated/Prime Power (kW) | 10 |
| Max/Standby Power (kVA) | 13.75 |
| Max/Standby Power (kW) | 11 |
| Phase | Single |
| Voltage | 230 |
| Connection Method(s) | 1 x 230V/32A 1 x 230V/63A |
| Rated Speed (RPM) | 1500 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 47.8 / 43.5 |
| Power Factor (Cosφ) | 1 |
| Fuel/Power Source | Diesel |
| Fuel Tank (Litres) | 46 |
| Runtime (Hours) @ 100% Load | 12.11 |
| Noise Level @ 1m 75% load (dB) | 62 |
| Noise Level @ 7m 75% load (dB) | 62 |
| Hyundai Diesel Engine Model | HY390 |
| Power Output (kw) | 13 |
| Displacement (CC) | 1815 |
| No. of Cylinders | 3 |
| Displacement (Litres) | 1.815 |
| Recommended Oil Type | SAE 15W40 |
| Oil Capacity (Litres) | 3.5 |
| Aspiration | Natural |
| Fuel Regulation/Governor System | Mechanical |
| Fuel Consumption (100% Load) [Litres] | 3.8 |
| Cooling system | Water-cooled |
| Alternator Model | 164C |
| Breakers | 2P C63A 100mA |
| Alternator Type | Brushless |
| Voltage Regulation | AVR |
| Net Weight (kg) | 655 |
| Gross Weight (kg) | 655 |
| Dimensions L x W x H (mm) | 1630 x 760 x 1115 |
| Battery System / Starting (V – Ah) | 2×12/30 |
| ATS / MTS Compatible | Yes |

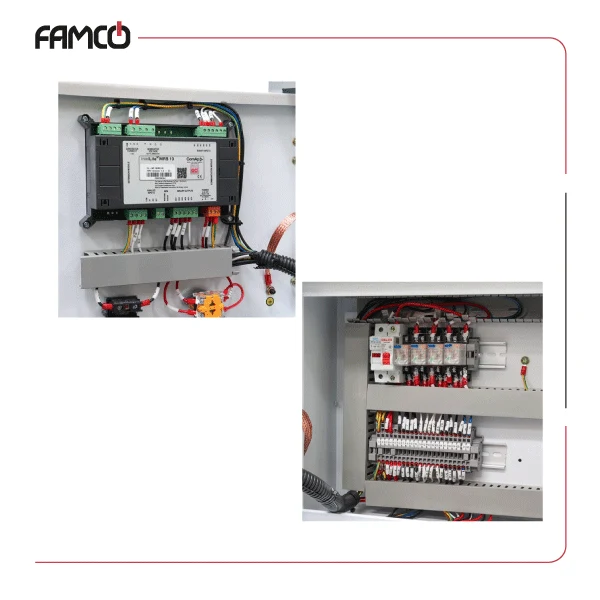

| Control Panel | ComAp AMF9 |
Hyundai 22 kVA Diesel Generator DHY11KSEm Applications
- Backup power for homes and businesses
- Construction sites and outdoor projects
- Industrial equipment operation
- Event and emergency power supply
Hyundai 22 kVA Diesel Generator DHY11KSEm Benefits
- Reliable and consistent power output
- Long runtime with a 46-liter fuel tank
- Quiet operation at 62 dB
- Easy integration with automatic transfer switches
Hyundai 22 kVA Diesel Generator DHY11KSEm Price List
| No. | Name | Price |
| 1 | Hyundai 22 kVA Diesel Generator DHY11KSEm Price | Contact us |
