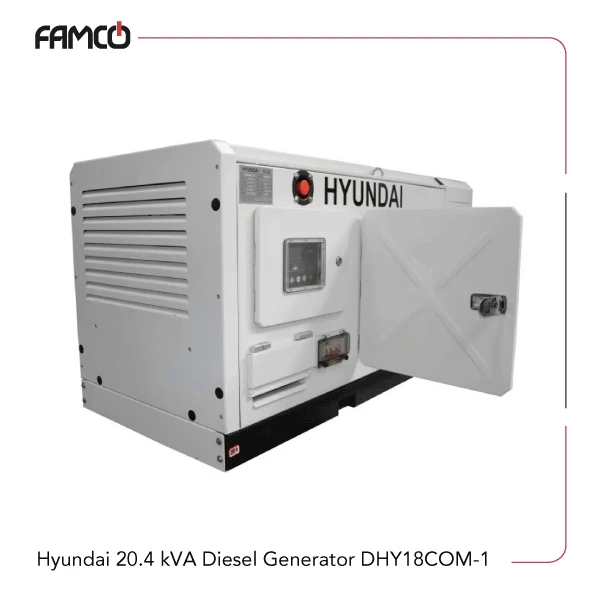

Hyundai 20.4 kVA Diesel Generator DHY18COM-1 Specifications
Hyundai 20.4 kVA diesel generator DHY18COM-1 delivers steady power for many types of use. It has a rated output of 17 kW and can reach up to 19 kVA at standby. The unit runs on a Hyundai 4DW91-29D engine with 1809 CC displacement and four cylinders, providing efficient power delivery. It operates at 1500 RPM and supports a single-phase supply at 230 volts. This model includes an electronic fuel control system and a water-cooled system for smooth operation. The 40-liter fuel tank supports around 10 hours of use at full capacity. Noise levels reach about 79.5 dB at a distance of 1 meter and 70 dB at 7 meters when used at 75% load. The brushless alternator features AVR voltage control for consistent power output. This Hyundai diesel generator also includes a 125A breaker, a 60Ah battery, and compatibility with ATS/MTS setups. It measures 1600 x 740 x 825 mm and weighs 520 kg net. This generator serves well for continuous use in industrial settings or as a dependable backup power source.
| Specification | Value |
| Model | DHY18COM-1 |
| Rated/Prime power (kVA) | 20.4 kVA |
| Rated/Prime power (kW) | 17 |
| Max/Standby power (kVA) | 19 |
| Max/Standby (kW) | 15 |
| Phase | Single |
| Voltage | 230V |
| Connection Method(s) | Busbar |
| Rated Speed (RPM) | 1500 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 69.6 |
| Power Factor (Cosφ) | 1 |
| Fuel/Power Source | Diesel |
| Fuel Tank (Litres) | 40 |
| Runtime (Hours) @ 100% Load | 10 |
| Noise Level @ 1m 75% load (dB) | 79.5 |
| Noise Level @ 7m 75% load (dB) | 70 |
| Hyundai Diesel Engine Model | 4DW91-29D |
| Power Output (kw) | 17 |
| Displacement (CC) | 1809 |
| No. of Cylinders | 4 |
| Displacement (Litres) | 1.809 |
| Recommended Oil Type | SAE 15W40 |
| Oil Capacity (Litres) | 8 |
| Aspiration | Natural |
| Fuel Regulation/Governor System | Electronic |
| Fuel Consumption (100% Load) [Litres] | 4.94 |
| Cooling SYSTEM | Water-COOLED |
| Alternator Model | GP184E |
| Breakers | Delixi 125A |
| Alternator Type | Brushless |
| Voltage Regulation | AVR |
| Net Weight (kg) | 520 |
| Gross Weight (kg) | 597 |
| Dimensions L x W x H (mm) | 1600 x 740 x 825 |
| Battery (Ah) | 1x12V-60Ah |
| ATS / MTS Compatible | Yes |
| Product Type | Diesel Generator |
Hyundai 20.4 kVA Diesel Generator DHY18COM-1 Applications
- Backup power for homes and offices
- Construction site power supply
- Industrial machinery operation
- Event and outdoor activities power source
Hyundai 20.4 kVA Diesel Generator DHY18COM-1 Benefits
- Reliable and stable power output
- Long runtime with 40-liter fuel tank
- Low noise levels for quiet operation
- Easy to install and maintain
