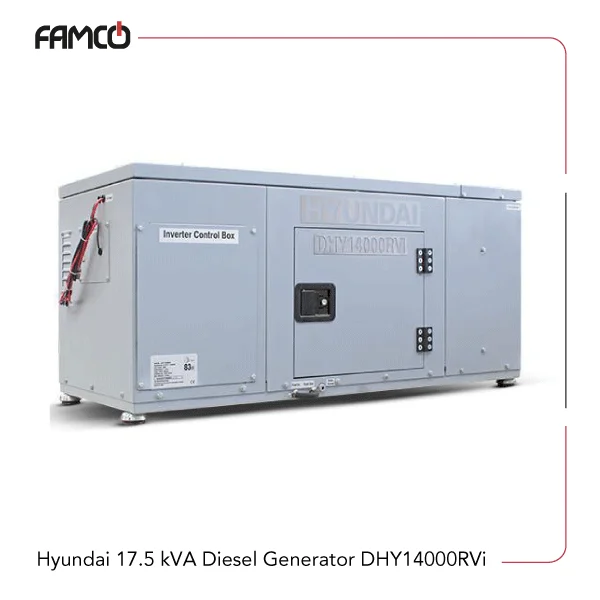

Hyundai 17.5 kVA Diesel Generator DHY14000RVi Specifications
Hyundai 17.5 kVA diesel generator DHY14000RVi has a compact size, measuring 1520 mm in height, 604 mm in width, and 750 mm in length, which fits well in a variety of settings. It weighs 345 kilograms, providing stability during use. It is powered by a Yanmar 3TNV76 diesel engine with a vertical layout. The engine runs at 50Hz, delivers a maximum power of 14 kW, a rated power of 12 kW, and has a variable speed between 1600 and 2400 RPM. The fuel tank capacity depends on the vehicle it is installed in, offering flexibility. Starting the engine is simple with a 12-volt electric start system. This Hyundai diesel generator can work with several voltages, including 110V, 220V, 240V, and 380V, which makes it suitable for different electrical setups. Oil capacity ranges from 1.6 to 3.8 milliliters, and the recommended oil types are 10w40 or 15w40. This device combines power and dependability in a small footprint, suitable for industrial, agricultural, or backup power use.
| Specification | Value |
| Dimensions (H x W x L) (mm) | 1520X604X750 |
| Dry Weight (kg) | 345 |
| Engine Model | Yanmar 3TNV76 Diesel Engine Model |
| Engine Type | Vertical |
| Frequency (Hz) | 50 |
| Fuel Tank Capacity (L) | Dependant On Vehicle Fuel Tank |
| Maximum Power (kW) | 14 |
| Oil Capacity (ml) | 1.6-3.8 |
| Rated Power (kW) | 12 |
| Rated Speed (RPM) | 1600-2400 |
| Start Method | 12v Electric Start |
| Voltage (VAC) | 110 / 220 / 240 / 380 |
| Recommended Oil Type | 10w40 / 15w40 |
Hyundai 17.5 kVA Diesel Generator DHY14000RVi Applications
- Backup power for homes and businesses
- Construction site power supply
- Agricultural equipment operation
- Industrial machinery support
Hyundai 17.5 kVA Diesel Generator DHY14000RVi Benefits
- Reliable and durable Yanmar engine
- Easy electric start system
- Versatile voltage compatibility
- Compact and lightweight design
Hyundai 17.5 kVA Diesel Generator DHY14000RVi Price List
| No. | Name | Price |
| 1 | Hyundai 17.5 kVA Diesel Generator DHY14000RVi Price | Contact us |
