Hyundai 125 kVA Diesel Generator DHY125KSE Specifications

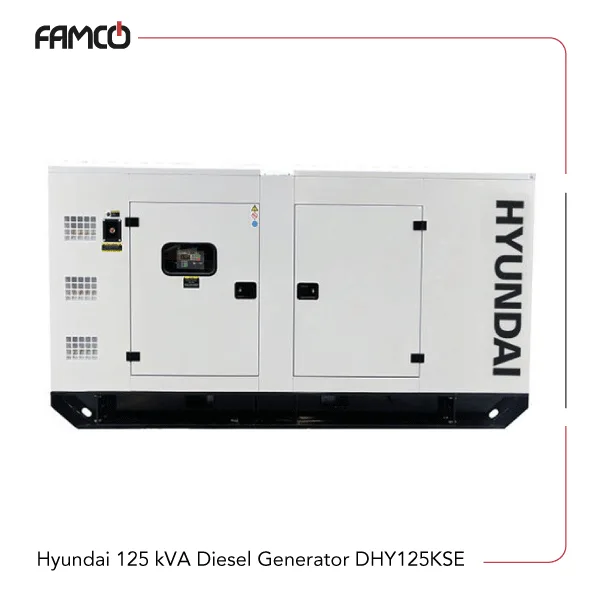

Hyundai 125 kVA diesel generator DHY125KSE provides a strong and steady source of power. It uses a Hyundai HY6B135Z D20 turbocharged engine with six cylinders and a 6.8-liter displacement. The unit runs at 1500 RPM and delivers 114 kVA (91 kW) of prime power, with a top output of 125 kVA (100 kW). It runs on diesel from a 275-liter tank, which allows about 11.46 hours of use at full load. The brushless alternator, model 274D, includes an automatic voltage regulator (AVR) that keeps the power level steady. This Hyundai diesel generator uses a water-cooling system to keep the temperature in check and has an electronic fuel control system for accurate fuel supply. A busbar connection method allows easy setup within larger power networks. The noise level is 75 dB at 1 meter and 70 dB at 7 meters under a 75% load, which keeps operation relatively quiet. The unit has a net weight of 1550 kg and dimensions of 3200 mm in length, 1050 mm in width, and 1760 mm in height. It holds 20 liters of SAE 15W40 oil and comes with an oil filter and a full water-cooling setup. The control panel is a ComAp AMF9 model that works with both automatic and manual transfer switches. This generator suits industrial, commercial, and backup power use, offering steady output, fuel efficiency, and simple system connection.
| Specification | Value |
| Model | DHY125KSE |
| Rated/Prime power (kVA) | 114 |
| Rated/Prime power (kW) | 91 |
| Max/Standby kVA | 125 |
| Max/Standby kW | 100 |
| Phase | Three |
| Voltage | 230 / 400 |
| Connection Method(s) | Busbar connection only |
| Rated Speed (RPM) | 1500 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 180 / 164 |
| Power Factor (Cosφ) | 0.8 |
| Fuel/Power Source | Diesel |
| Fuel Tank (Litres) | 275 |
| Runtime (Hours) @ 100% Load | 11.46 |
| Noise Level @ 1m 75% load (dB) | 75 |
| Noise Level @ 7m 75% load (dB) | 70 |
| Hyundai Diesel Engine Model | HY6B135Z D20 |
| No. of Cylinders | 6 |
| Displacement (Litres) | 6.8 |
| Recommended Oil Type | SAE 15W40 |
| Oil Capacity (Litres) | 20 |
| Oil Filter Part No. | 640-1012210A |
| Aspiration | Turbocharged |
| Fuel Regulation/Governor System | Electronic |
| Fuel Consumption (100% Load) [Litres] | 24 |
| Fuel Filter Part No. | 231-1105010 |
| Cooling system | Water-cooled |
| Alternator Model | 274D |
| Breakers | Yes |
| Alternator Type | Brushless |
| Voltage Regulation | AVR |
| Air Filter Part No. | B9600-1109101 |
| Net Weight (kg) | 1550 |
| Gross Weight (kg) | 1570 |
| Dimensions L x W x H (mm) | 3200 x 1050 x 1760 |
| Battery (Ah) | 24 |
| ATS / MTS Compatible | Yes |

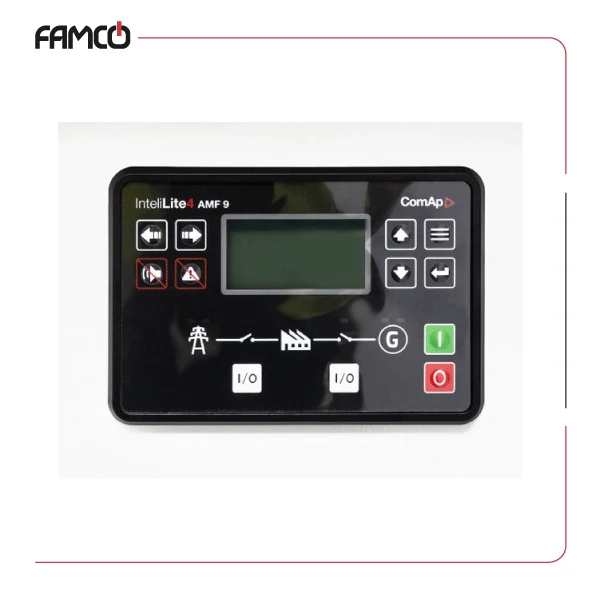

| Control Panel | ComAp AMF9 |
| Product Type | Diesel Generator |
Hyundai 125 kVA Diesel Generator DHY125KSE Applications
- Industrial power backup systems
- Construction sites requiring portable power
- Commercial facilities needing reliable energy
- Emergency power supply for critical infrastructure
Hyundai 125 kVA Diesel Generator DHY125KSE Benefits
- High power output with reliable performance
- Long runtime thanks to large fuel tank
- Quiet operation with low noise levels
- Easy integration with automatic transfer switches
Hyundai 125 kVA Diesel Generator DHY125KSE Price List
| No. | Name | Price |
| 1 | Hyundai 125 kVA Diesel Generator DHY125KSE Price | Contact us |
There are no reviews yet.
