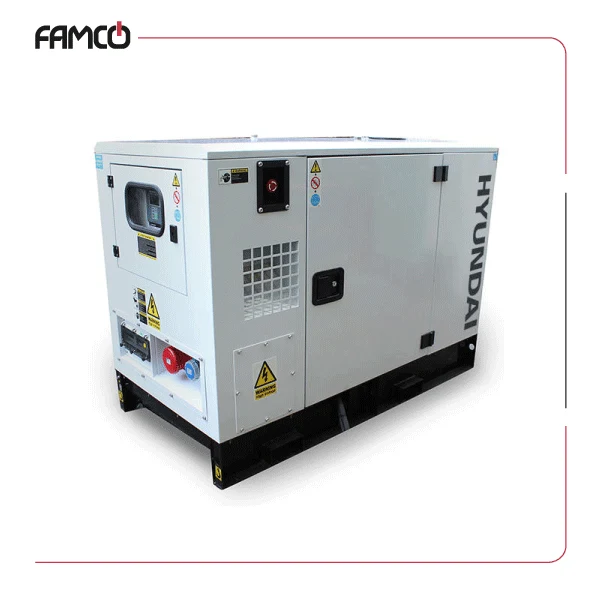

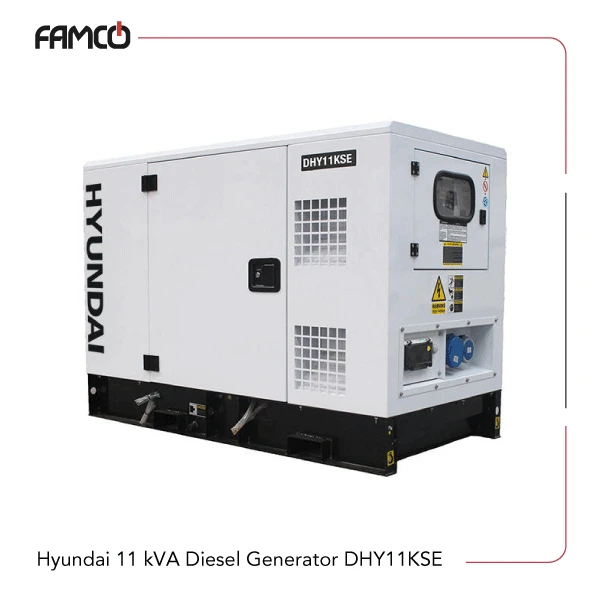

Hyundai 11 kVA Diesel Generator DHY11KSE Specifications
Hyundai 11 kVA diesel generator DHY11KSE delivers steady power with a rated output of 8 kW and a peak of 8.8 kW. It uses a Hyundai HY380 engine with a 1.36-liter, three-cylinder setup that runs at 1500 RPM. The unit supports three-phase power at 230V and 400V, suitable for industrial and commercial use. A water-cooled system helps control temperature, and a mechanical governor manages fuel flow for consistent output. The 42-liter fuel tank allows up to 12 hours of use at full load. Noise levels reach about 68 dB at one meter and 62 dB at seven meters under a 75% load. This Hyundai diesel generator includes a brushless alternator with AVR for steady voltage supply. It features a 3P+N breaker rated at 63A and works with both automatic and manual transfer switches (ATS/MTS). The unit weighs 480 kg and measures 1500 x 760 x 1090 mm, suitable for either fixed or movable setups. It starts through two 12V batteries rated at 30Ah each, ensuring a smooth start every time. Overall, the DHY11KSE provides dependable and efficient power for many backup or on-site energy needs.
| Specification | Value |
| Model | DHY11KSE |
| Rated/Prime power (kVA) | 10 |
| Rated/Prime power (kW) | 8 |
| Max/Standby power (kVA) | 11 |
| Max/Standby power (kW) | 8.8 |
| Phase | Three |
| Voltage | 230 / 400 |
| Connection Method(s) | 1 x 400v 63A 1 x 230v 16A |
| Rated Speed (RPM) | 1500 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 16 / 14 |
| Power Factor (Cosφ) | 0.8 |
| Fuel/Power Source | Diesel |
| Fuel Tank (Litres) | 42 |
| Runtime (Hours) @ 100% Load | 12 |
| Noise Level @ 1m 75% load (dB) | 68 |
| Noise Level @ 7m 75% load (dB) | 62 |
| Hyundai Diesel Engine Model | HY380 |
| Power Output (kw) | 11 |
| Displacement (CC) | 1360 |
| No. of Cylinders | 3 |
| Displacement (Litres) | 1.36 |
| Recommended Oil Type | SAE 15W40 |
| Oil Capacity (Litres) | 3.5 |
| Aspiration | Natural |
| Fuel Regulation/Governor System | Mechanical |
| Fuel Consumption (100% Load) [Litres] | 3.5 |
| Cooling system | Water-cooled |
| Alternator Model | 164B |
| Breakers | 3P+N C63A 100mA |
| Alternator Type | Brushless |
| Voltage Regulation | AVR |
| Net Weight (kg) | 480 |
| Gross Weight (kg) | 480 |
| Dimensions L x W x H (mm) | 1500 x 760 x 1090 |
| Battery System / Starting (V – Ah) | 2X12V – 30Ah |
| ATS / MTS Compatible | Yes |
| Product Type | Diesel Generator |
Hyundai 11 kVA Diesel Generator DHY11KSE Applications
- Backup power for industrial facilities
- Construction site power supply
- Emergency power for hospitals
- Large-scale events and outdoor activities
Hyundai 11 kVA Diesel Generator DHY11KSE Benefits
- High reliability with Hyundai engine and brushless alternator
- Long runtime of up to 12 hours at full load
- Quiet operation suitable for various environments
- Versatile connection options and compatibility with transfer switches
Hyundai 11 kVA Diesel Generator DHY11KSE Price List
| No. | Name | Price |
| 1 | Hyundai 11 kVA Diesel Generator DHY11KSE Price | Contact us |
There are no reviews yet.
