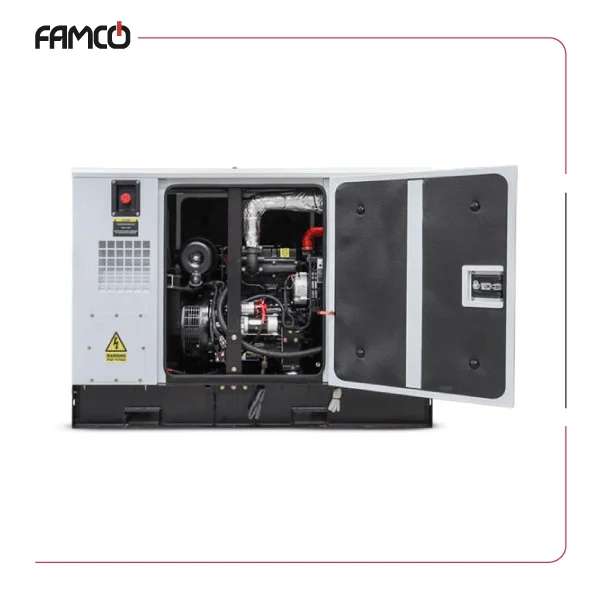

Hyundai 11.25 kVA Diesel Generator DHY9KSEm Specifications

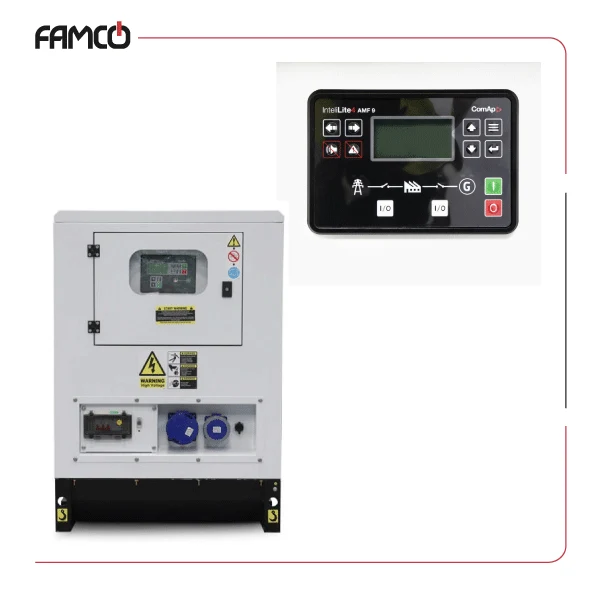

The DHY9KSEm diesel generator provides steady power for many uses. It delivers 8 kW of rated power and up to 9 kW at peak output, suitable for backup energy needs. The unit runs on a Hyundai HY380 engine with a 1.36-liter, three-cylinder setup that ensures efficient fuel use. It operates at 1500 RPM and supports a single-phase supply at 230V. A water-cooled system helps control engine temperature, and a mechanical fuel control system keeps power stable. The 42-liter fuel tank supports up to 12 hours of use at full capacity. Noise levels reach about 68 dB at one meter and 62 dB at seven meters under a 75% load, which keeps it fairly quiet for its size. The generator includes a brushless alternator with AVR for steady voltage output. This Hyundai diesel generator comes with a ComAp AMF9 control panel and supports ATS or MTS setups for automatic power transfer. With a weight of 480 kg and dimensions of 1500 x 760 x 1090 mm, the unit is solid yet manageable for different work areas. Safety features include dual circuit breakers (2P C40A 100mA). It starts through two 12V batteries rated at 30 Ah each.
| Specification | Value |
| Model | DHY9KSEm |
| Rated/Prime power (kVA) | 10 |
| Rated/Prime power (kW) | 8 |
| Max/Standby power (kVA) | 11.25 |
| Max/Standby power (kW) | 9 |
| Phase | Single |
| Voltage | 230 |
| Connection Method(s) | 1 x 230V/32A 1 x 230V/63A |
| Rated Speed (RPM) | 1500 |
| Frequency (Hz) | 50 |
| Max/Continuous Current (Amps) | 39 / 34.8 |
| Power Factor (Cosφ) | 1 |
| Fuel/Power Source | Diesel |
| Fuel Tank (Litres) | 42 |
| Runtime (Hours) @ 100% Load | 12 |
| Noise Level @ 1m 75% load (dB) | 68 |
| Noise Level @ 7m 75% load (dB) | 62 |
| Hyundai Diesel Engine Model | HY380 |
| Power Output (kw) | 11 |
| Displacement (CC) | 1360 |
| No. of Cylinders | 3 |
| Displacement (Litres) | 1.36 |
| Recommended Oil Type | SAE 15W40 |
| Aspiration | Natural |
| Fuel Regulation/Governor System | Mechanical |
| Fuel Consumption (100% Load) [Litres] | 3.5 |
| Cooling system | Water-cooled |
| Alternator Model | 164B |
| Breakers | 2P C40A 100mA |
| Alternator Type | Brushless |
| Voltage Regulation | AVR |
| Net Weight (kg) | 480 |
| Gross Weight (kg) | 480 |
| Dimensions L x W x H (mm) | 1500 x 760 x 1090 |
| Battery System / Starting (V – Ah) | 2×12/30 |
| ATS / MTS Compatible | Yes |
| Control Panel | ComAp AMF9 |
| Product Type | Diesel Generator |
Hyundai 11.25 kVA Diesel Generator DHY9KSEm Applications
- Emergency backup power for hospitals and data centers
- Construction sites requiring portable power
- Industrial facilities needing reliable energy supply
- Commercial buildings for peak load management
Hyundai 11.25 kVA Diesel Generator DHY9KSEm Benefits
- High power output with efficient Hyundai engine
- Long runtime of up to 12 hours at full load
- Quiet operation with noise levels of 62-68 dB
- Easy integration with automatic transfer systems
Hyundai 11.25 kVA Diesel Generator DHY9KSEm Price List
| No. | Name | Price |
| 1 | Hyundai 11.25 kVA Diesel Generator DHY9KSEm Price | Contact us |
