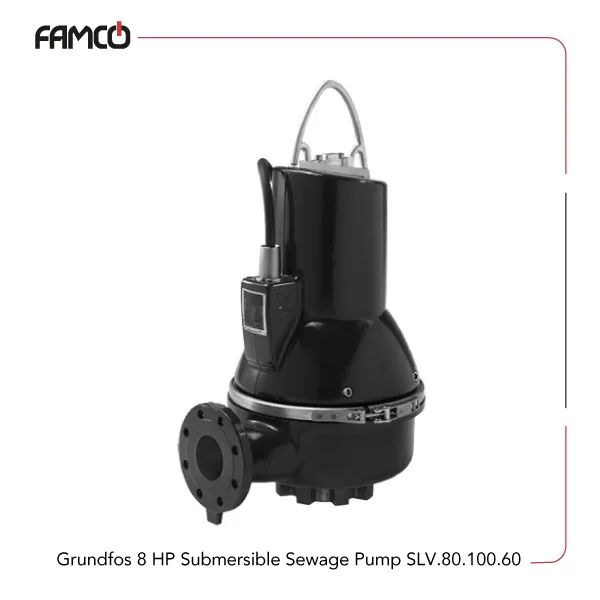

Grundfos 8 HP Submersible Sewage Pump SLV.80.100.60

6 kW (8 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Sewage pump Tags: Grundfos Pumps, Grundfos Sewage Pumps, Grundfos Submersible Pumps

Overview of Grundfos 8 HP Submersible Sewage Pump SLV.80.100.60

The SLV.80.100.60 8 HP pump is uniquely designed for industrial and commercial use, especially where handling solids and warm liquids is necessary. Its powerful motor and durable construction make it suitable for applications like wastewater treatment, slurry transfer, and chemical processing. The SuperVortex impeller helps prevent clogging and allows for efficient pumping of solids. With a high insulation class and a good temperature range, it is built for long-term use in tough environments. Its ability to start up to 20 times per hour makes it flexible for different operational needs. Overall, this pump offers a reliable, efficient, and versatile solution for various liquid transfer tasks.

Grundfos 8 HP Submersible Sewage Pump SLV.80.100.60 Specifications

This pump operates on a three-phase power supply, providing a robust 6 kW (8.1 HP) of power. It features a 4-pole motor running at 2940 rpm, ensuring efficient performance for various applications. The pump can handle a maximum liquid temperature of 40°C, making it suitable for processing warm liquids. Its insulation class is H, which offers high thermal resistance and durability. The Grundfos submersible pump is equipped with a SuperVortex impeller, designed to handle solids up to 80 mm in size, making this line of products ideal for applications involving slurry or semi-solid materials. It can operate up to 20 times per hour, with a breakdown torque of 97 Nm, providing reliable operation under demanding conditions. The pH range of 4 to 14 indicates good chemical resistance, suitable for various liquids. The maximum solids size and temperature specifications of this SLV series Grundfos sewage pump ensure the pump can handle challenging environments without damage or performance loss.

Specification	Value
Voltage	three-phase
Power (kW)	6
Power (HP)	8.1
Number of poles	4
Speed (rpm)	2940
Breakdown torque M max (Nm)	97
Max. liquid temperature (°C)	40
Pump insulation class	H
Max. solids size (mm)	80
Impeller type	SuperVortex
pH	4-14
Max. number of starts per hour	20

Grundfos 8 HP Submersible Sewage Pump SLV.80.100.60 Performance Data

Grundfos 8 HP Submersible Sewage Pump SLV.80.100.60 Applications

Wastewater and sewage treatment
Slurry and semi-solid transfer
Chemical processing
Industrial fluid handling

Grundfos 8 HP Submersible Sewage Pump SLV.80.100.60 Benefits

Handles solids up to 80 mm easily
High durability with insulation class H
Suitable for warm liquids up to 40°C
Reliable operation with 20 starts per hour

Grundfos 8 HP Submersible Sewage Pump SLV.80.100.60 Price List

No.	Name	Price
1	Grundfos 8 HP Submersible Sewage Pump SLV.80.100.60 Price	Contact us

Brand	Grundfos
Applications	Sewage management, Small treatment plants or lift stations, Wastewater management
Power (kW)	6
Power (HP)	8
Speed (RPM)	2940
Number of Poles	4
Number of Phases	Three-phase
