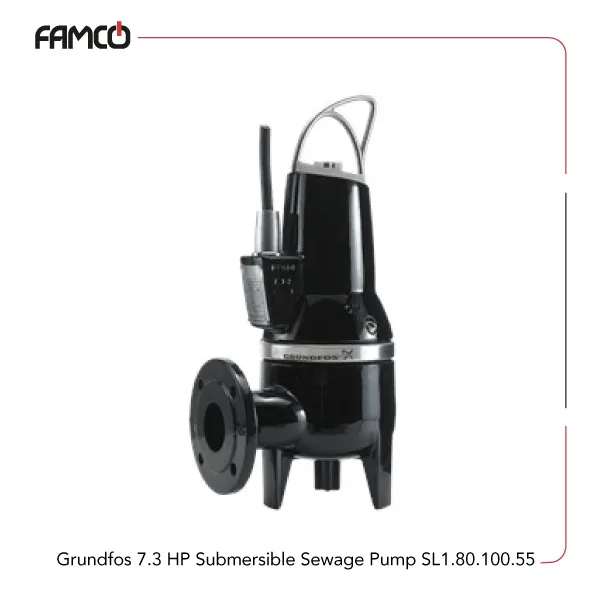

Grundfos 7.3 HP Submersible Sewage Pump SL1.80.100.55 Specifications
This pump operates on a three-phase power supply, providing a robust 5.5 kW (7.3 HP) of power. It features a four-pole motor running at 1463 rpm, ensuring efficient performance. The pump can handle a maximum liquid temperature of 40°C, making it suitable for various industrial and water transfer applications. It has a breakdown torque of 120 Nm, which supports heavy-duty operations. The pump’s insulation class is H, indicating this Grundfos submersible pump‘s high thermal resistance and durability. It can process liquids with pH levels from 4 to 14, accommodating a wide range of fluids. The impeller is of the S tube type, designed for effective fluid movement. This Grundfos sewage pump can handle solids up to 80 mm in size, making it ideal for slurry and wastewater applications. Overall, this pump combines power, durability, and versatility, suitable for demanding environments requiring reliable fluid transfer and handling.
| Specification | Value |
| Voltage | three-phase |
| Power (kW) | 5.5 |
| Power (HP) | 7.3 |
| Number of poles | 4 |
| Speed (rpm) | 1463 |
| Breakdown torque M max (Nm) | 120 |
| Max. liquid temperature (°C) | 40 |
| Pump insulation class | H |
| Max. solids size (mm) | 80 |
| Impeller type | S tube |
| pH | 4-14 |
Grundfos 7.3 HP Submersible Sewage Pump SL1.80.100.55 Performance Data
Grundfos 7.3 HP Submersible Sewage Pump SL1.80.100.55 Applications
- Water treatment plants
- Agricultural irrigation
- Industrial fluid transfer
- Wastewater management
Grundfos 7.3 HP Submersible Sewage Pump SL1.80.100.55 Benefits
- High power and efficiency for demanding tasks
- Handles solids up to 80 mm for versatile use
- Durable insulation class H for long-lasting performance
- Wide pH range suitable for various liquids
Grundfos 7.3 HP Submersible Sewage Pump SL1.80.100.55 Price List
| No. | Name | Price |
| 1 | Grundfos 7.3 HP Submersible Sewage Pump SL1.80.100.55 Price | Contact us |
