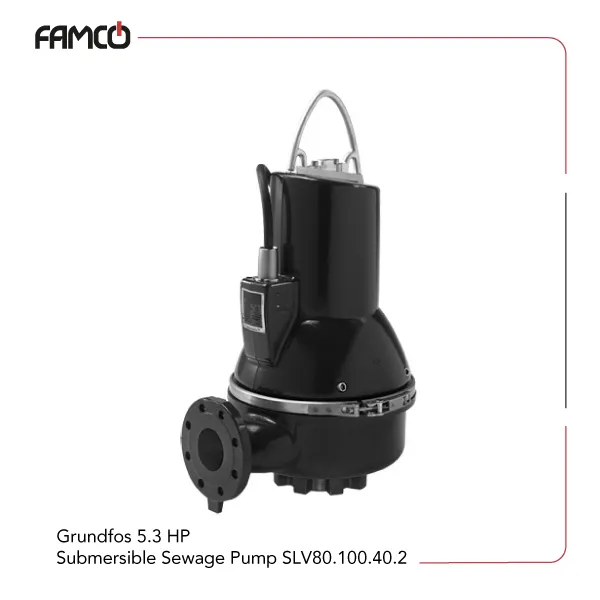

Grundfos 5.4 HP Submersible Sewage Pump SLV.80.100.40.2 Specifications
This pump operates on a three-phase power supply, providing a robust 4 kW (5.4 HP) of power. It features a 4-pole motor running at 1464 rpm, ensuring this Grundfos sewage pump operates with efficient performance. The pump has a breakdown torque of 98 Nm, suitable for handling demanding tasks. It can handle liquids up to 40°C and is equipped with a SuperVortex impeller, ideal for pumping solids up to 80 mm in size. The insulation class is H, offering high durability and safety. It supports a wide pH range from 4 to 14, making it versatile for various liquids. The Grundfos submersible pump‘s design ensures reliable operation in different industrial applications, especially where solids are present in the liquid being pumped.
| Specification | Value |
| Voltage | three-phase |
| Power (kW) | 4 |
| Power (HP) | 5.4 |
| Number of poles | 4 |
| Speed (rpm) | 1464 |
| Breakdown torque M max (Nm) | 98 |
| Max. liquid temperature (°C) | 40 |
| Pump insulation class | H |
| Max. solids size (mm) | 80 |
| Impeller type | SuperVortex |
| pH | 4-14 |

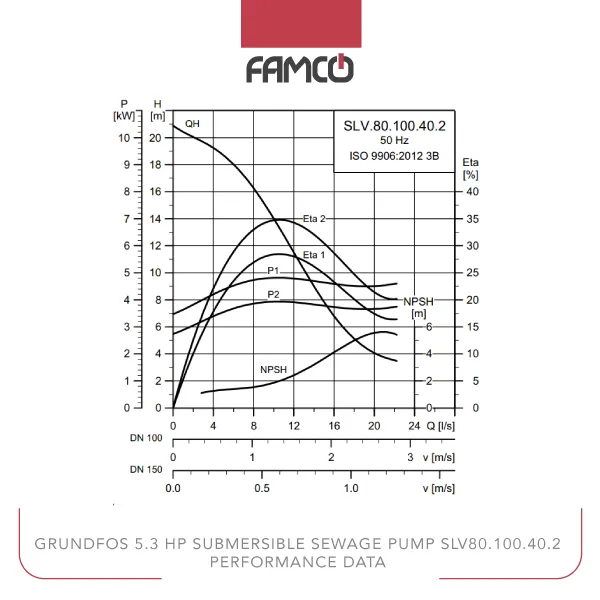

Grundfos 5.4 HP Submersible Sewage Pump SLV.80.100.40.2 Performance Data
Grundfos 5.4 HP Submersible Sewage Pump SLV.80.100.40.2 Applications
- Wastewater treatment plants
- Slurry and solid transfer
- Chemical processing
- Industrial drainage systems
Grundfos 5.4 HP Submersible Sewage Pump SLV.80.100.40.2 Benefits
- Handles solids up to 80 mm easily
- Reliable performance with high torque
- Suitable for various chemical conditions
- Durable insulation class H for long-lasting use
Grundfos 5.4 HP Submersible Sewage Pump SLV.80.100.40.2 Price List
| No. | Name | Price |
| 1 | Grundfos 5.4 HP Submersible Sewage Pump SLV.80.100.40.2 Price | Contact us |
