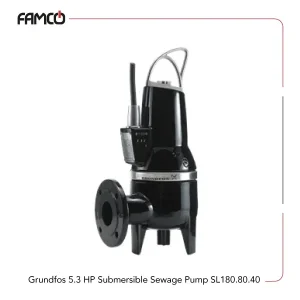

Grundfos 5.3 HP Submersible Sewage Pump SL1.80.100.40 Specifications
This pump operates on a three-phase power supply, providing a reliable 4 kW (5.3 HP) of power. It features a 4-pole motor running at 1464 rpm, suitable for various industrial applications. The pump can handle a maximum liquid temperature of 40°C, making it ideal for processing hot liquids. Its pump insulation class is H, ensuring durability and safety during operation. The impeller is of S tube type, designed for efficient fluid movement. It can handle solids up to 80 mm in size, so that this Grundfos submersible pump can pass liquids even if they contain amounts of solids. The Grundfos sewage pump is capable of withstanding a breakdown torque of 98 Nm, providing robust performance under load. The pH range of 4 to 14 indicates it can operate with a wide variety of liquids, from acidic to alkaline, without corrosion or damage.
| Specification | Value |
| Voltage | three-phase |
| Power (kW) | 4 |
| Power (HP) | 5.3 |
| Number of poles | 4 |
| Speed (rpm) | 1464 |
| Breakdown torque M max (Nm) | 98 |
| Max. liquid temperature (°C) | 40 |
| Pump insulation class | H |
| Max. solids size (mm) | 80 |
| Impeller type | S tube |
| pH range | 4-14 |

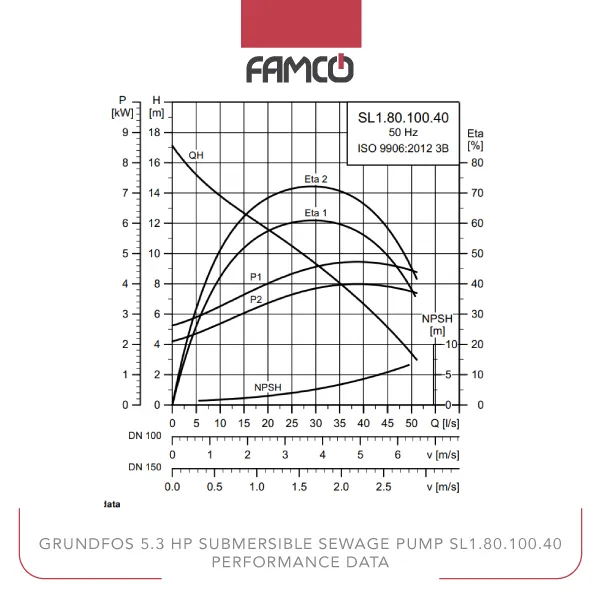

Grundfos 5.3 HP Submersible Sewage Pump SL1.80.100.40 Performance Data
Grundfos 5.3 HP Submersible Sewage Pump SL1.80.100.40 Applications
- Wastewater treatment plants
- Chemical processing industries
- Food and beverage production
- Slurry and semi-solid material transfer
Grundfos 5.3 HP Submersible Sewage Pump SL1.80.100.40 Benefits
- Handles solids up to 80 mm for versatile use
- Operates efficiently within a broad pH range of 4-14
- Durable H class insulation for long-lasting performance
- Reliable three-phase power for consistent operation
Grundfos 5.3 HP Submersible Sewage Pump SL1.80.100.40 Price List
| No. | Name | Price |
| 1 | Grundfos 5.3 HP Submersible Sewage Pump SL1.80.100.40 Price | Contact us |
