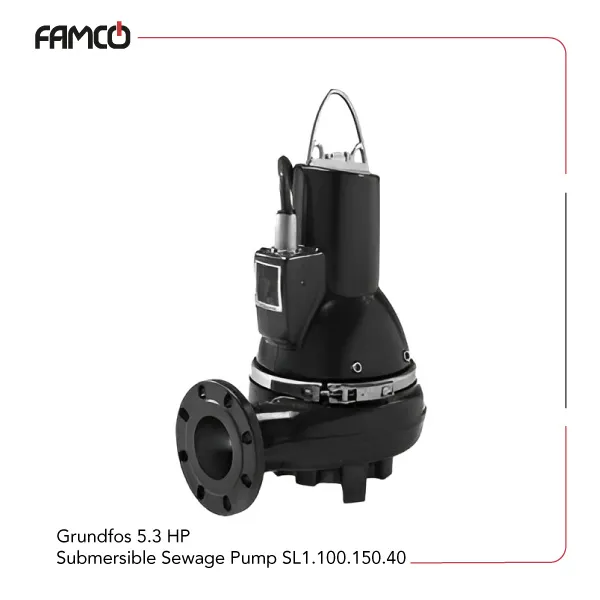

Grundfos 5.3 HP Submersible Sewage Pump SL1.100.150.40 Specifications
This pump operates on a three-phase power supply, providing a robust 4 kW (5.4 HP) of power. It features a 4-pole motor running at 1465 rpm, suitable for various demanding applications. The pump can handle a maximum liquid temperature of 40°C, making it ideal for liquids that require moderate heating conditions. Its insulation class is H, ensuring durability and safety during operation. This SL series Grundfos sewage pump‘s impeller is of the S tube type, designed for efficient fluid movement. It can process liquids with a pH range from 4 to 14, accommodating a wide variety of chemical compositions. The Grundfos submersible pump passes solids up to 100 mm in size, making it suitable for slurry or semi-solid liquids. The maximum breakdown torque is 98 Nm, providing reliable performance under heavy loads. It features 4 poles, which contribute to its steady operation and efficiency in continuous use.
| Specification | Value |
| voltage | three-phase |
| power (kW) | 4 |
| power (HP) | 5.4 |
| number of poles | 4 |
| speed (rpm) | 1465 |
| Breakdown torque M max (Nm) | 98 |
| max. liquid temperature (°C) | 40 |
| pump insulation class | H |
| Max. solids size (mm) | 100 |
| impeller type | S tube |
| pH | 4-14 |

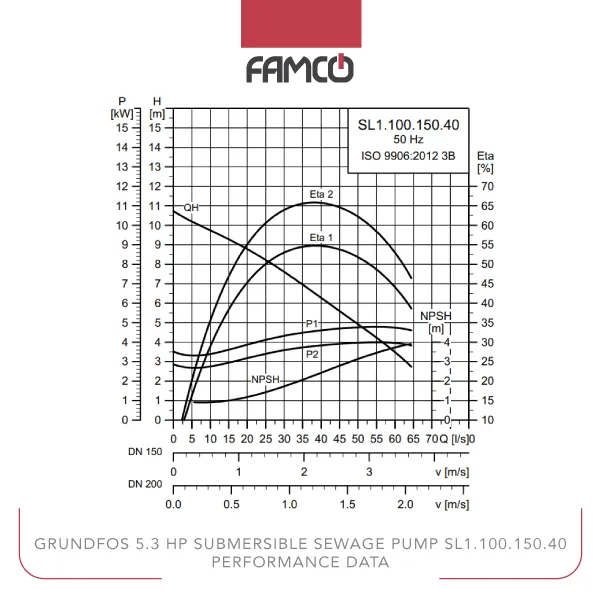

Grundfos 5.3 HP Submersible Sewage Pump SL1.100.150.40 Performance Data
Grundfos 5.3 HP Submersible Sewage Pump SL1.100.150.40 Applications
- Wastewater and sewage transfer
- Chemical processing and handling
- Slurry and semi-solid liquid pumping
- Industrial fluid transfer systems
Grundfos 5.3 HP Submersible Sewage Pump SL1.100.150.40 Benefits
- High durability with H class insulation
- Capable of handling solids up to 100 mm
- Wide pH range compatibility (4-14)
- Reliable performance with 4-pole motor and steady RPM
Grundfos 5.3 HP Submersible Sewage Pump SL1.100.150.40 Price List
| No. | Name | Price |
| 1 | Grundfos 5.3 HP Submersible Sewage Pump SL1.100.150.40 Price | Contact us |
