Grundfos 5.3 HP Submersible Sewage Pump SL1.100.100.40 Specifications
This pump operates on a three-phase power supply, providing a robust 4 kW (5.4 HP) of power. It features a 4-pole motor running at 1464 rpm, ensuring efficient performance. The pump can handle a maximum liquid temperature of 40°C, making it suitable for various industrial applications. Its insulation class is H, which offers high thermal resistance and durability. The impeller inside this Grundfos submersible pump is of the S tube type, designed for effective fluid movement. It can process liquids with a pH range from 4 to 14, accommodating a wide variety of chemical and water solutions. The Grundfos sewage pump can handle solids up to 100 mm in size, making it versatile for different slurry or liquid-solid mixtures. The breakdown torque reaches up to 98 Nm, providing reliable operation under load. The pump’s design includes 4 poles, contributing to its steady and consistent performance during continuous operation.
| Specification | Value |
| Voltage | three-phase |
| Power (kW) | 4 |
| Power (HP) | 5.3 |
| Number of poles | 4 |
| Speed (rpm) | 1464 |
| Breakdown torque M max (Nm) | 98 |
| Max. liquid temperature (°C) | 40 |
| Pump insulation class | H |
| Max. solids size (mm) | 100 |
| Impeller type | S tube |
| pH | 4-14 |

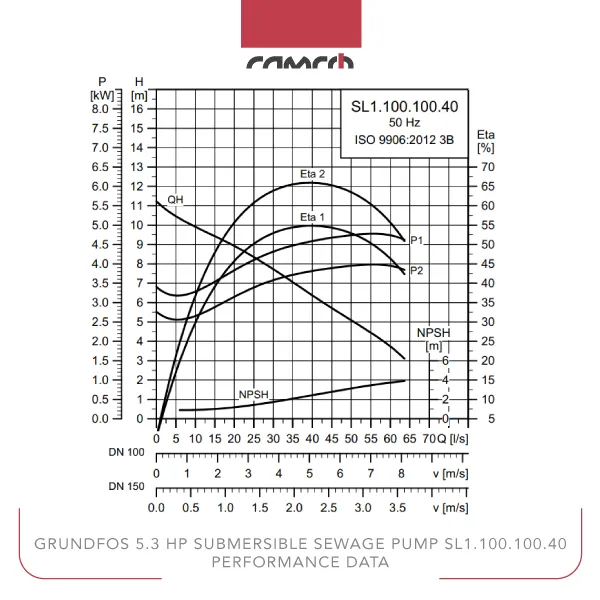

Grundfos 5.3 HP Submersible Sewage Pump SL1.100.100.40 Performance Data
Grundfos 5.3 HP Submersible Sewage Pump SL1.100.100.40 Applications
- Chemical processing plants
- Water treatment facilities
- Slurry and liquid-solid transfer
- Industrial fluid handling
Grundfos 5.3 HP Submersible Sewage Pump SL1.100.100.40 Benefits
- High durability with H class insulation
- Can handle large solids up to 100 mm
- Reliable performance with 4-pole motor
- Suitable for a wide pH range from 4 to 14
Grundfos 5.3 HP Submersible Sewage Pump SL1.100.100.40 Price List
| No. | Name | Price |
| 1 | Grundfos 5.3 HP Submersible Sewage Pump SL1.100.100.40 Price | Contact us |
