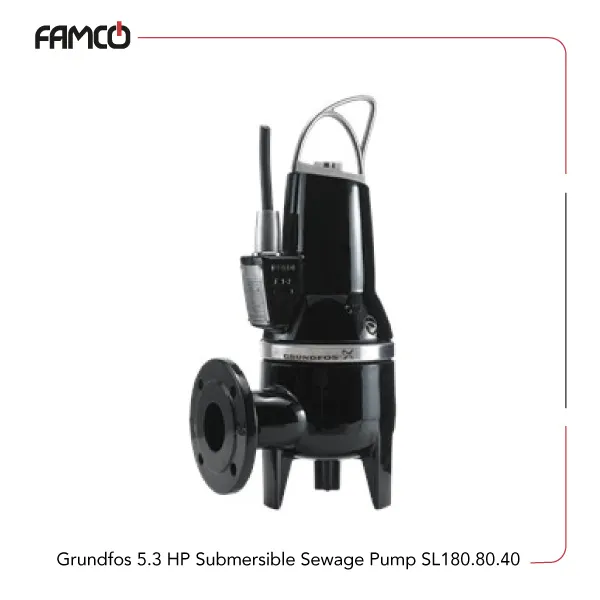

Grundfos 5.3 HP Submersible Sewage Pump SL1.80.80.40

4 kW (5.3 HP)

Three-phase

Reviews

Download Catalogue Call Us

Quality Guarantee
Technical Advice
After Sales Service

To inquire about the price, contact the experts of Famco

Categories: Submersible Pump, Sewage pump Tags: Grundfos Pumps, Grundfos Sewage Pumps, Grundfos Submersible Pumps

Overview of Grundfos 5.3 HP Submersible Sewage Pump SL1.80.80.40

The SL1.80.80.40 industrial Grundfos pump (5.3 HP) is designed for demanding applications where power and durability are essential. It runs on a three-phase power supply, providing consistent performance. With a power output of 4 kW, it can handle liquids with solids up to 80 mm in size. Its high breakdown torque ensures it can manage heavy loads without issues. The pump is suitable for liquids up to 40°C, making it versatile for various industries. Its robust construction and high insulation class make it reliable for long-term use. The S tube impeller design improves fluid flow, enhancing efficiency. Whether used in wastewater treatment, chemical processing, or other industrial sectors, this pump offers a good balance of power and resilience.

Grundfos 5.3 HP Submersible Sewage Pump SL1.80.80.40 Specifications

This pump operates on a three-phase power supply, providing a reliable 4 kW (5.3 HP) of power. It features a 4-pole motor running at 1464 rpm, ensuring efficient performance. The pump can handle a maximum solids size of 80 mm, making it suitable for various industrial applications involving solids. It has a breakdown torque of 98 Nm, which indicates its capacity to withstand high loads without failure. The pump’s insulation class is H, providing this Grundfos submersible pump with high thermal resistance and durability. It is designed to work with liquids up to 40°C, making it ideal for a range of processing environments. The impeller of this Grundfos sewage pump is of the S tube type, which helps in efficient fluid movement. The pH range for the liquids it can handle is from 4 to 14, allowing it to operate in both acidic and alkaline conditions. Overall, this pump combines power, durability, and versatility, making it suitable for demanding industrial applications involving liquids with solids.

Specification	Value
voltage	three-phase
power (kW)	4
power (HP)	5.3
number of poles	4
speed (rpm)	1464
Breakdown torque M max (Nm)	98
max. liquid temperature (°C)	40
pump insulation class	H
Max. solids size (mm)	80
impeller type	S tube
pH	4-14

Grundfos 5.3 HP Submersible Sewage Pump SL1.80.80.40 Performance Data

Grundfos 5.3 HP Submersible Sewage Pump SL1.80.80.40 Applications

Wastewater treatment plants
Chemical processing industries
Industrial fluid transfer
Handling liquids with solids

Grundfos 5.3 HP Submersible Sewage Pump SL1.80.80.40 Benefits

High power output for demanding tasks
Durable construction with high insulation class
Handles solids up to 80 mm efficiently
Suitable for a wide pH range from 4 to 14

Grundfos 5.3 HP Submersible Sewage Pump SL1.80.80.40 Price List

No.	Name	Price
1	Grundfos 5.3 HP Submersible Sewage Pump SL1.80.80.40 Price	Contact us

Brand	Grundfos
Applications	Sewage management, Small treatment plants or lift stations, Wastewater management
Power (kW)	4
Power (HP)	5.3
Number of Phases	Three-phase
Number of Poles	4
Speed (RPM)	1462
