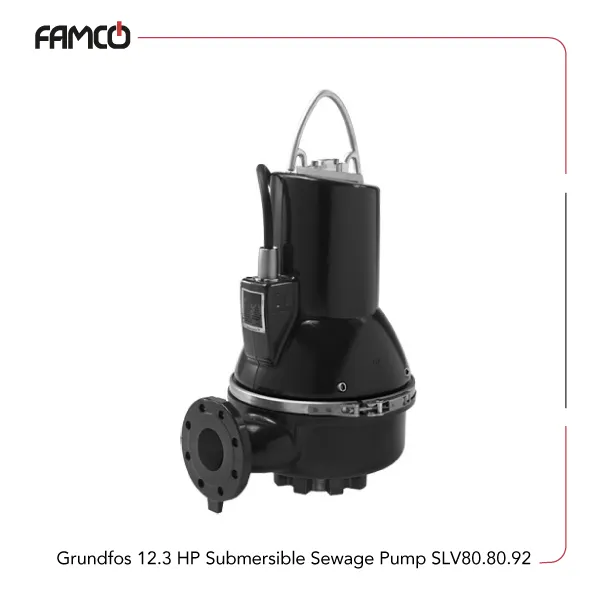

Grundfos 12.3 HP Submersible Sewage Pump SLV.80.80.92 Specifications
This pump operates on a three-phase power supply, providing a robust 9.2 kW (12.5 HP) of power. It features a two-pole motor running at 2921 rpm, ensuring efficient performance. The device can handle a maximum liquid temperature of 40°C, making it suitable for various industrial applications. Its pump insulation class is H, which offers high thermal resistance and durability. This series of the Grundfos submersible pumps, has its SuperVortex type impeller, designed to handle solids up to 80 mm in size without clogging. The maximum breakdown torque is 123 Nm, providing this Grundfos sewage pump with satisfactory operation even under heavy loads. It is compatible with liquids having a pH range of 4 to 14, making it versatile for different chemical environments. Overall, this pump combines power, durability, and versatility, ideal for demanding liquid transfer tasks in industrial settings.
| Specification | Value |
| Voltage | three-phase |
| Power (kW) | 9.2 |
| Power (HP) | 12.5 |
| Number of poles | 2 |
| Speed (rpm) | 2921 |
| Breakdown torque M max (Nm) | 123 |
| Max. liquid temperature (°C) | 40 |
| Pump insulation class | H |
| Max. solids size (mm) | 80 |
| Impeller type | SuperVortex |
| pH | 4-14 |

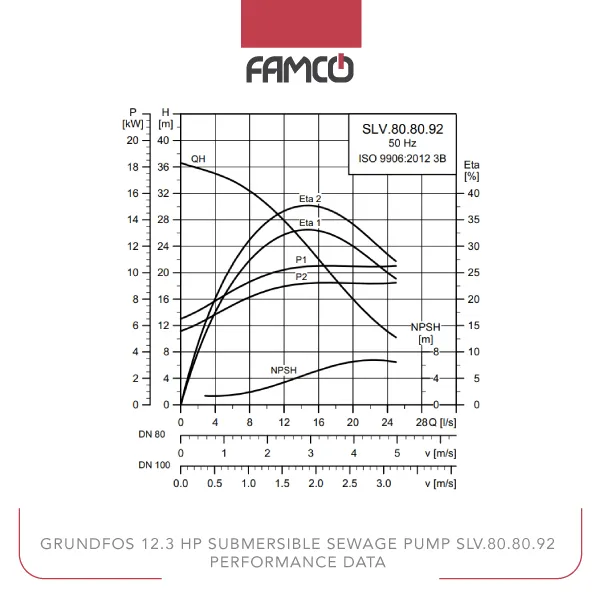

Grundfos 12.3 HP Submersible Sewage Pump SLV.80.80.92 Performance Data
Grundfos 12.3 HP Submersible Sewage Pump SLV.80.80.92 Applications
- Chemical processing plants
- Wastewater treatment facilities
- Industrial fluid transfer
- Agricultural irrigation systems
Grundfos 12.3 HP Submersible Sewage Pump SLV.80.80.92 Benefits
- Handles solids up to 80 mm, reducing clogging
- High thermal resistance with insulation class H
- Reliable operation with a breakdown torque of 123 Nm
- Suitable for various liquids with pH 4-14
Grundfos 12.3 HP Submersible Sewage Pump SLV.80.80.92 Price List
| No. | Name | Price |
| 1 | Grundfos 12.3 HP Submersible Sewage Pump SLV.80.80.92 Price | Contact us |
