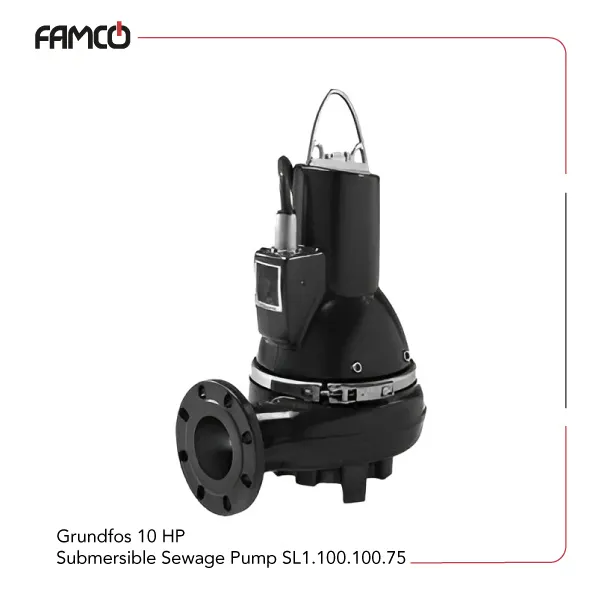

Grundfos 10 HP Submersible Sewage Pump SL1.100.100.75 Specifications
This pump operates on a three-phase power supply, providing a robust 7.5 kW (10.1 HP) of power. It features a 4-pole motor running at 1463 RPM, ensuring efficient performance. The device can handle a maximum liquid temperature of 40°C, making it suitable for various industrial applications. Its pump insulation class is H, which offers high thermal resistance and durability. The pump’s impeller is of the S tube type, designed for effective fluid movement. It can process liquids with a pH range from 4 to 14, accommodating a wide variety of chemical and water solutions. The maximum size of solids that this Grundfos pump suitable for submerged applications can handle is 100 mm, making it suitable for pumping semi-solid materials. The Grundfos sewage pump also delivers a breakdown torque of 177 Nm, ensuring reliable operation under load. With four poles, the motor maintains a steady speed of 1463 RPM, optimized for continuous use in demanding environments.
| Specification | Value |
| voltage | three-phase |
| power (kW) | 7.5 |
| power (HP) | 10.1 |
| number of poles | 4 |
| speed rpm | 1463 |
| breakdown torque Nm | 177 |
| max liquid temperature C | 40 |
| pump insulation class | H |
| max solids size (mm) | 100 |
| impeller type | S tube |
| pH range | 4-14 |
Grundfos 10 HP Submersible Sewage Pump SL1.100.100.75 Performance Data
Grundfos 10 HP Submersible Sewage Pump SL1.100.100.75 Applications
- Water treatment plants
- Chemical processing industries
- Industrial fluid transfer
- Wastewater management
Grundfos 10 HP Submersible Sewage Pump SL1.100.100.75 Benefits
- High durability with H class insulation
- Can handle solids up to 100 mm
- Suitable for liquids with pH 4-14
- Reliable performance with 177 Nm torque
Grundfos 10 HP Submersible Sewage Pump SL1.100.100.75 Price List
| No. | Name | Price |
| 1 | Grundfos 10 HP Submersible Sewage Pump SL1.100.100.75 Price | Contact us |
