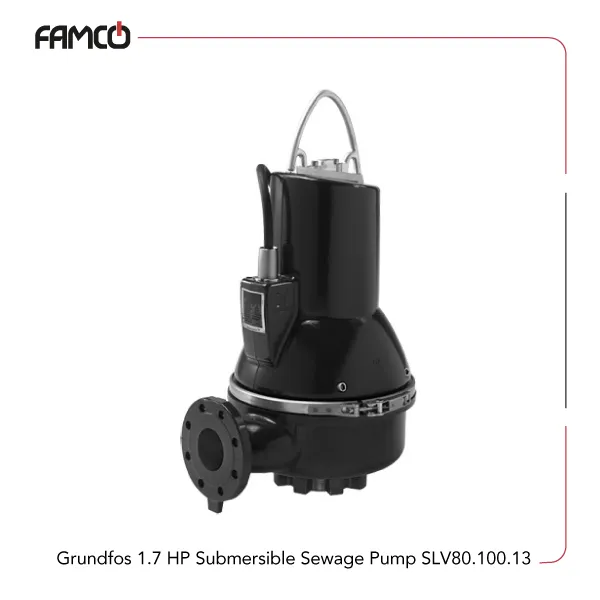

Grundfos 1.7 HP Submersible Sewage Pump SLV.80.100.13 Specifications
This pump operates on a three-phase power supply with a power output of 1.3 kW, equivalent to 1.7 HP. It features four poles and runs at a speed of 1460 rpm, making it suitable for various industrial applications. The pump can handle a maximum breakdown torque of 40 Nm, ensuring reliable performance under heavy loads. It is designed to work with liquids up to 40°C, making this SLV series Grundfos sewage pump ideal for processing warm fluids. The insulation class is H, providing high safety and durability standards. The pump’s impeller is of the SuperVortex type, which efficiently handles solids up to 80 mm in size without clogging. Its pH tolerance ranges from 4 to 14, allowing it to operate in a wide variety of chemical environments. Overall, this Grundfos submersible pumps collection is not only suitable for applications of varying loads, but its models outperform similar pumps. They suit your tasks if you want a wastewater pump handling liquids with solids and varying pH levels in demanding industrial settings.
| Specification | Value |
| Voltage | three-phase |
| Power (kW) | 1.3 |
| Power (HP) | 1.7 |
| Number of poles | 4 |
| Speed (rpm) | 1460 |
| Breakdown torque M max (Nm) | 40 |
| Max. liquid temperature (°C) | 40 |
| Pump insulation class | H |
| Max. solids size (mm) | 80 |
| Impeller type | SuperVortex |
| pH range | 4-14 |
Grundfos 1.7 HP Submersible Sewage Pump SLV.80.100.13 Performance Data
Grundfos 1.7 HP Submersible Sewage Pump SLV.80.100.13 Applications
- Wastewater treatment plants
- Chemical processing industries
- Handling of dirty or solids-laden liquids
- Industrial fluid transfer
Grundfos 1.7 HP Submersible Sewage Pump SLV.80.100.13 Benefits
- Handles solids up to 80 mm efficiently
- Suitable for a wide pH range (4-14)
- High durability with insulation class H
- Reliable performance at 1460 rpm
Grundfos 1.7 HP Submersible Sewage Pump SLV.80.100.13 Price List
| No. | Name | Price |
| 1 | Grundfos 1.7 HP Submersible Sewage Pump SLV.80.100.13 Price | Contact us |
