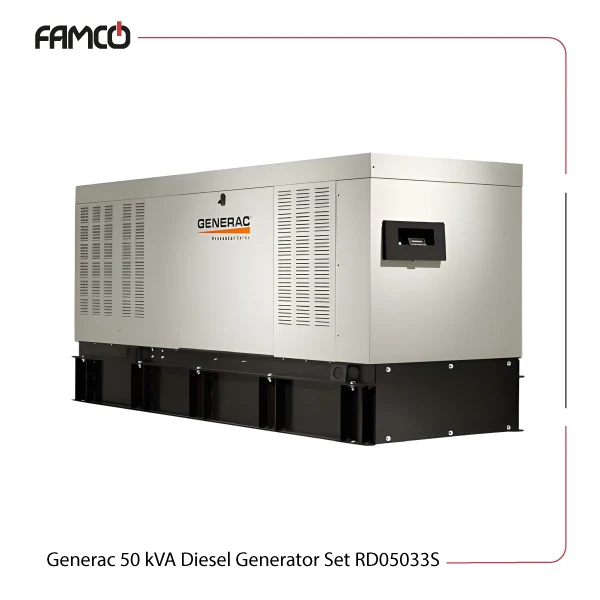

Generac 50 kVA Diesel Generator Set RD05033S

50 kVA Standby power

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Generac 50 kVA Diesel Generator Set RD05033S

This 50 kVA generator is designed for heavy-duty use, operating in both single-phase and three-phase power options. It is ideal for industrial, construction, and backup power needs. The engine’s synchronous design ensures stable power output, while the fuel efficiency cuts down on operational costs. The generator’s size and almost 1 ton weight are balanced for durability and portability, with sound levels kept within acceptable limits for outdoor use. It provides a reliable power supply with a focus on efficiency and environmental friendliness, thanks to its ultra-low sulfur diesel fuel compatibility.

Related Products

Generac 50 kVA Diesel Generator Set RD05033S Specifications

This generator features a versatile power output suitable for both single-phase and three-phase applications. It operates on ultra-low sulfur diesel fuel, with cleaner emissions. The Generac genset’s engine is a synchronous type with four cylinders and a displacement of 2.5 liters, providing reliable performance. This Generac diesel generator set has a maximum ambient temperature tolerance of 50°C. The system coolant capacity is 11.4 liters, supporting continuous operation. Fuel consumption varies with load, consuming 7.66 liters per hour at half load and 15.22 liters at full load. The generator’s weight is 1102 kg, with dimensions varying based on the tank size; they’re 241*89*145 cm for the 57-gallon tank and 241*89*168 cm for the 132-gallon tank. Noise levels are moderate, with 65 dB(A) during exercise mode and 70 dB(A) at normal operation, measured at 7 meters distance.

Generac 50 kVA Diesel Generator Set RD05033S



Specification Value
Single-phase voltage (V) 110/240
Single-phase power factor 1
Three-phase voltage (V) 120/208, 120/240, 277/480
Three-phase power factor 0.8
Single-phase standby power (kVA) 48
Three-phase standby power (kVA) 50
Fuel consumption at 50% load (l/h) 7.66
Fuel consumption at 100% load (l/h) 15.22
System coolant capacity (l) 11.4
Max. ambient temperature (°C) 50
Sound output at 7 m in exercise mode (dB(A)) 65
Sound output at 7 m in normal mode (dB(A)) 70
Engine Synchronous
Engine cylinders 4
Displacement (l) 2.5
Stroke (mm) 103
Fuel type Ultra low sulfur diesel



Generac 50 kVA Diesel Generator Set RD05033S Dimensions and Weight

Weight (kg) 1102
Dimensions (L*W*H) 241*89*145 cm (57-gallon tank)
241*89*168 cm (132-gallon tank)



Generac 50 kVA Diesel Generator Set RD05033S Applications

  • Industrial power backup
  • Construction site power supply
  • Emergency power for facilities
  • Remote location power generation



Generac 50 kVA Diesel Generator Set RD05033S Benefits

  • Reliable power output for various applications
  • Fuel-efficient operation reduces costs
  • Durable design for harsh environments
  • Low noise levels for outdoor use



Generac 50 kVA Diesel Generator Set RD05033S Price List

No. Name Price
1 Generac 50 kVA Diesel Generator Set RD05033S Price Contact us
Brand

Voltage (V)

, , ,

Standby power (kVA)

Fuel

Maximum Ambient Temperature (°C)

Engine Displacement (L)

Weight (kg)
