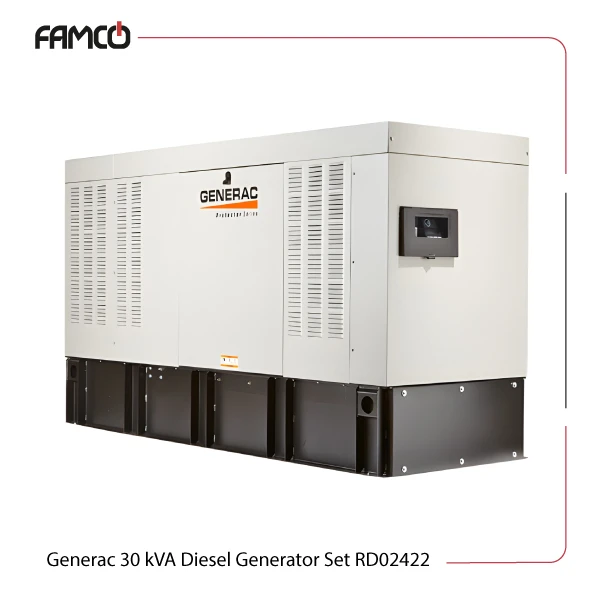

Generac 30 kVA Diesel Generator Set RD02422

30 kVA Standby power

Reviews
  • Quality Guarantee
  • Technical Advice
  • After Sales Service

To inquire about the price, contact the experts of Famco

Overview of Generac 30 kVA Diesel Generator Set RD02422

This 30 kVA diesel generator is a powerful Generac-manufactured powerhouse using a Perkins engine. It supports both single-phase and three-phase power outputs and syncs based on power needs. The engine is a four-cylinder inline model with a displacement of 2.216 liters, known for its durability and efficiency. It runs on ultra-low sulfur diesel, which is better for the environment and offers cleaner emissions. Tolerating high ambient temperatures up to 50°C, the generator performs well even in hotter UAE climates. It provides a standby power of 24 kVA for single-phase and 30 kVA for three-phase, suitable for backup power or continuous operation. Its fuel consumption rates are efficient, with 5.19 liters per hour at half load and 10.49 liters at full load. The cooling system holds 9.5 liters of coolant, helping keep optimal engine temperature. Noise levels are moderate, with 65 dB(A) in exercise mode and 70 dB(A) during normal operation at 7 meters. Its sturdy construction and dimensions make it suitable for various demanding environments, providing dependable power when needed most.

Related Products

Generac 30 kVA Diesel Generator Set RD02422 Specifications

This Generac generator features a versatile power output suitable for both single-phase and three-phase applications. It operates on ultra-low sulfur diesel, ensuring cleaner emissions and better fuel efficiency. The engine, made by Perkins, is an inline four-cylinder model with a displacement of 2.216 liters and a stroke of 100 mm. It provides reliable performance with a maximum ambient temperature tolerance of 50°C. The generator’s standby power capacity is 24 kVA for single-phase and 30 kVA for three-phase setups, making it ideal for various industrial and commercial uses. Fuel consumption of this Generac diesel generator set varies with load, consuming approximately 5.19 liters per hour at half load and up to 10.49 liters at full load. The system coolant capacity is 9.5 liters, ensuring proper engine cooling during operation. It produces a sound level of 65 dB(A) in exercise mode and 70 dB(A) during normal operation at 7 meters distance. The generator weighs 783 kg and measures 195 cm in length, 89 cm in width, and 147 cm in height, so it remains forceful and manageable in demanding environments.



Generac 30 kVA Diesel Generator Set RD02422



Specification Value
single-phase voltage (V) 110/240
single-phase power factor 1
three-phase voltage (V) 231/400
three-phase power factor 0.8
single-phase standby power (kVA) 24
three-phase standby power (kVA) 30
fuel consumption at 50% load (l/h) 5.19
fuel consumption at 100% load (l/h) 10.49
system coolant capacity (l) 9.5
max. ambient temperature (°C) 50
sound output at 7 m (dB(A)) in exercise mode 65
in normal mode 70
engine make Perkins
engine model in-line
engine cylinders 4
displacement (l) 2.216
stroke (mm) 100
fuel type ultra low sulfur diesel



Generac 30 kVA Diesel Generator Set RD02422 Measurements and Weight

weight (kg) 783
dimensions (L*W*H) 195*89*147 cm



Generac 30 kVA Diesel Generator Set RD02422 Applications

  • Backup power for industrial facilities
  • Construction site power supply
  • Emergency power for hospitals
  • Event and outdoor venue power



Generac 30 kVA Diesel Generator Set RD02422 Benefits

  • Reliable performance in hot climates
  • Versatile power options for different needs
  • Efficient fuel consumption
  • Durable construction with high-quality Perkins engine



Generac 30 kVA Diesel Generator Set RD02422 Price List

No. Name Price
1 Generac 30 kVA Diesel Generator Set RD02422 Price Contact us
Brand

Voltage (V)

Power Factor

,

Standby power (kVA)

,

Maximum Ambient Temperature (°C)

Engine Displacement (L)

Weight (kg)

Country
